Diagnostic Procedure 8
Inspecting SRS intermittent malfunction by using CONSULT-II - Diagnosis mode1. Turn ignition switch "OFF".

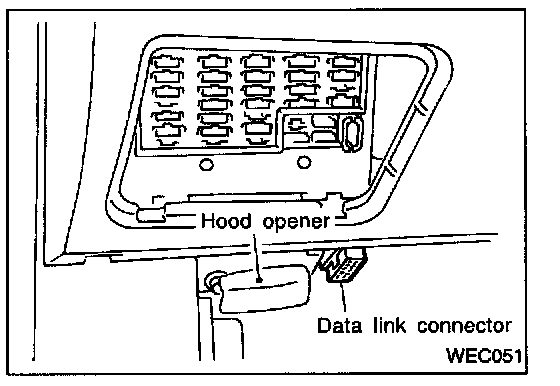

2. Connect "CONSULT-II" to Data link connector.
3. Turn ignition switch "ON".

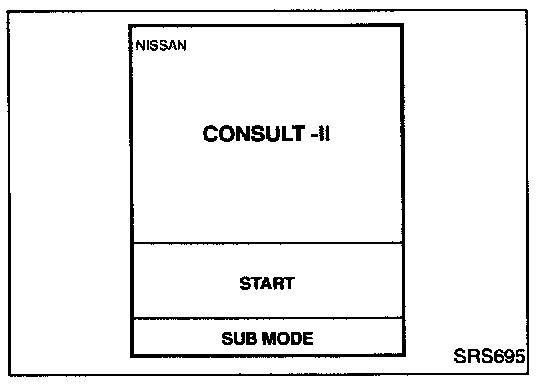

4. Touch "START".

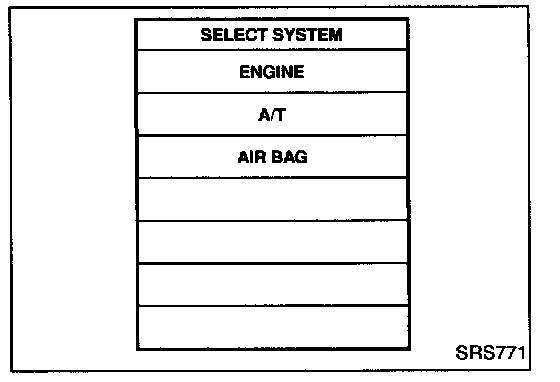

5. Touch "AIR BAG".

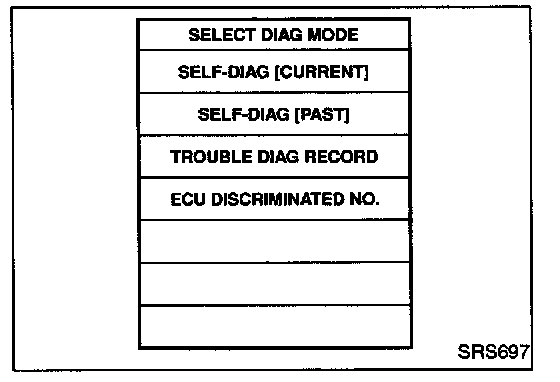

6. Touch "SELF-DIAG [PAST]".

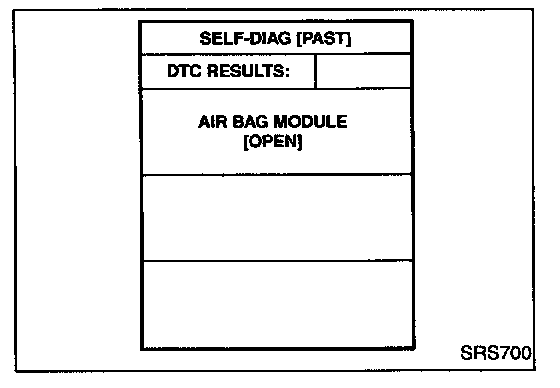

7. If diagnostic codes are displayed on "SELF-DIAG [PAST]", go to step 10.

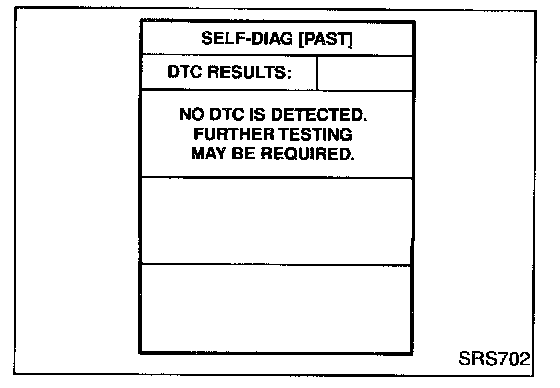

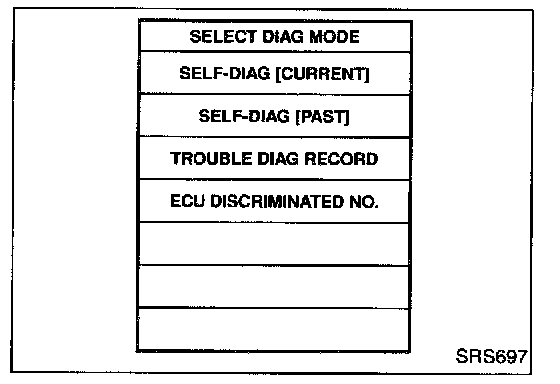

If no malfunction is detected on "SELF-DIAG [PAST]", touch "BACK" and go back to "SELECT DIAG MODE".
8. Touch "TROUBLE DIAG RECORD".
NOTE: With TROUBLE DIAG RECORD, diagnosis results previously erased by a reset operation can be displayed.

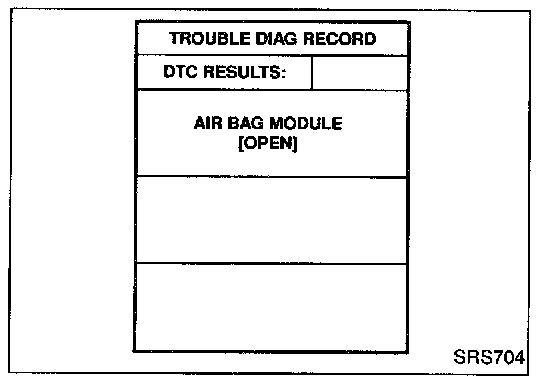

9. Diagnostic code is displayed on "TROUBLE DIAG RECORD".
10. Touch "PRINT".
11. Compare diagnostic codes to the INTERMITTENT MALFUNCTION DIAGNOSTIC CODE CHART. Refer to "INTERMITTENT MALFUNCTION DIAGNOSTIC CODE CHART (SELF-DIAG [PAST] or TROUBLE DIAG RECORD)".
12. Touch "BACK" key of CONSULT-II until SELECT SYSTEM appears, then turn off CONSULT-II.
13. Turn ignition switch "OFF", then turn off and disconnect CONSULT-II and both battery cables.
14. Repair the system as outlined by the "Repair order" in INTERMITTENT MALFUNCTION DIAGNOSTIC CODE CHART that corresponds to the self-diagnostic result. For replacement procedure of component parts, refer to "Removal and Installation - Diagnosis Sensor Unit, Seat Belt Pre-tensioner and Satellite Sensor".
15. Go to "DIAGNOSTIC PROCEDURE 4" for final checking.
