Diagnostic Procedure 4
Final checking after repairing SRS by using CONSULT-II - Diagnosis mode1. After repairing SRS, connect both battery cables.

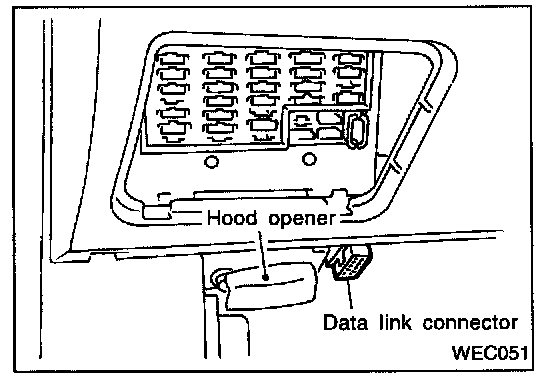

2. Connect CONSULT-II to Data link connector.
3. Turn ignition switch from "OFF" to "ON".

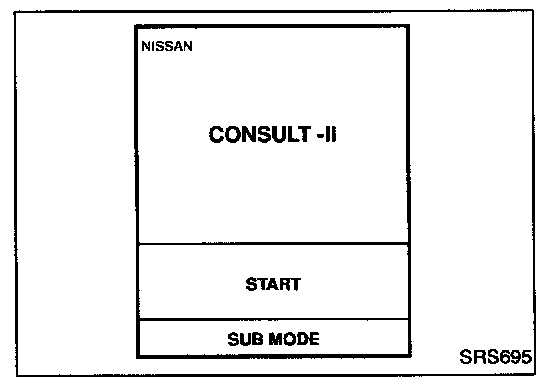

4. Touch "START".

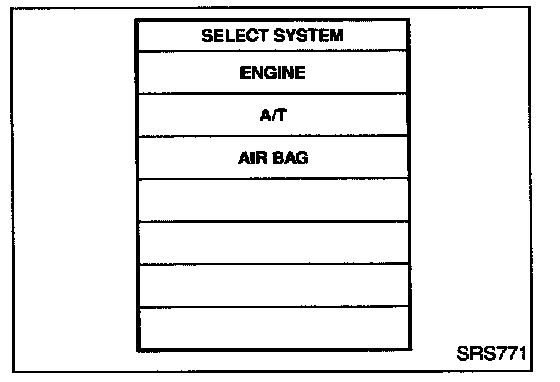

5. Touch "AIR BAG".

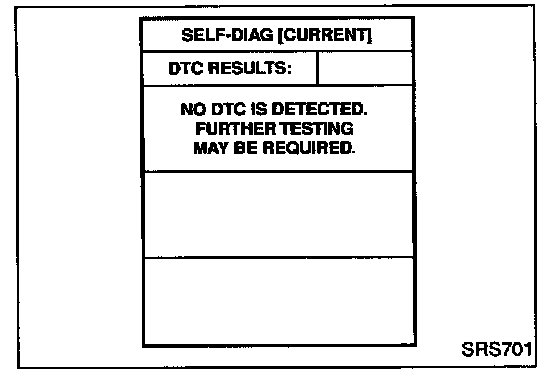

6. Touch "SELF-DIAG [CURRENT]".
7. If no malfunction is detected on "SELF-DIAG [CURRENT]", repair of SRS is completed.

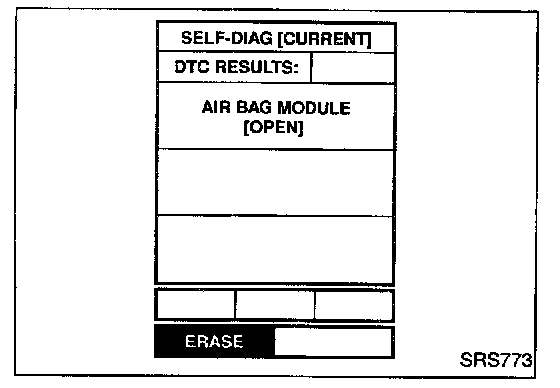

If any malfunction is detected on "SELF-DIAG [CURRENT]", the malfunctioning part is not repaired completely or another malfunctioning part is detected. Go to DIAGNOSTIC PROCEDURE 2 and repair malfunctioning part completely.
8. Touch "ERASE".
NOTE: Touch "ERASE" to clear the memory of the malfunction ("SELF-DIAG [PAST]").
If the memory of the malfunction is "SELF-DIAG [PAST]" is not erased, the User mode shows the system malfunction by the operation of the warning lamp even if the malfunction is repaired completely.

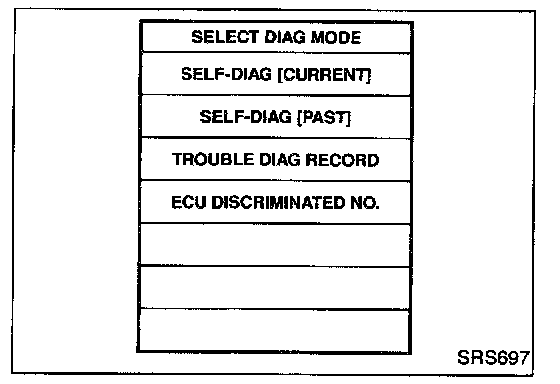

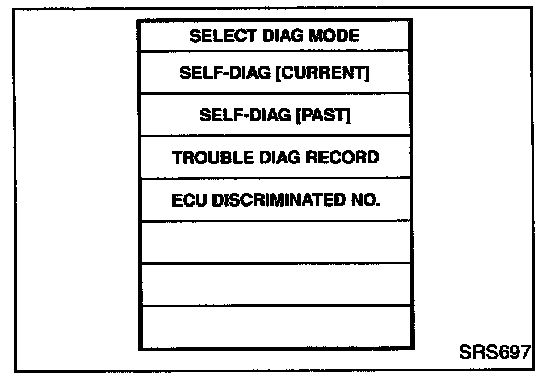

9. Touch "BACK" key of CONSULT-II to select "SELF-DIAG [PAST]" in the "SELECT DIAG MODE" screen. Touch "SELF-DIAG [PAST]".

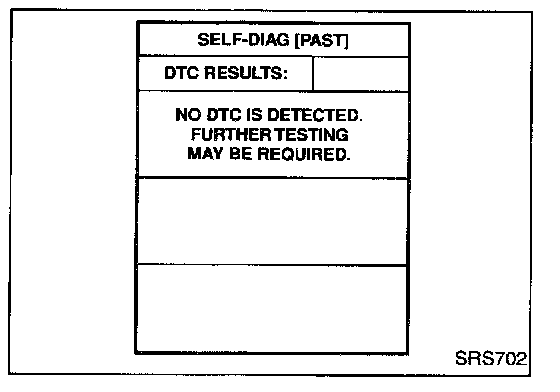

10. Check that no malfunction is detected on "SELF-DIAG [PAST]".
11. Touch "BACK" key of CONSULT-II until SELECT SYSTEM appears in order to return to User mode from Diagnosis mode, turn oft CONSULT-II, then disconnect CONSULT-II.
12. Turn ignition switch "OFF".
13. Go to DIAGNOSTIC PROCEDURE 1 to check SRS operation by using "AIR BAG" warning lamp with User mode. [1][2]Component Tests and General Diagnostics
