ABS Main Relay: Service and Repair

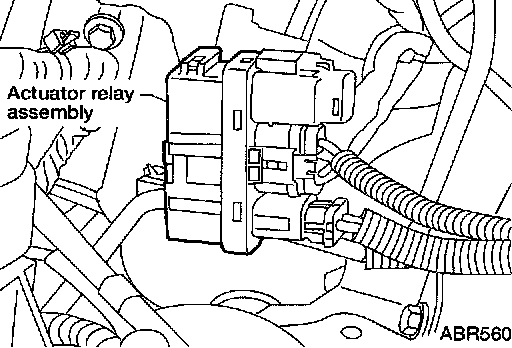

ACTUATOR RELAY ASSEMBLY
1.
Disconnect battery cable.
2.
Remove air cleaner and air duct.
3.
Disconnect relay assembly connectors.
4.
Unclip and remove relay assembly.
