Home >> Nissan-Datsun >> 2001 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Chart

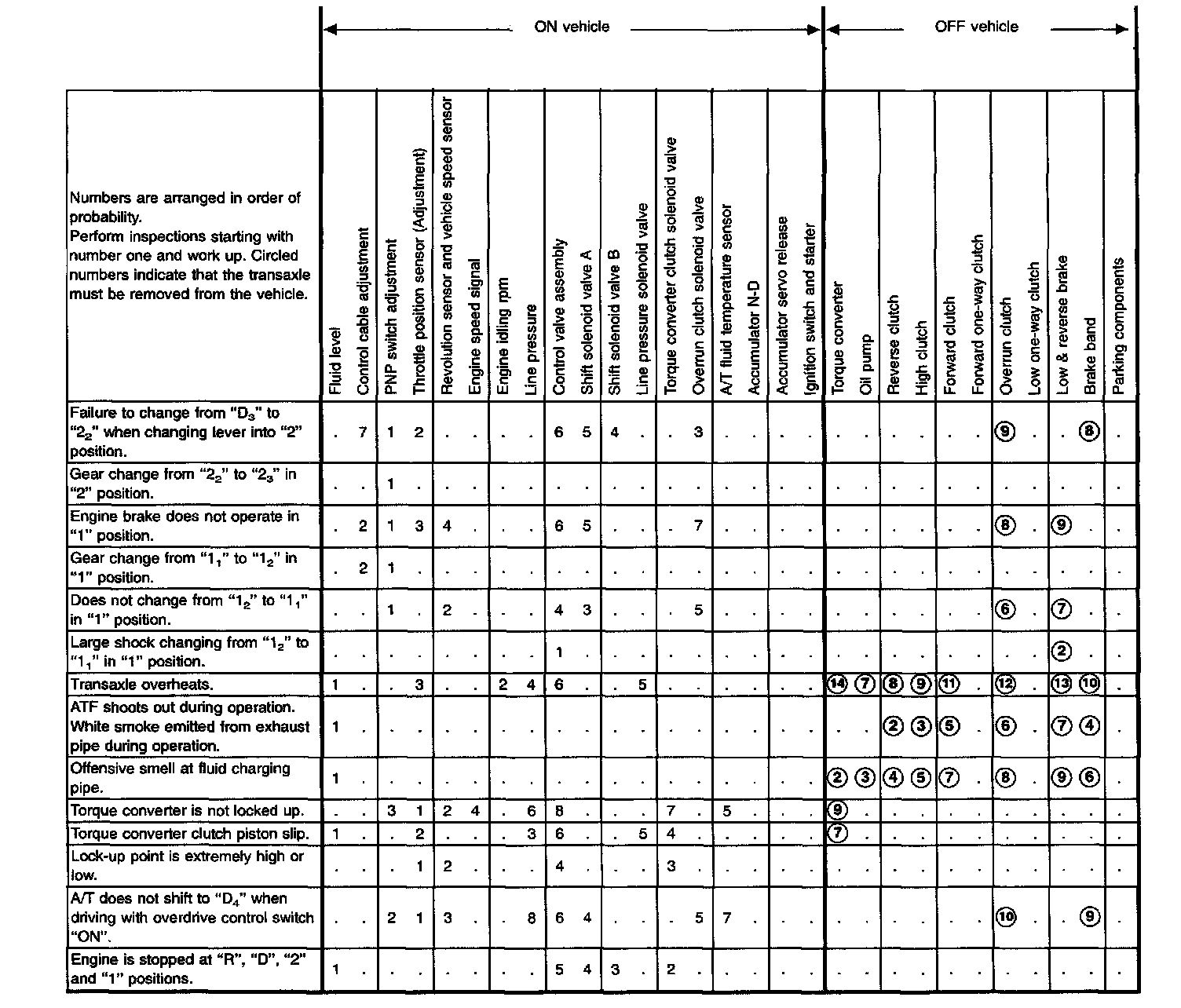

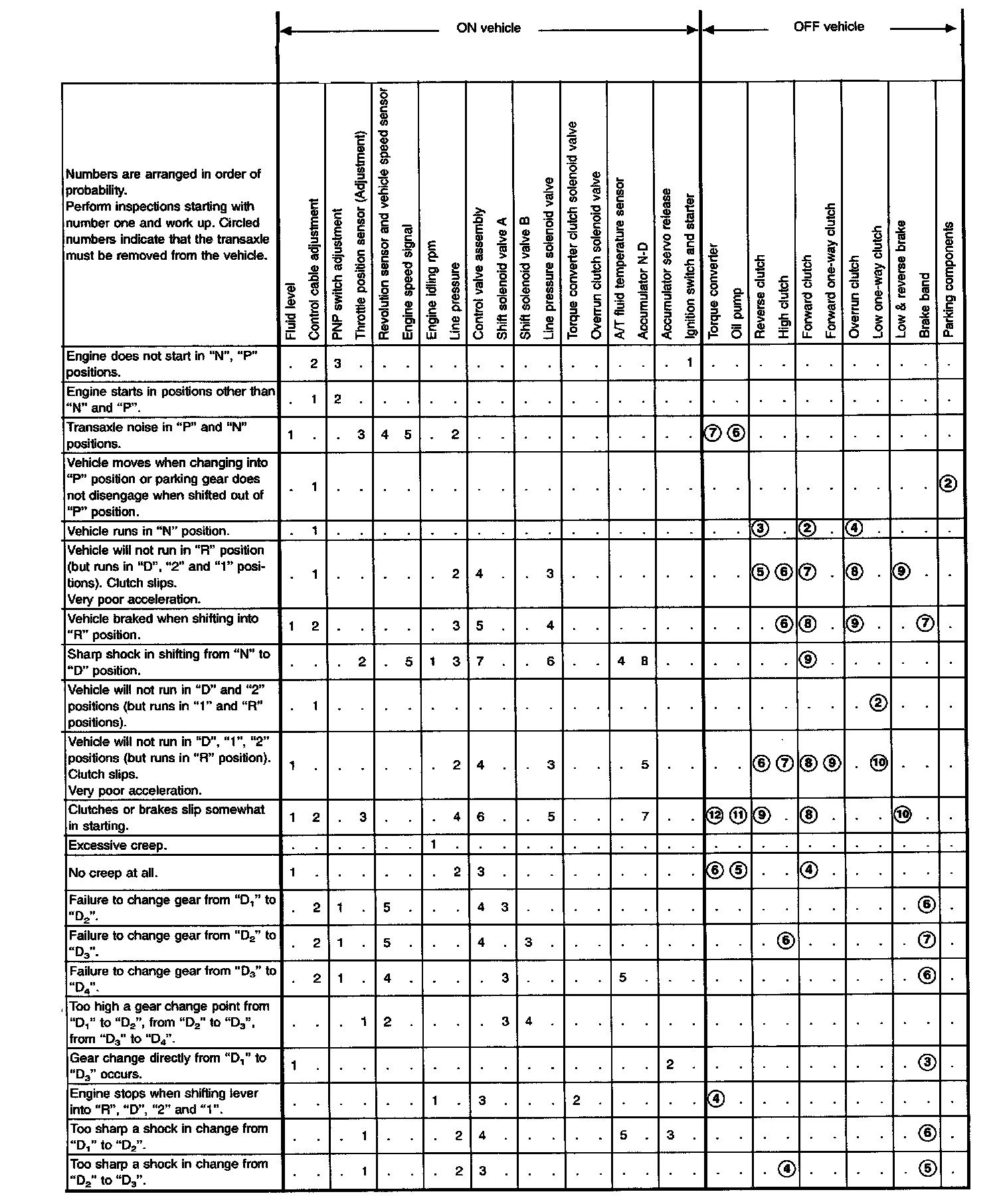

Symptom Chart

SYMPTOM CHART





1 of 3





2 of 3





3 of 3
