Main Power Supply and Ground Circuit Testing
Main Power Supply and Ground Circuit

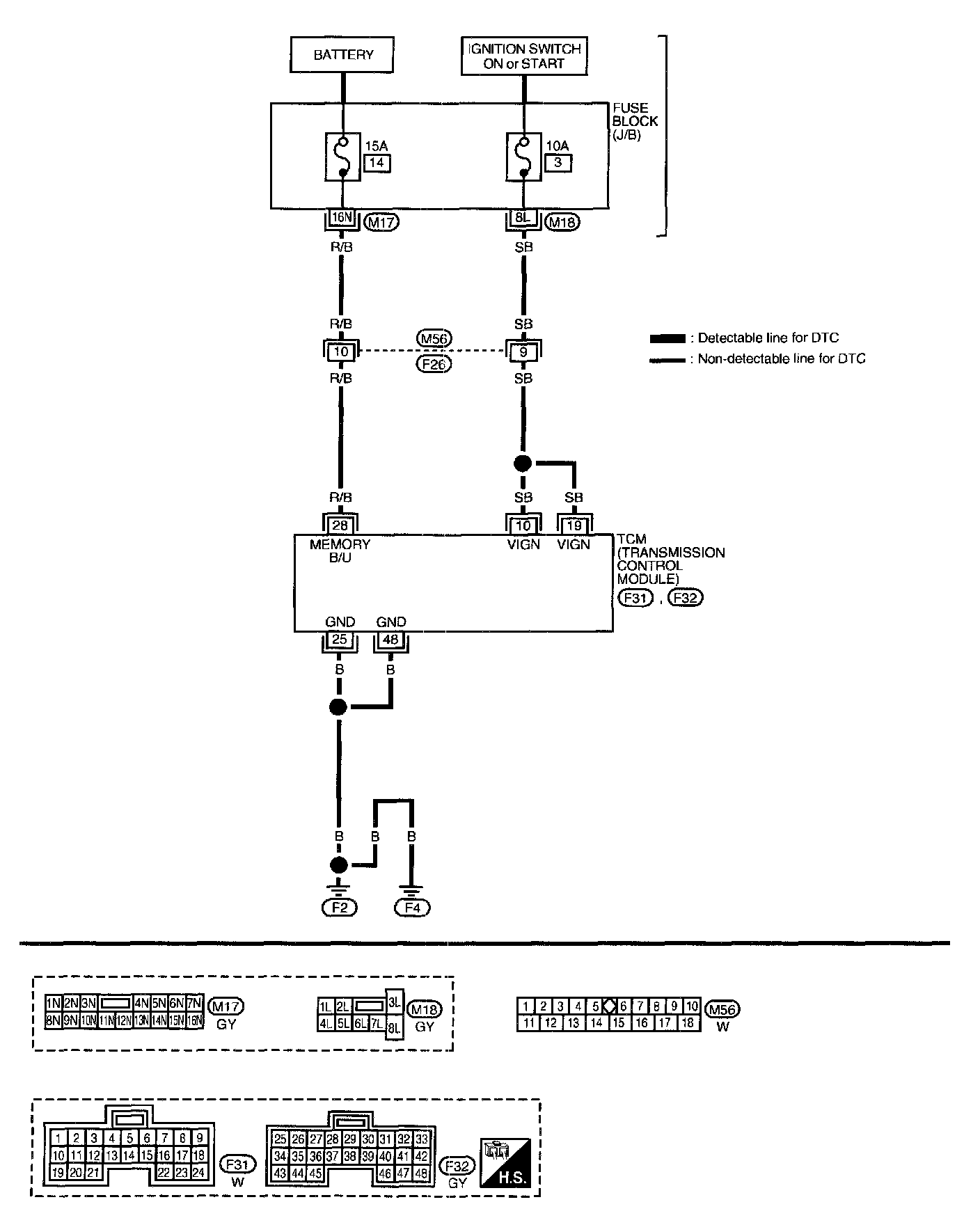

WIRING DIAGRAM - AT - MAIN
TCM

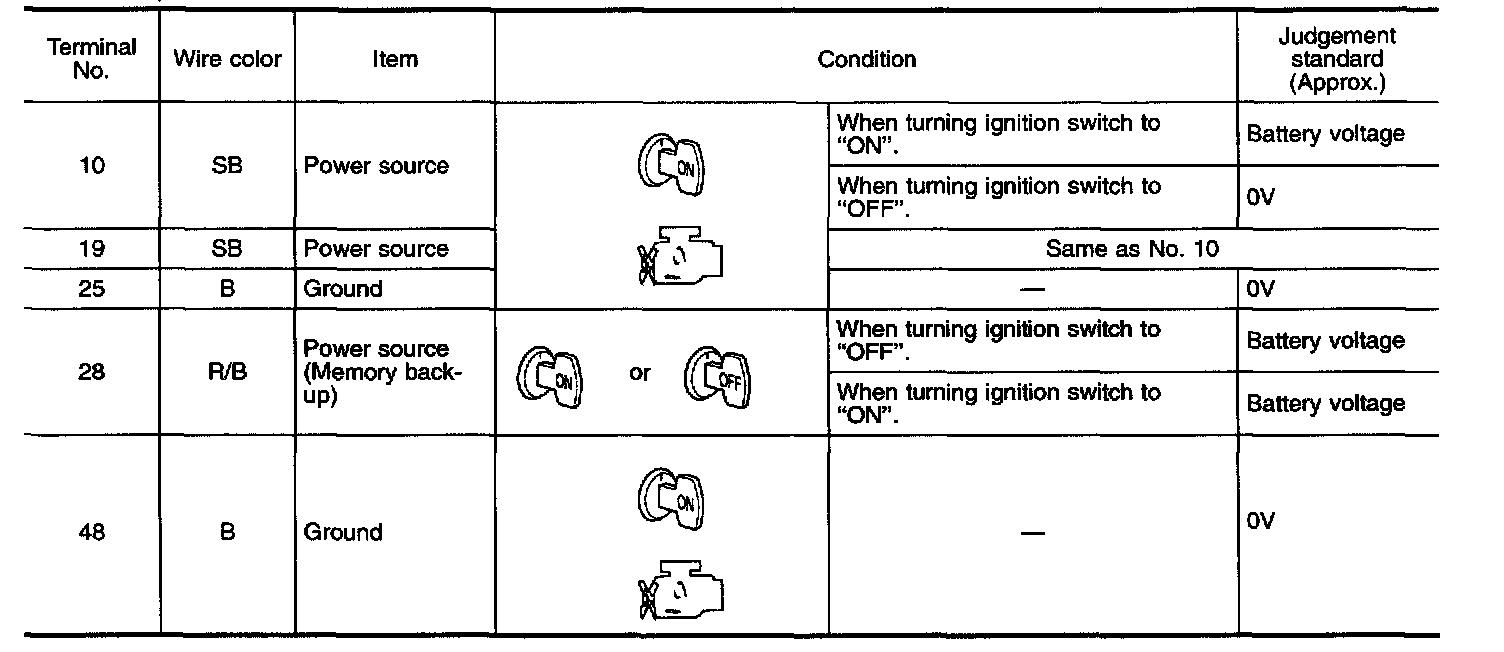

TERMINALS AND REFERENCE VALUE

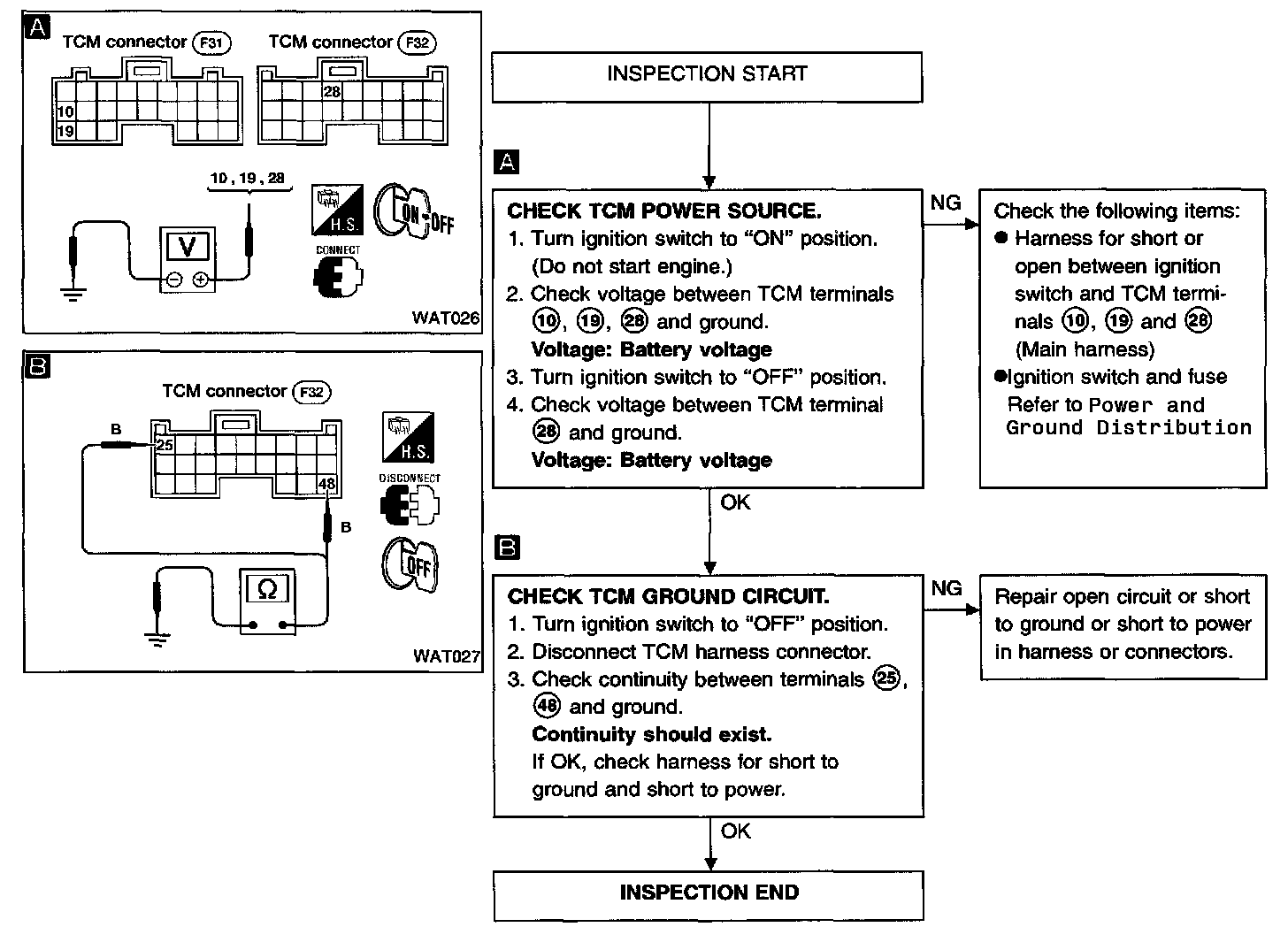

DIAGNOSTIC PROCEDURE
