Electrical Diagrams

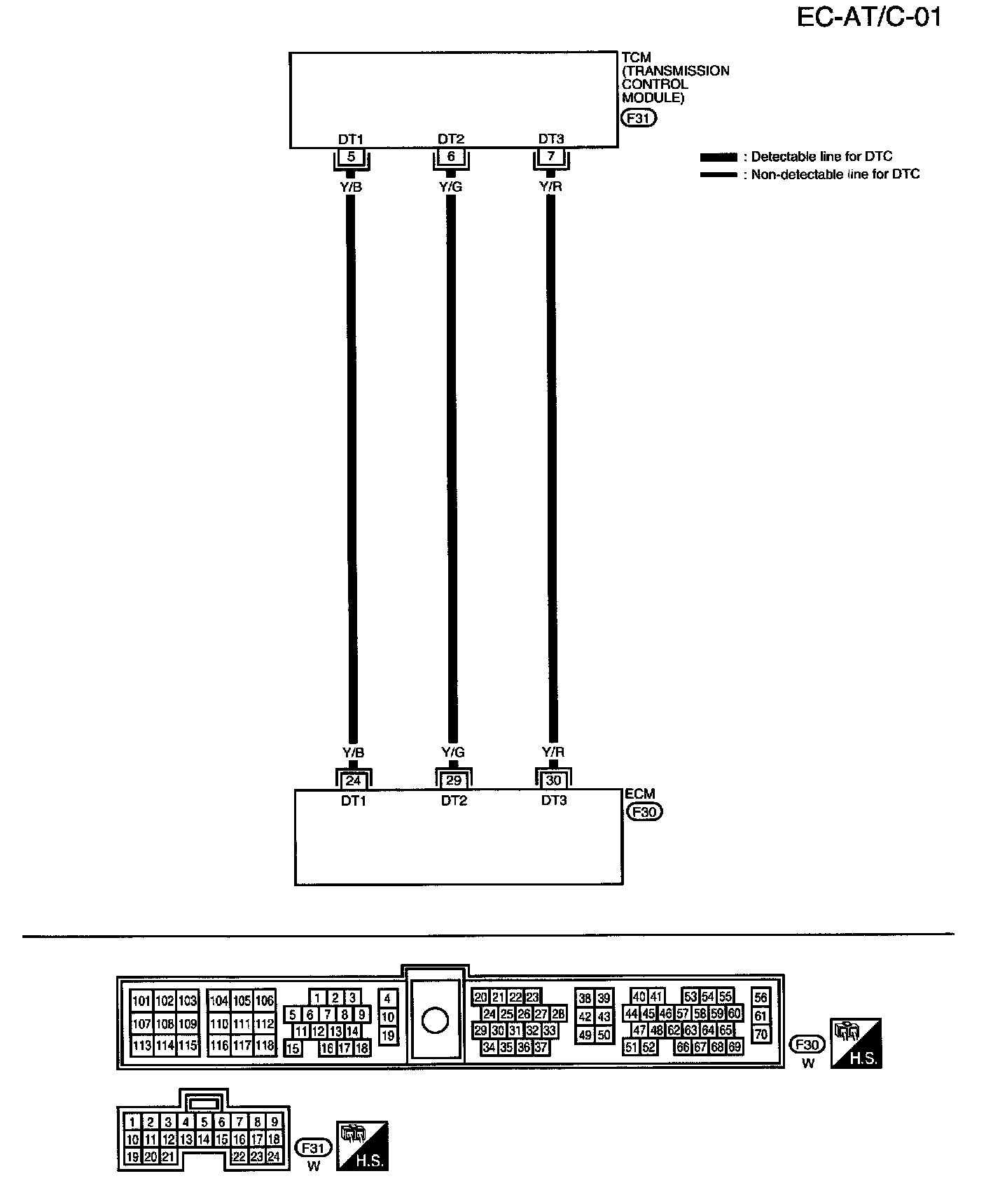

EC-AT/C-01:




P0600 A/T Control

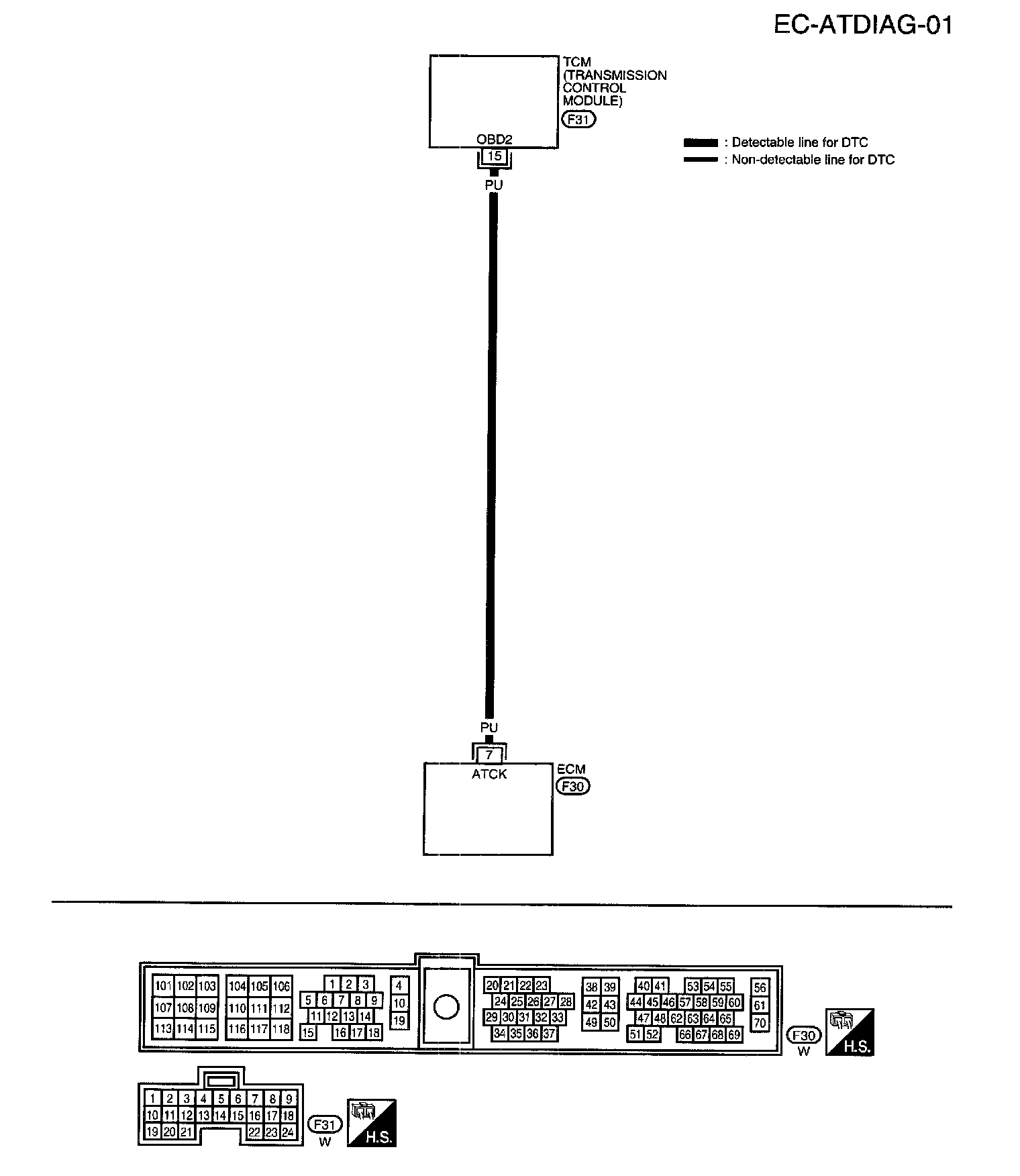

EC-ATDIAG-01:




P1605 A/T Diagnosis Communication Line
