Electrical Diagrams

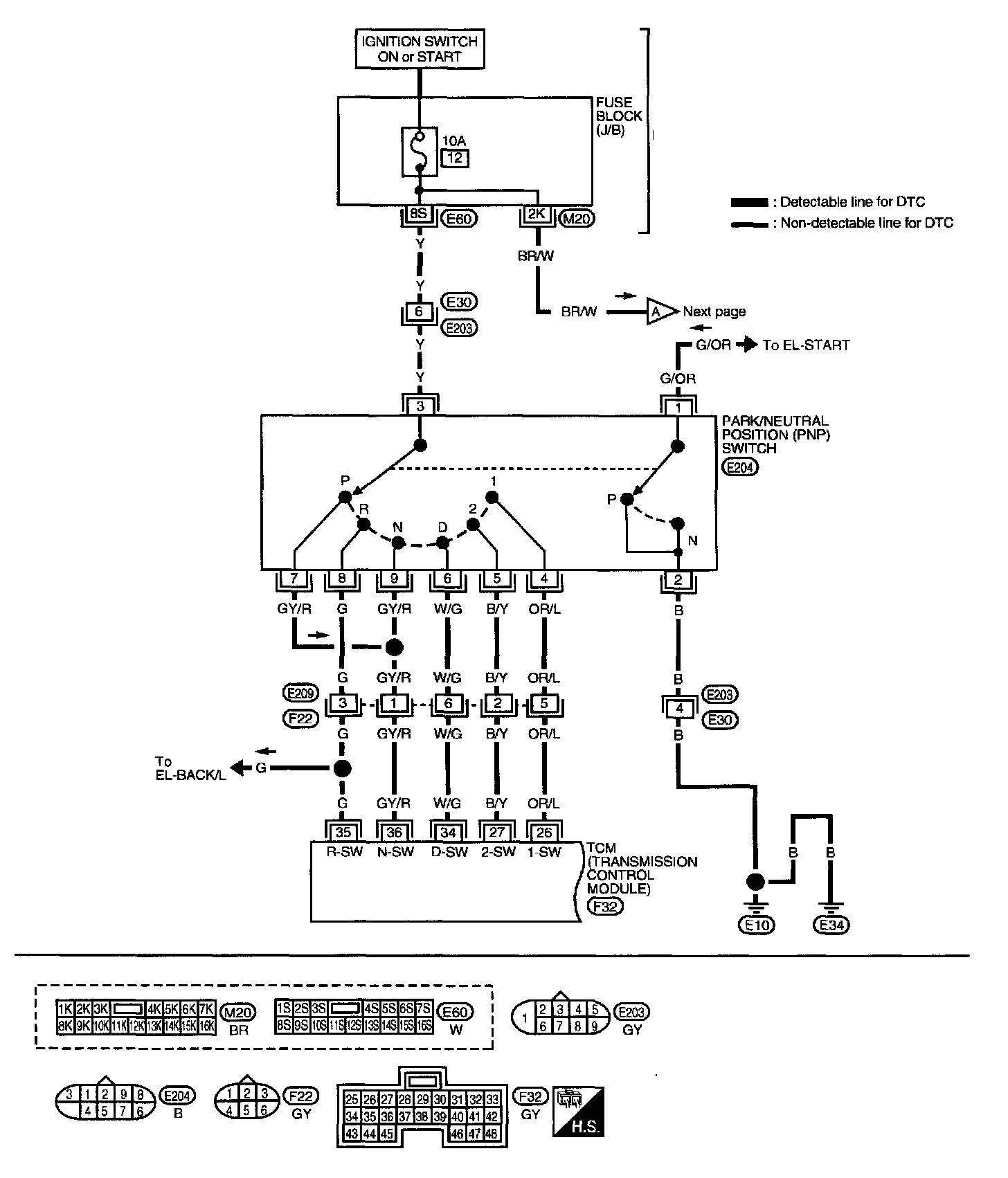

Wiring Diagram - AT - NONDTC-01

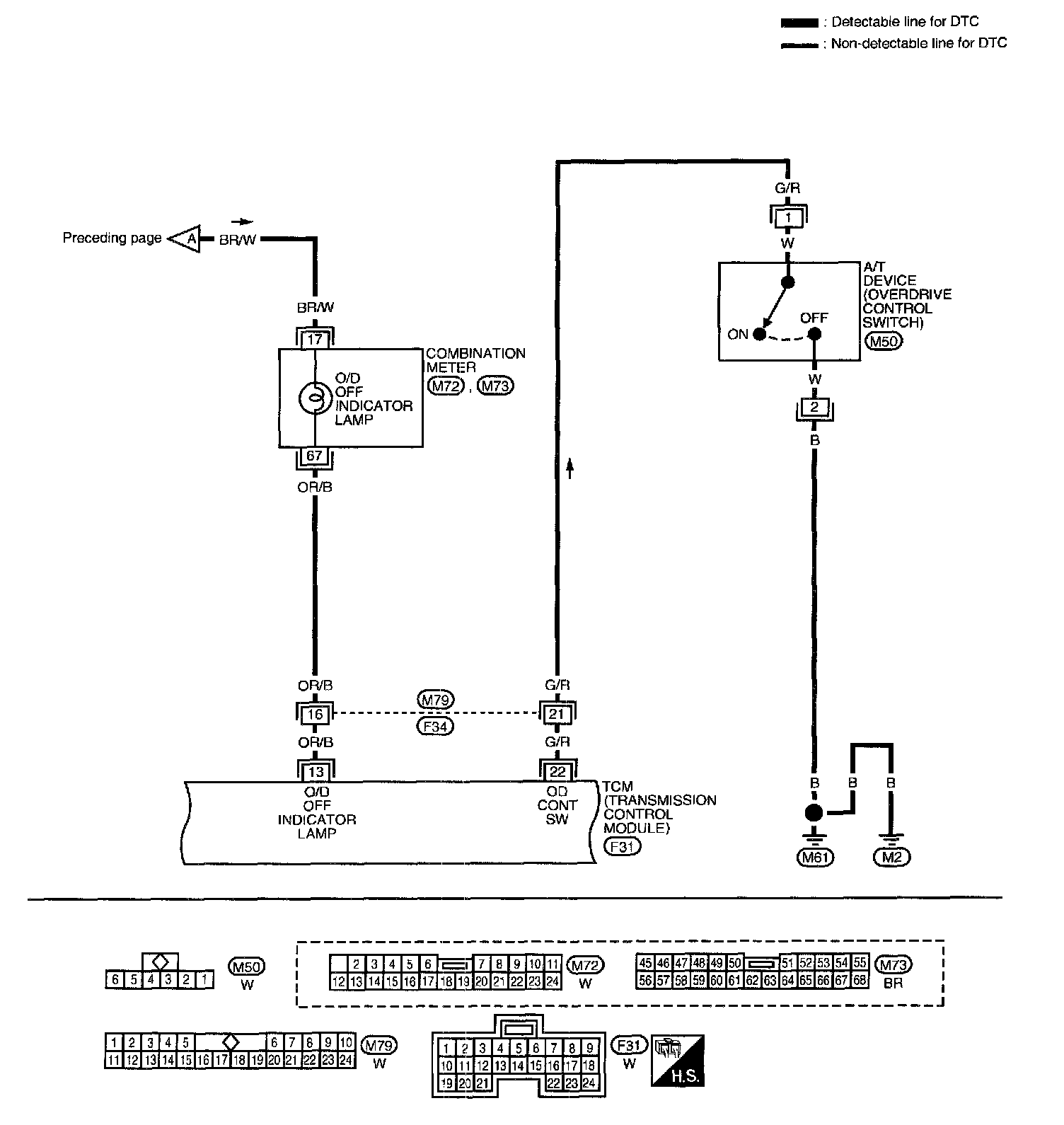

Wiring Diagram - AT - NONDTC-02
Wiring Diagram - AT - NONDTC-03
