Accelerator Pedal: Adjustments

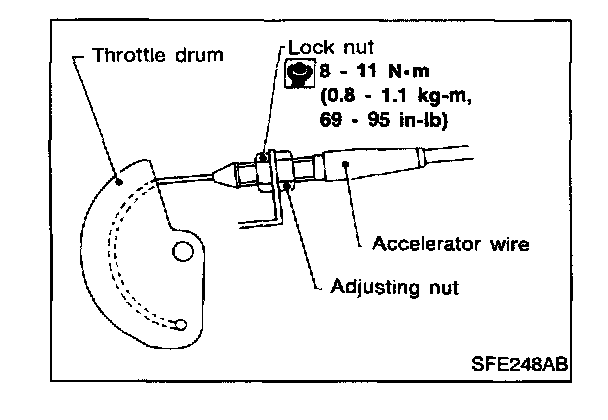

Adjusting Accelerator Wire

CAUTION:
- Make sure the ASCD wire is not pulling the throttle drum.
- For ASCD wire adjustment, refer to "AUTOMATIC SPEED CONTROL DEVICE (ASCD)".

1. Loosen lock nut and tighten adjusting nut until throttle drum starts to move.
2. From that position turn back adjusting nut 1.5 to 2 turns, and tighten lock nut.
