EGR Control Solenoid: Testing and Inspection

EGRC-solenoid valve

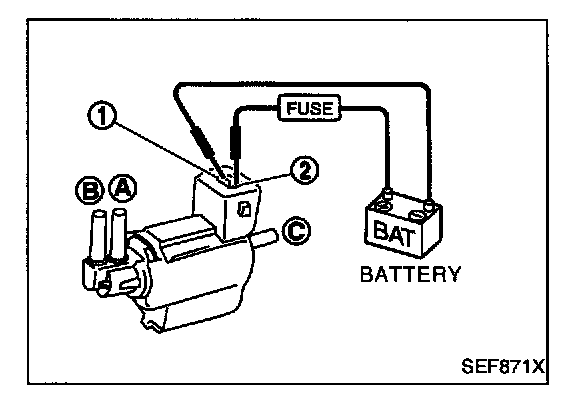

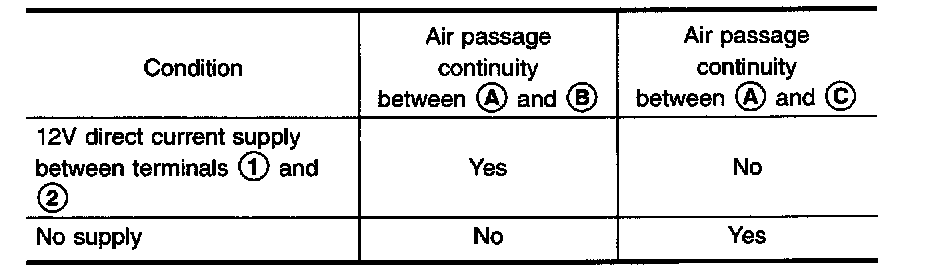

Check air passage continuity.







With Consult

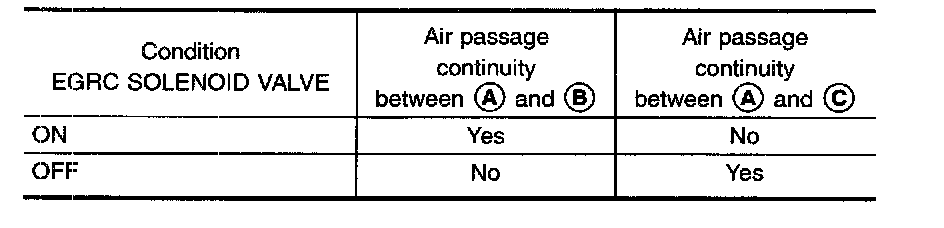

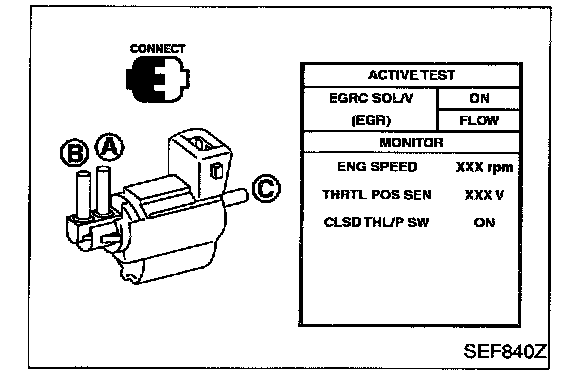

Perform "EGRC SOLENOID VALVE" in "ACTIVE TEST" mode.







Without Consult
If NG or operation takes more than 1 second, replace EGRC solenoid valve.
