EGR Backpressure Transducer: Description and Operation

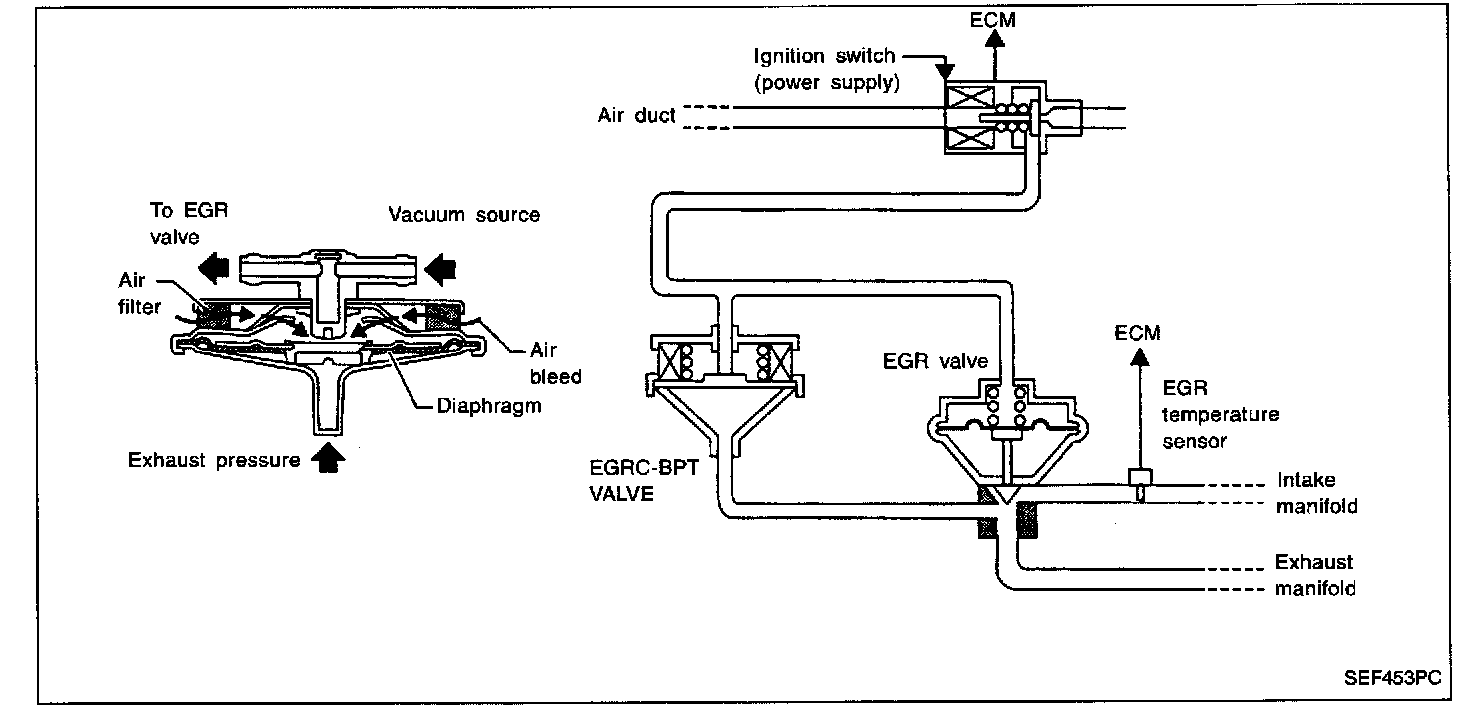

EGRC-BPT Valve Function:

SYSTEM DESCRIPTION
The EGRC-BPT valve monitors exhaust pressure to activate the diaphragm, controlling throttle body vacuum applied to the EGR valve. In other words, recirculated exhaust gas is controlled in response to positioning of the EGR valve or to engine operation.
