Inspection Procedure

1. Turn ignition switch OFF.

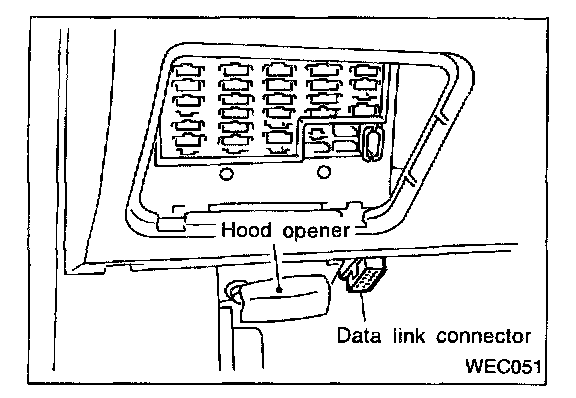

2. Connect "CONSULT-II" to data link connector which is located under LH dash panel near the fuse box cover.

3. Turn ignition switch ON.

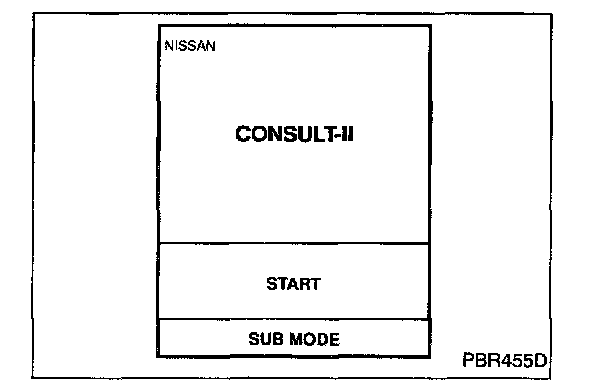

4. Touch "START".

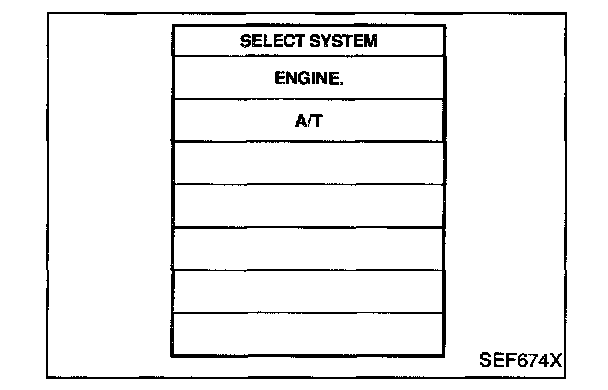

5. Touch "ENGINE".

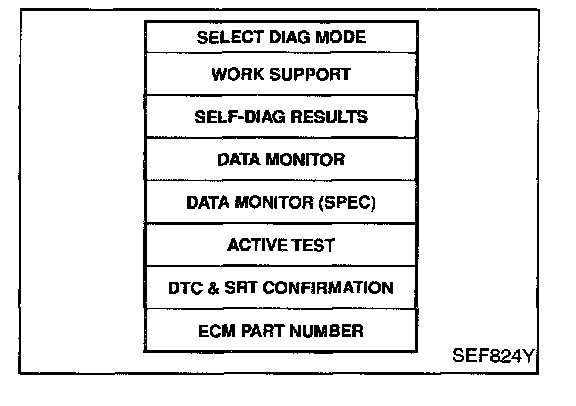

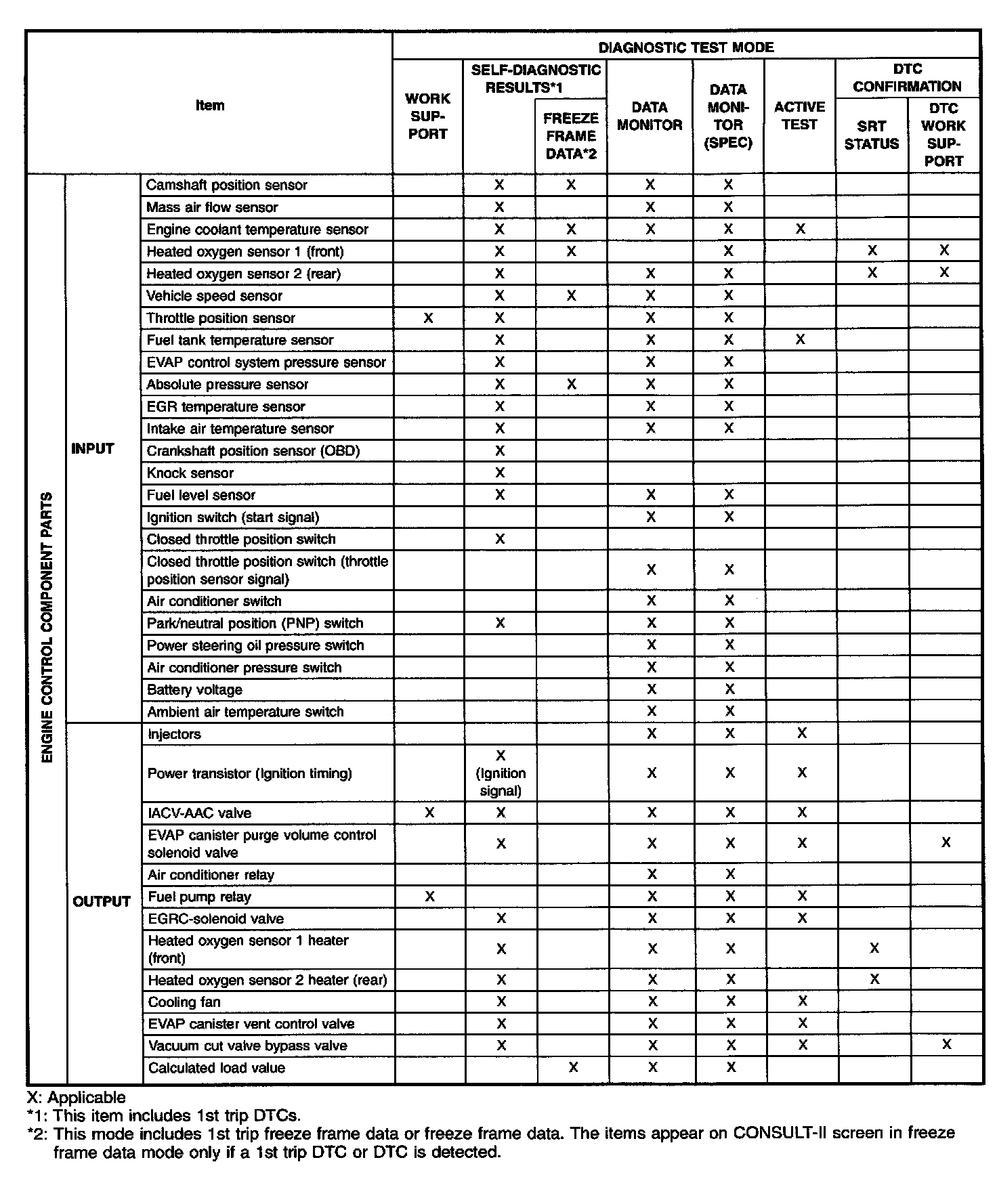

6. Perform each diagnostic test mode according to each service procedure.

For further information, see CONSULT-II.
