Power Supply Testing

Main Power Supply and Ground Circuit

EC-MAIN-01:

EC-MAIN-01 Connector View:

WIRING DIAGRAM

Super Multiple Junction (SMJ):

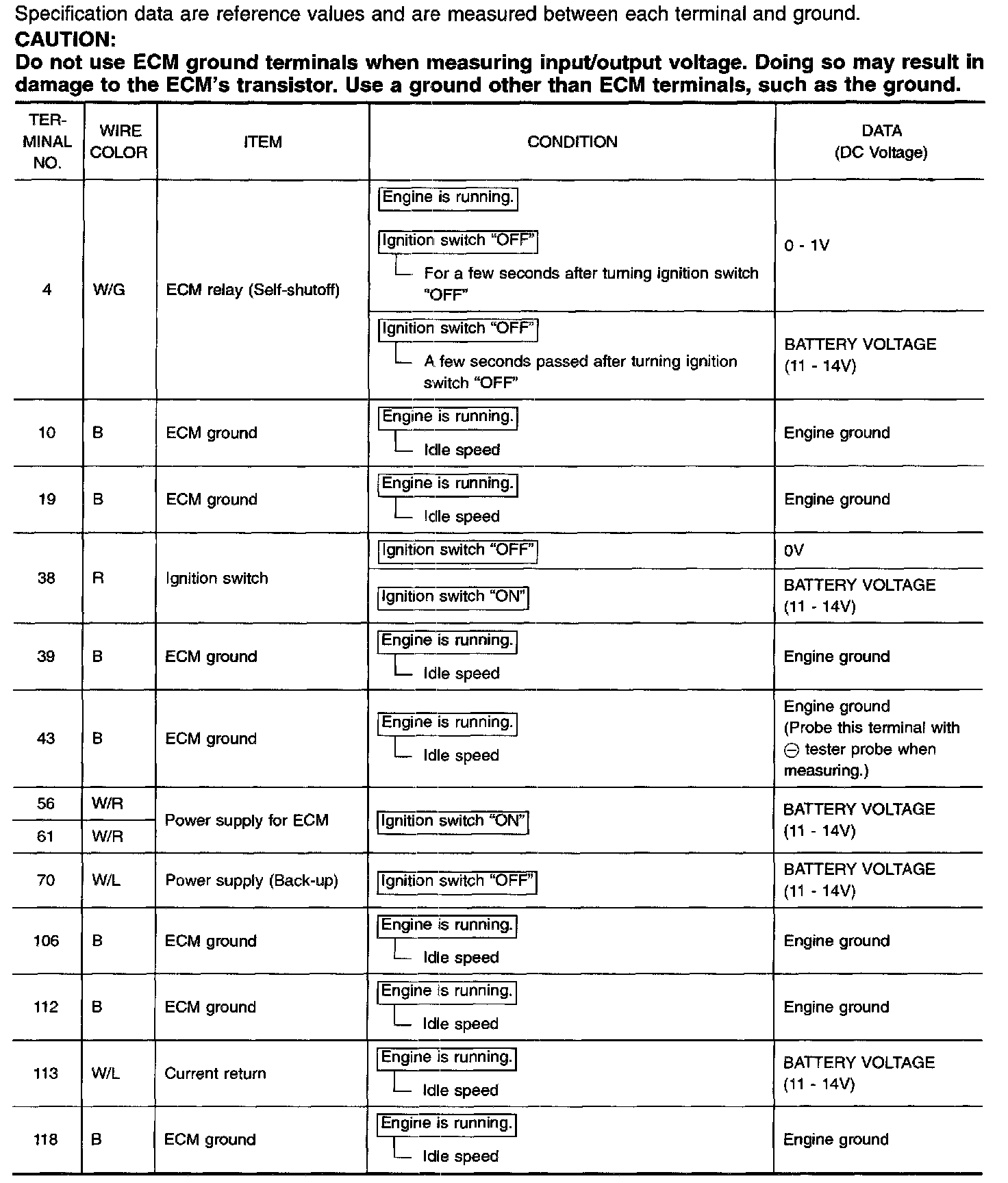

ECM Terminals And Reference Value:

Part 1:

Part 2:

Part 3:

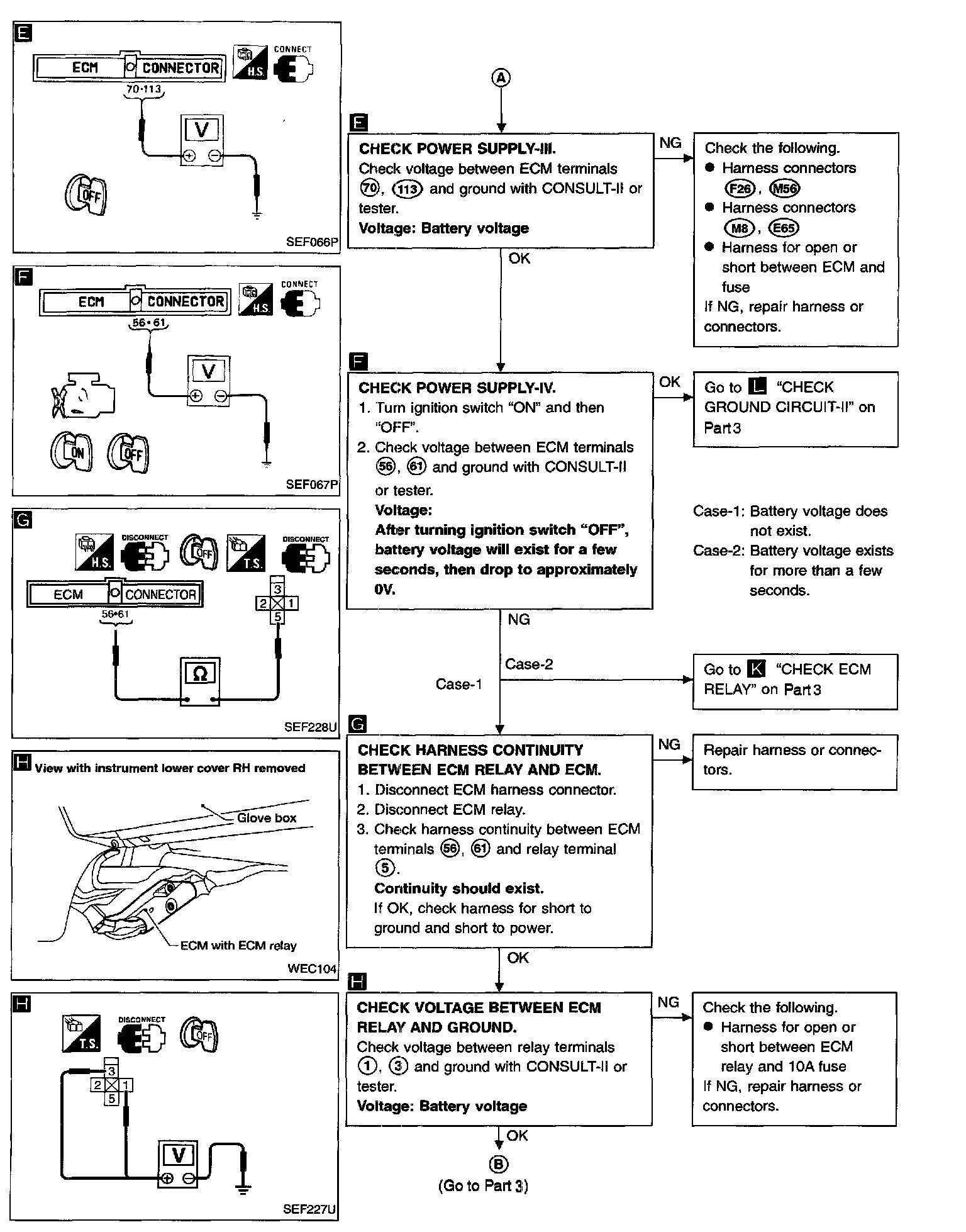

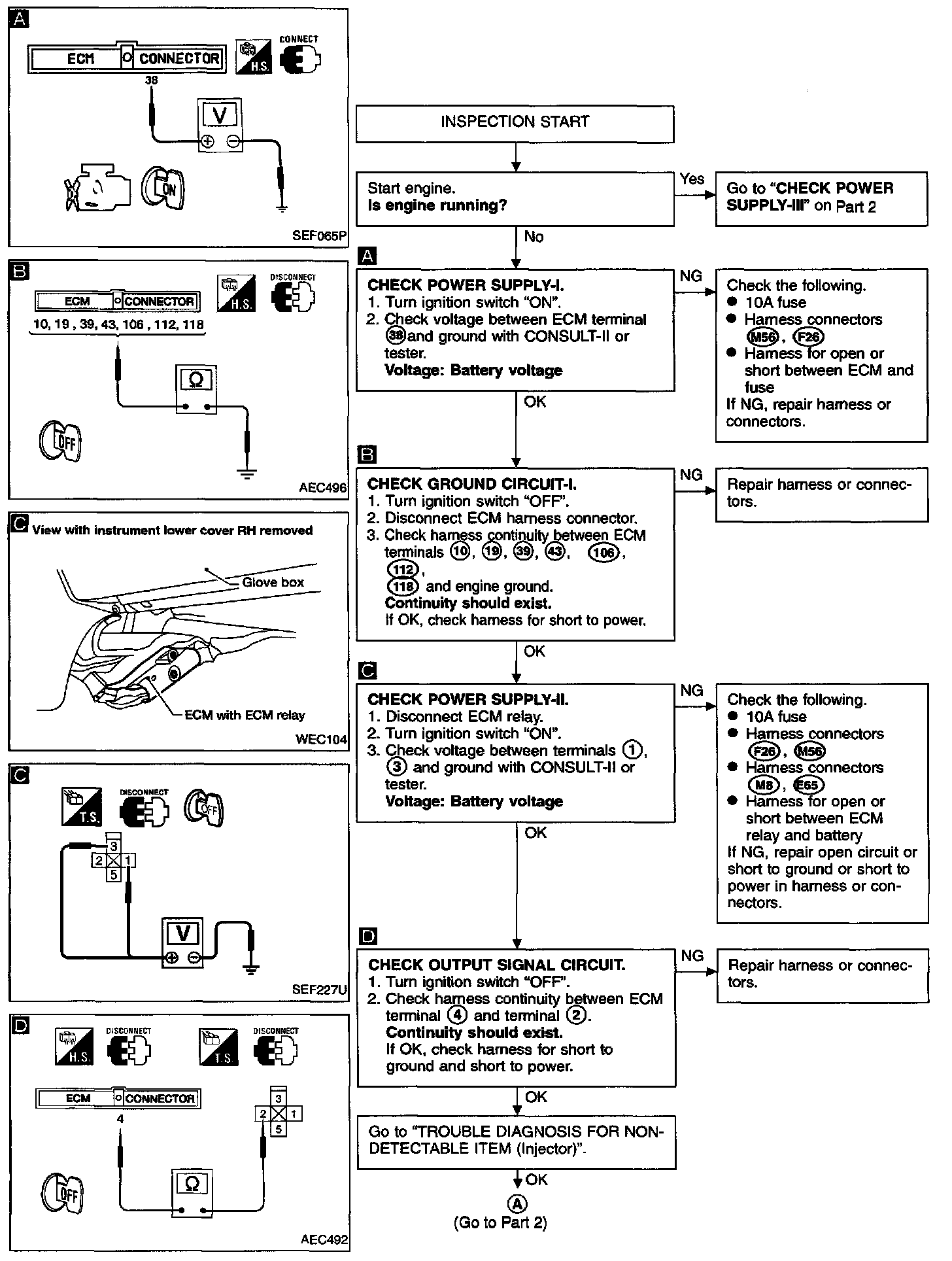

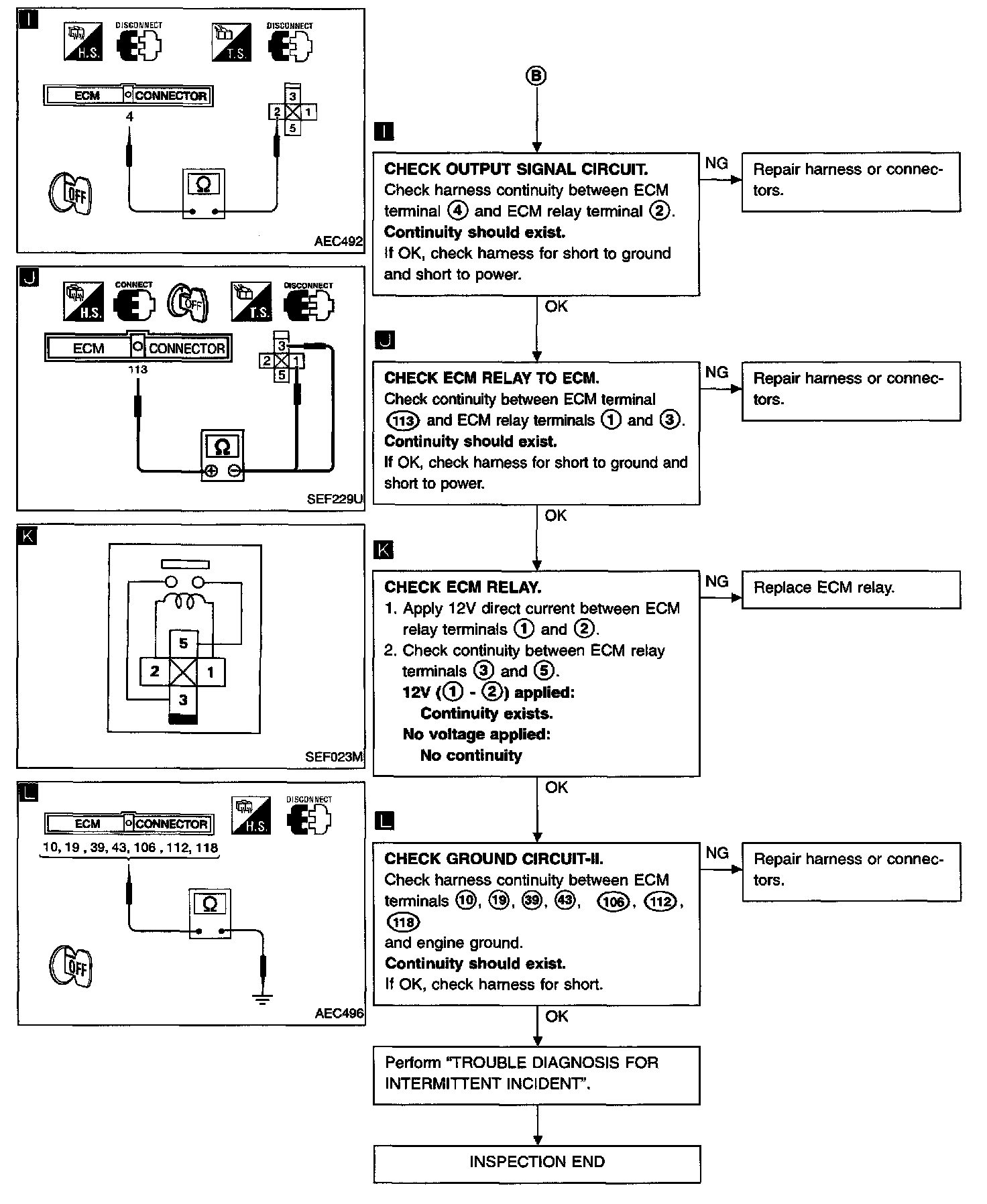

DIAGNOSTIC PROCEDURE
