MIL & Data Link Connectors
MIL & Data Link Connectors

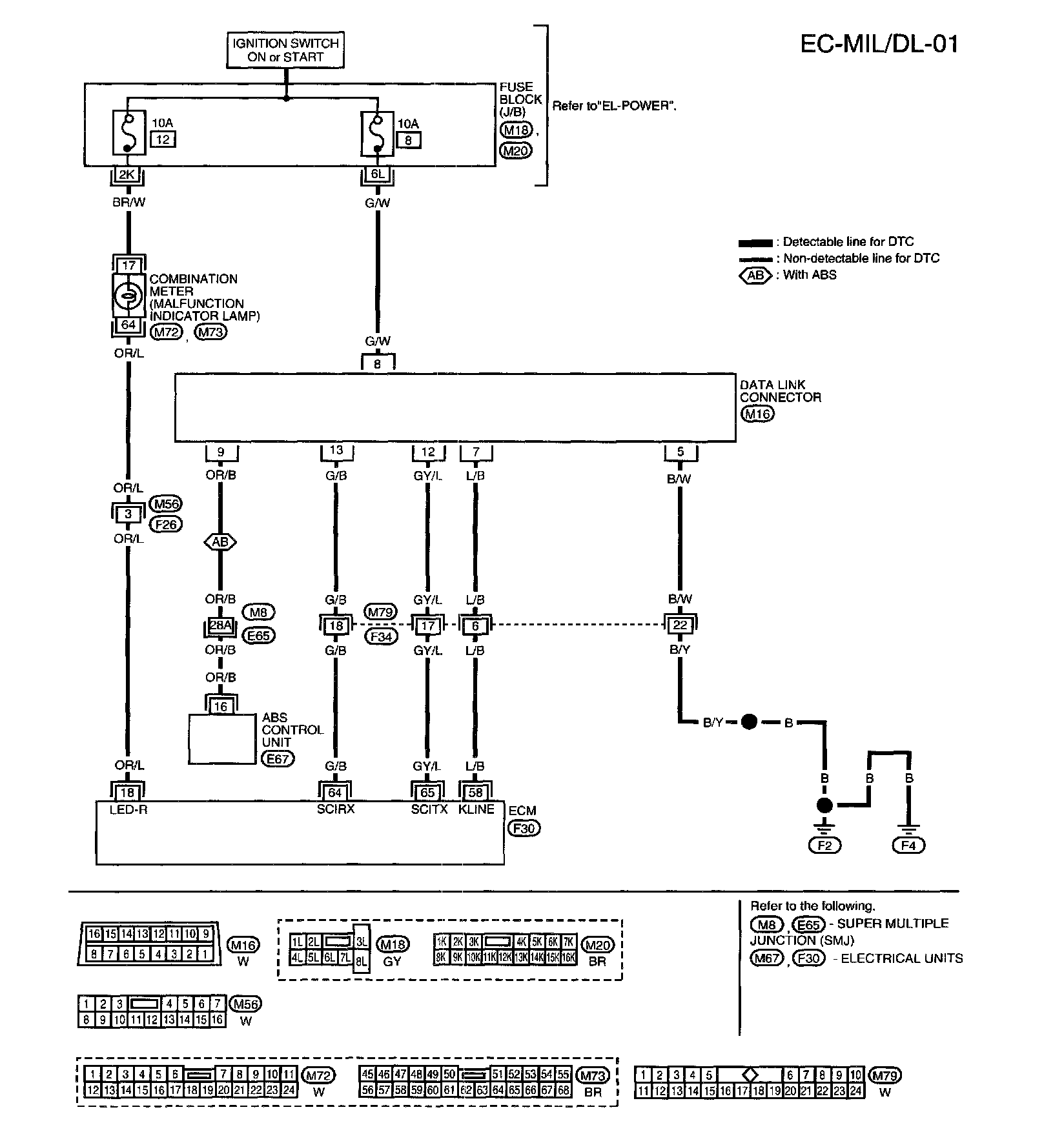

EC-MIL/DL-01:

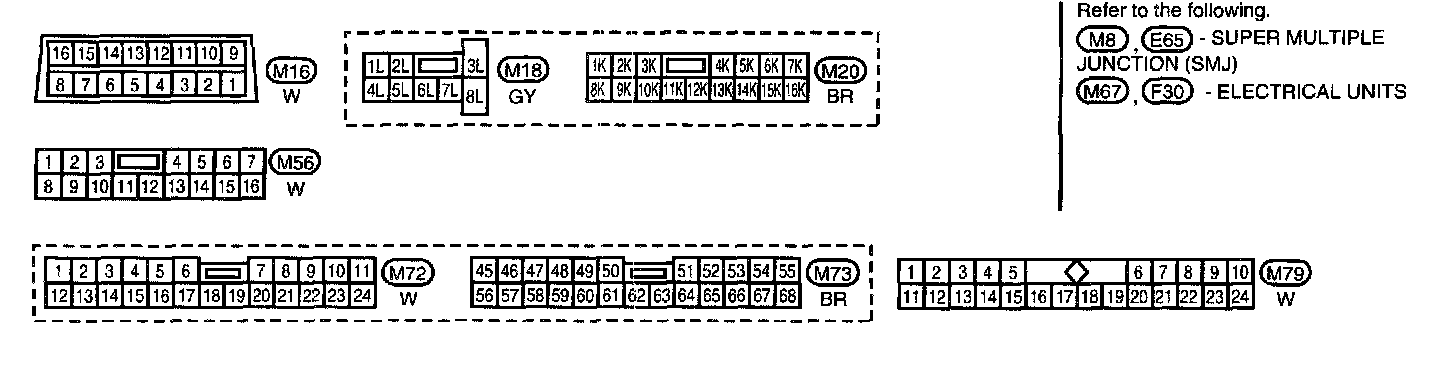

EC-MIL/DL-01 Connector View:
Super Multiple Junction (SMJ):
Electrical Units:
