Fuel Pump

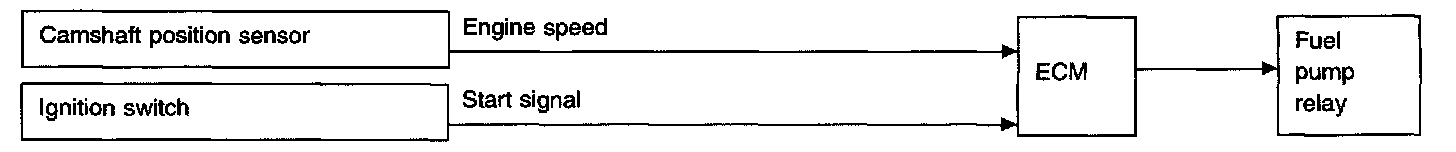

SYSTEM DESCRIPTION

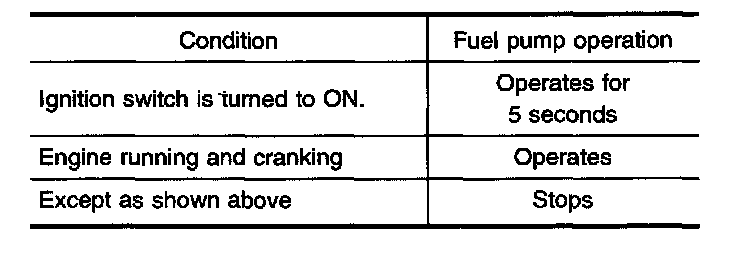

The ECM activates the fuel pump for several seconds after the ignition switch is turned on to improve engine startability. If the ECM receives a 180° signal from the camshaft position sensor, it knows that the engine is rotating, and causes the pump to perform. If the 180° signal is not received when the ignition switch is on, the engine stalls. The ECM stops pump operation and prevents battery discharging, thereby improving safety. The ECM does not directly drive the fuel pump. It controls the ON/OFF fuel pump relay, which in turn controls the fuel pump.




COMPONENT DESCRIPTION

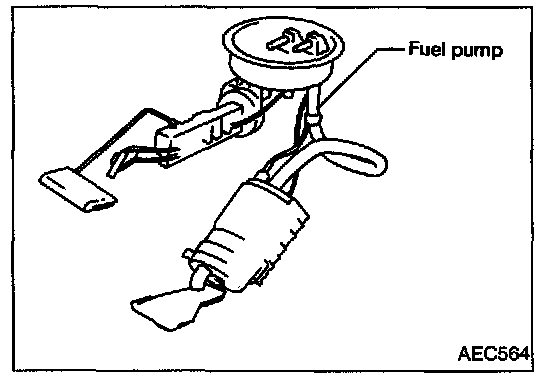

The fuel pump with a fuel damper is an in-tank type (the pump and damper are located in the fuel tank).

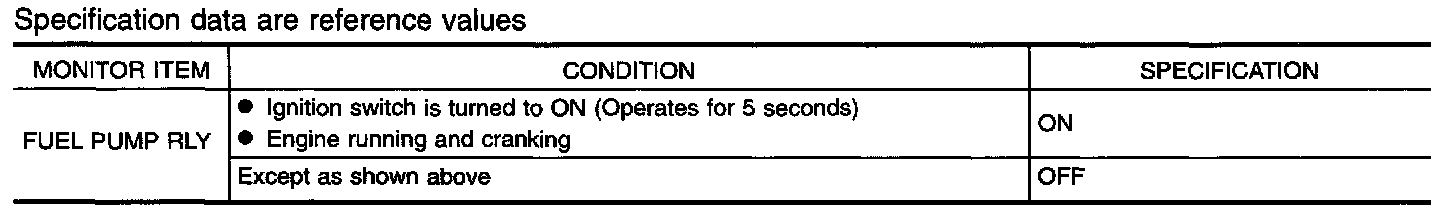

Consult-II Reference Value In Data Monitor Mode:

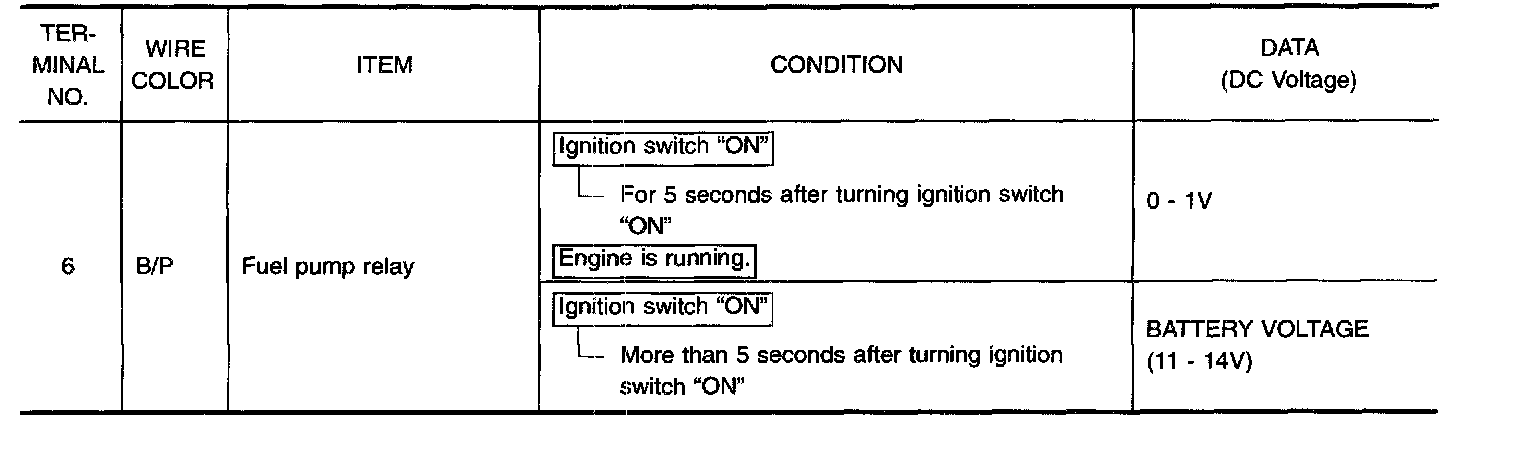

ECM TERMINALS AND REFERENCE VALUE
Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

EC-F/PUMP-01:

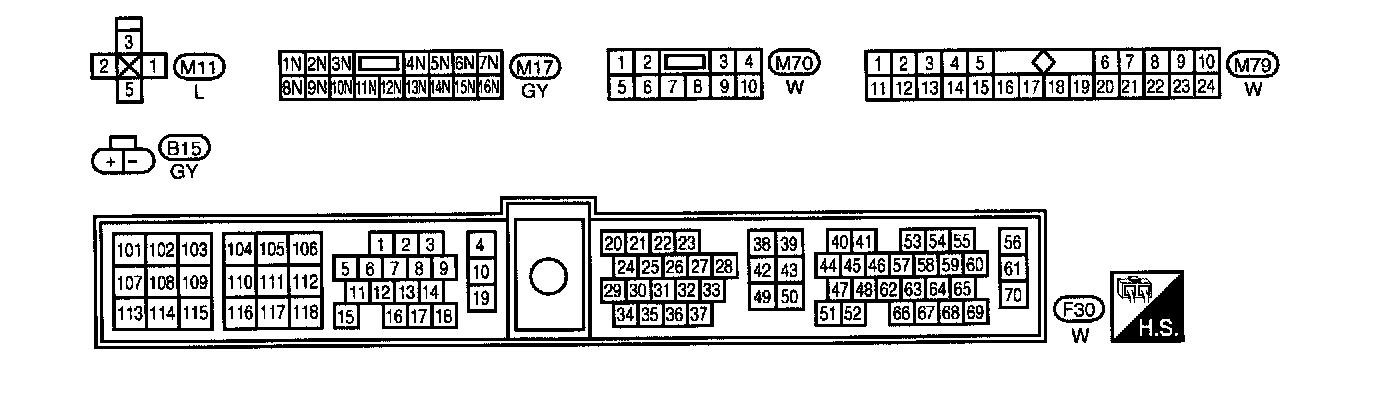

EC-F/PUMP-01 Connector View:

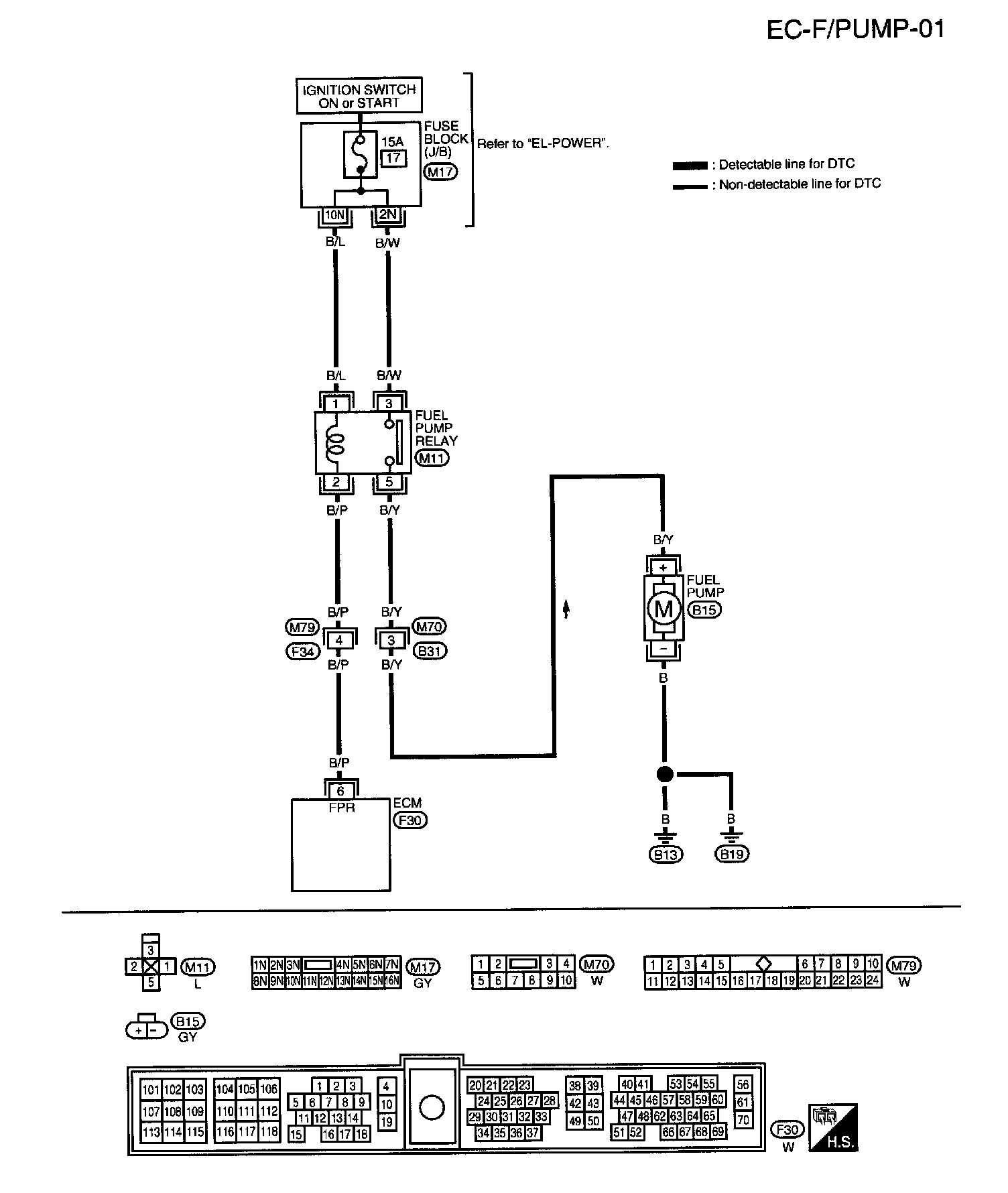

WIRING DIAGRAM

Part 1:

Part 2:

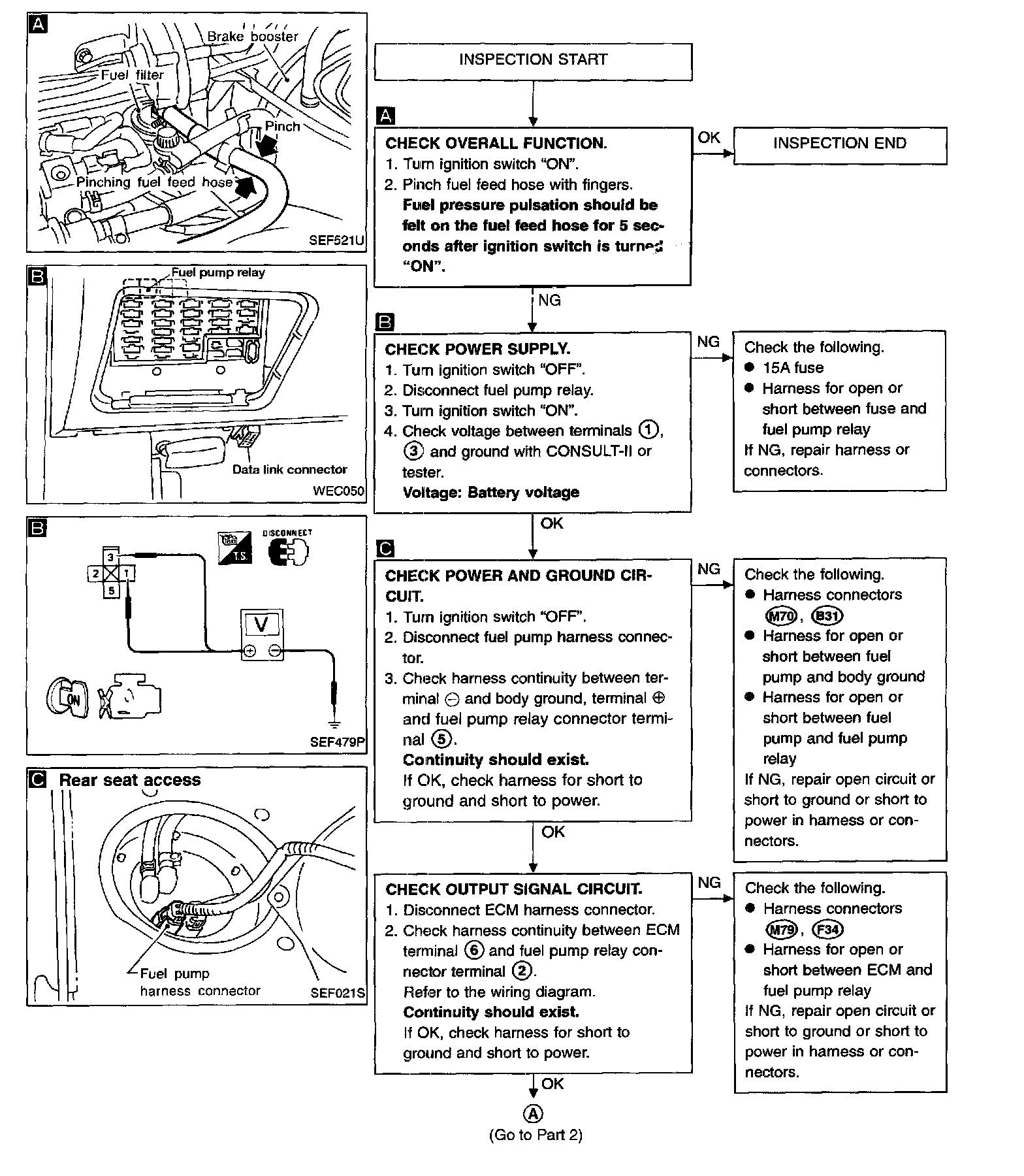

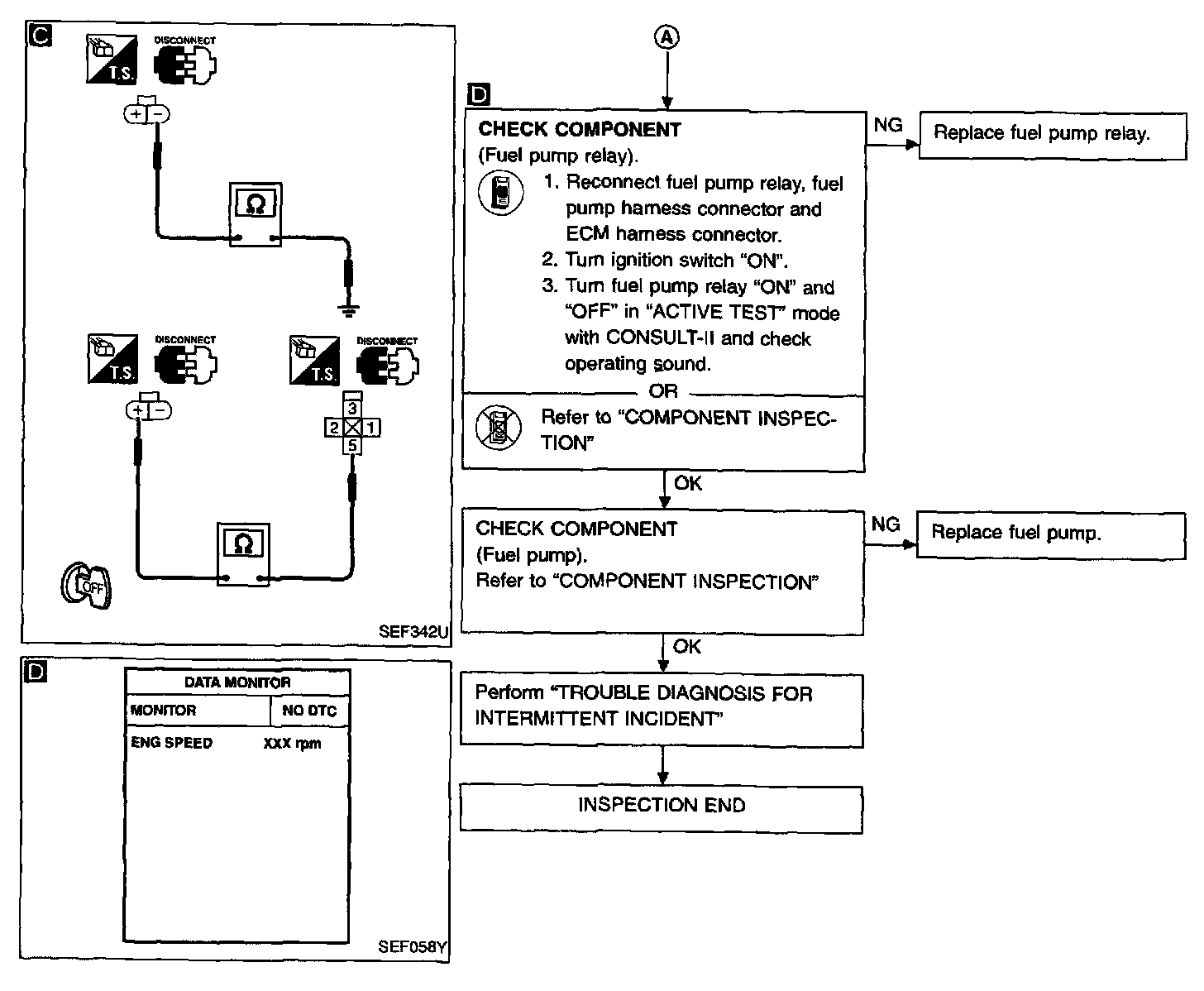

DIAGNOSTIC PROCEDURE

COMPONENT INSPECTION

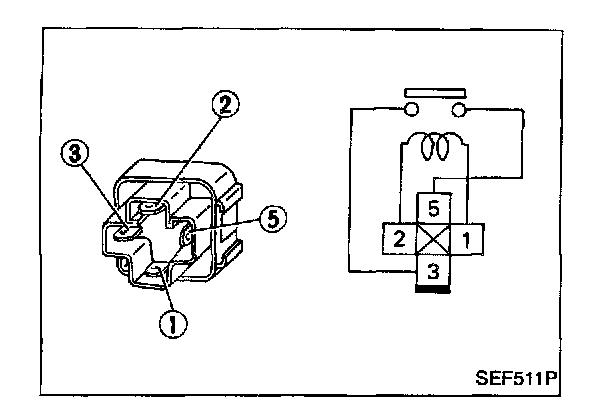

Fuel pump relay

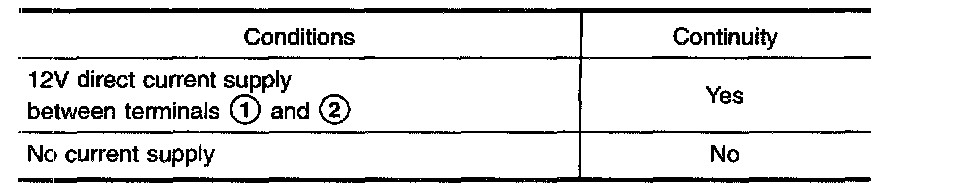

Check continuity between terminals 3 and 5.
If NG, replace relay




Fuel pump

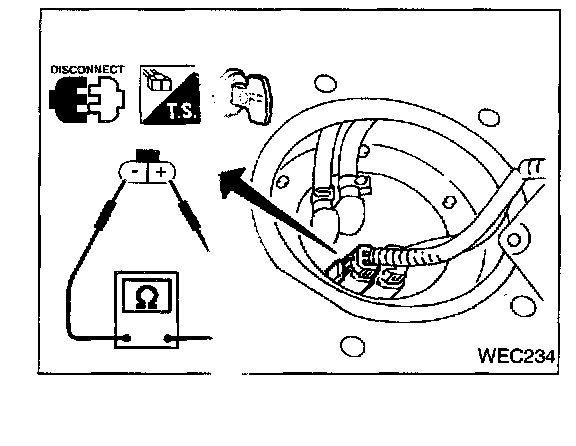

1. Disconnect fuel pump harness connector.
2. Check resistance between terminals (+) and (-).
Resistance: 0.2 - 5.0 ohm [at 25°C (77°F)]
If NG, replace fuel pump.
