Home >> Nissan-Datsun >> 2001 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Sensors and Switches - Computers and Control Systems >> Fuel Level Sensor >> Diagrams >> Electrical Diagrams

Electrical Diagrams

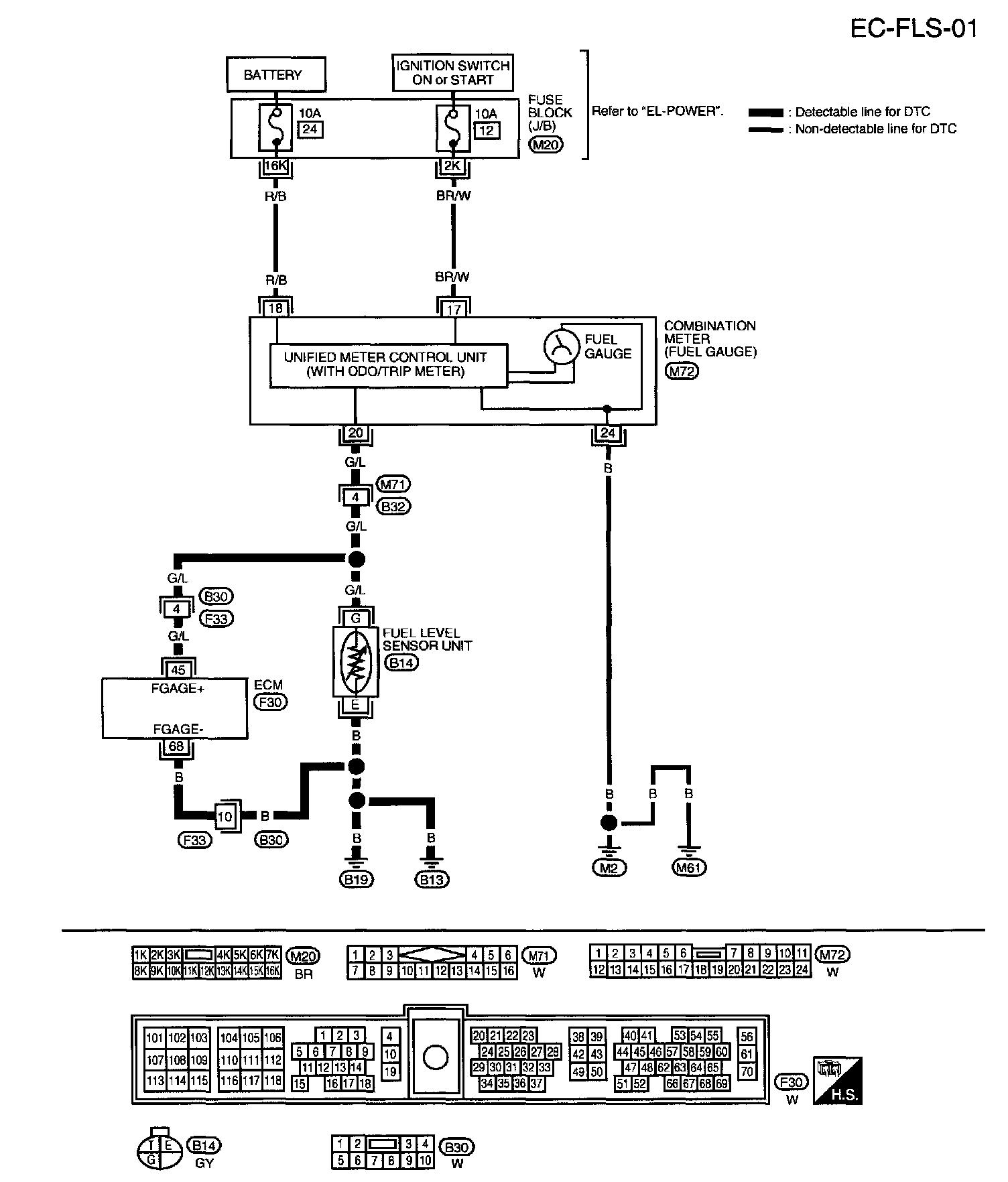

EC-FLS-01:




P0460 Fuel Level Sensor Function (Slosh)

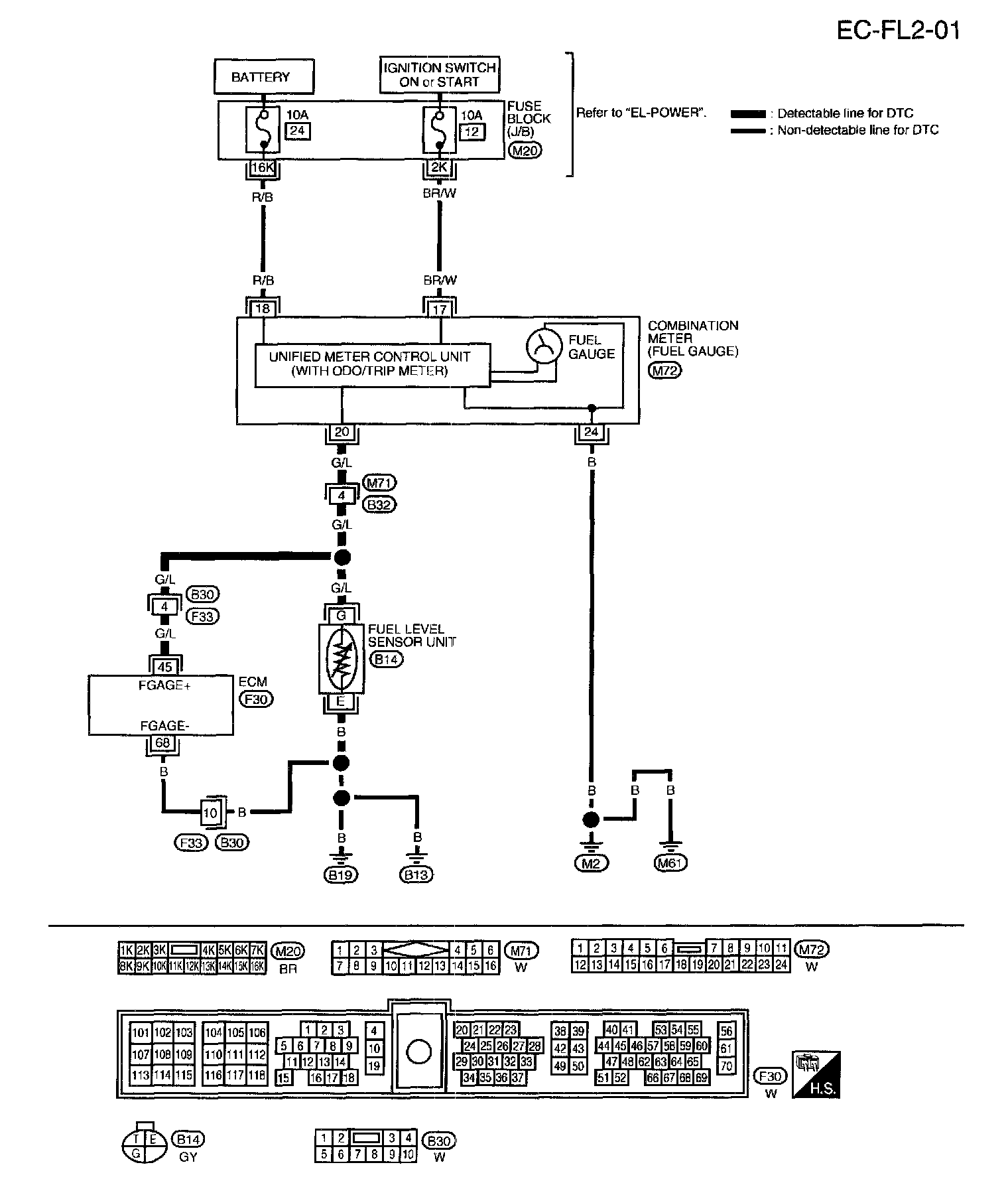

EC-FL2-01:




P0464 Fuel Level Sensor Circuit

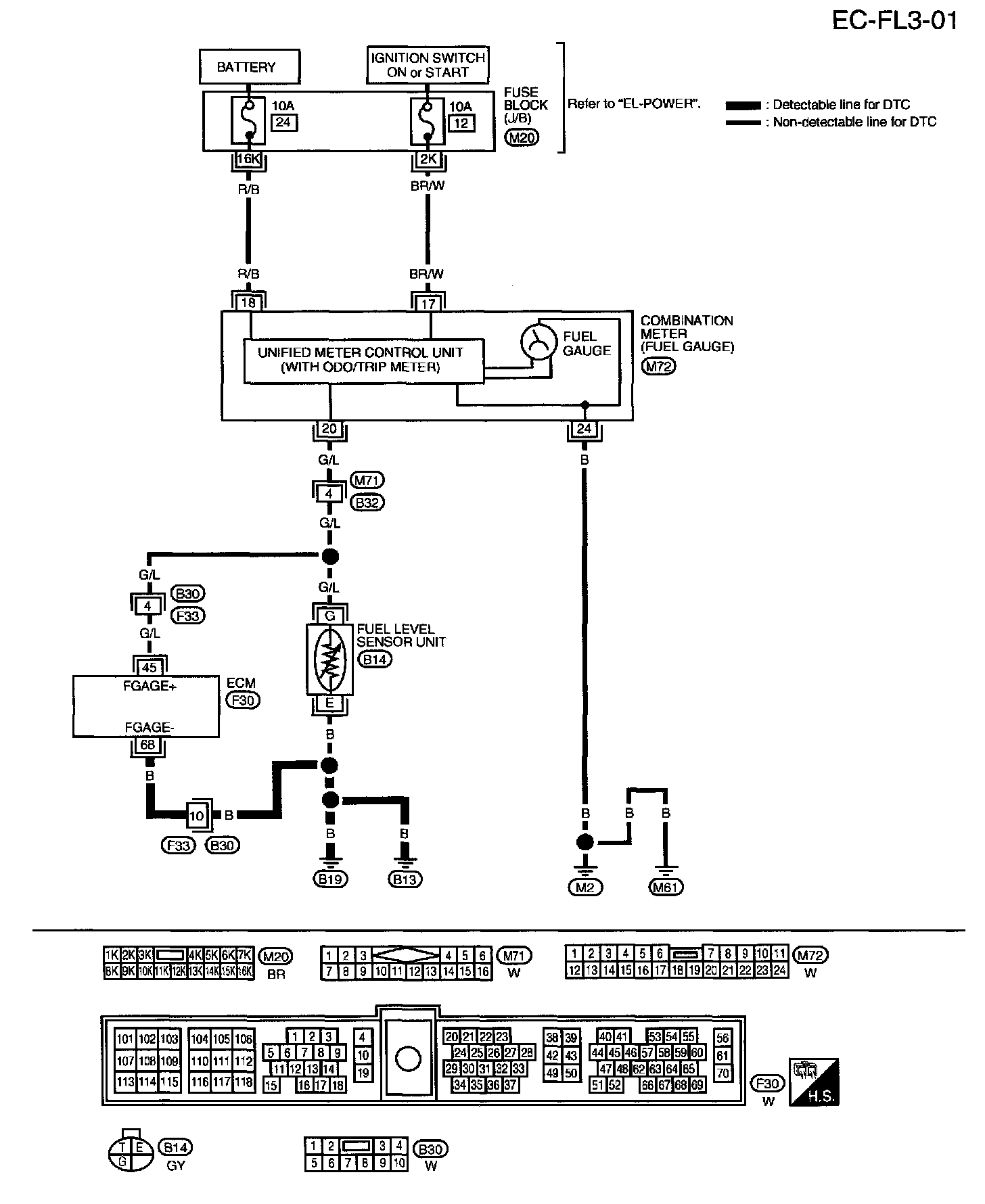

EC-FL3-01:




P1464 Fuel Level Sensor Circuit (Ground Signal)
