Displaying & Reading Trouble Codes

DIAGNOSIS FUNCTION
- Odo/trip meter segment can be checked in diagnosis mode.
- Meters/gauges can be checked in diagnosis mode.

HOW TO ALTERNATE DIAGNOSIS MODE
1. Turn ignition switch to ON and change odo/trip meter to "TRIP A".
2. Turn ignition switch to OFF.
3. Turn ignition switch to ON when pushing odo/trip meter switch.
4. Release odo/trip meter switch 1 second after ignition switch is turned ON.
5. Push odo/trip meter switch more than three times within 5 seconds.

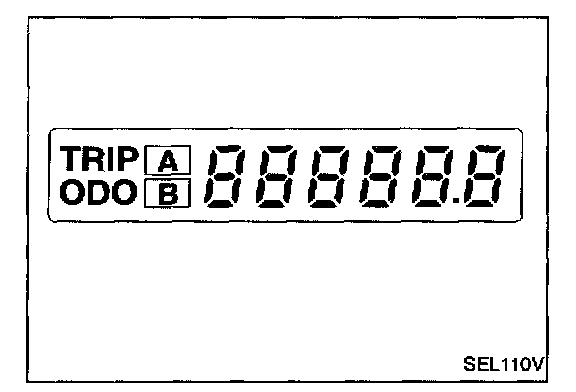

6. All odo/trip meter segments should be turned on.

NOTE: If some segments are not turned on, unified meter control unit with odo/trip meter should be replaced.
At this point, the unified control meter is turned to diagnosis mode.

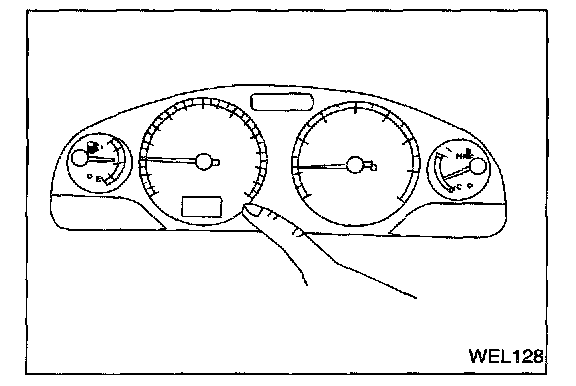

7. Push odo/trip meter switch. Indication of each meter/gauge should be as shown left during pushing odo/trip meter switch if it is no malfunctioning.

NOTE: It takes about a few seconds for indication of fuel gauge and water temperature gauge to become stable.

8. Turn ignition switch to OFF or start engine to cancel diagnosis mode.
