Home
>>
Nissan-Datsun
>>
2001
>>
Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Connector Views
>>
EL-Warn
EL-Warn

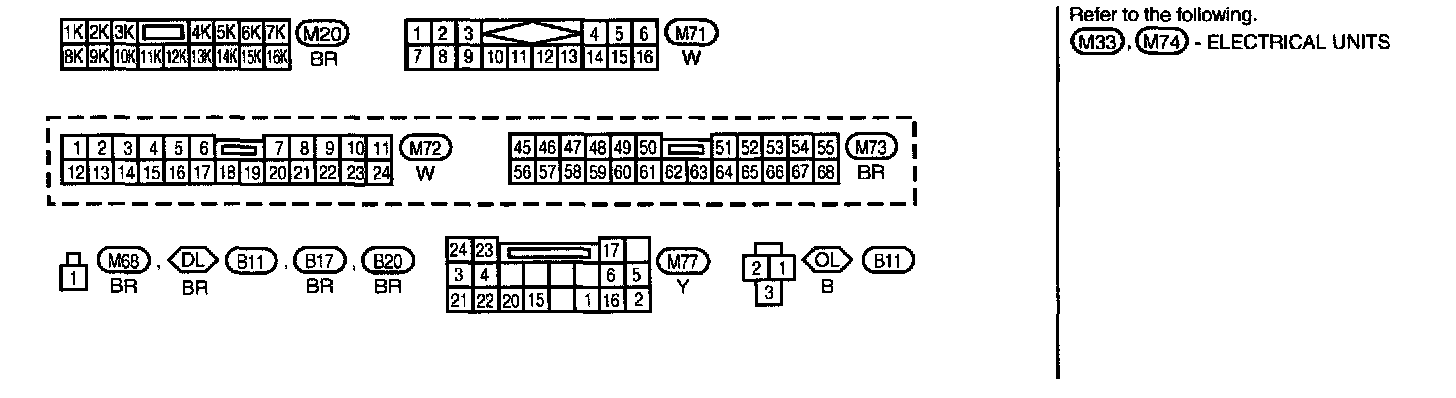

EL-WARN-01 Connector Views:

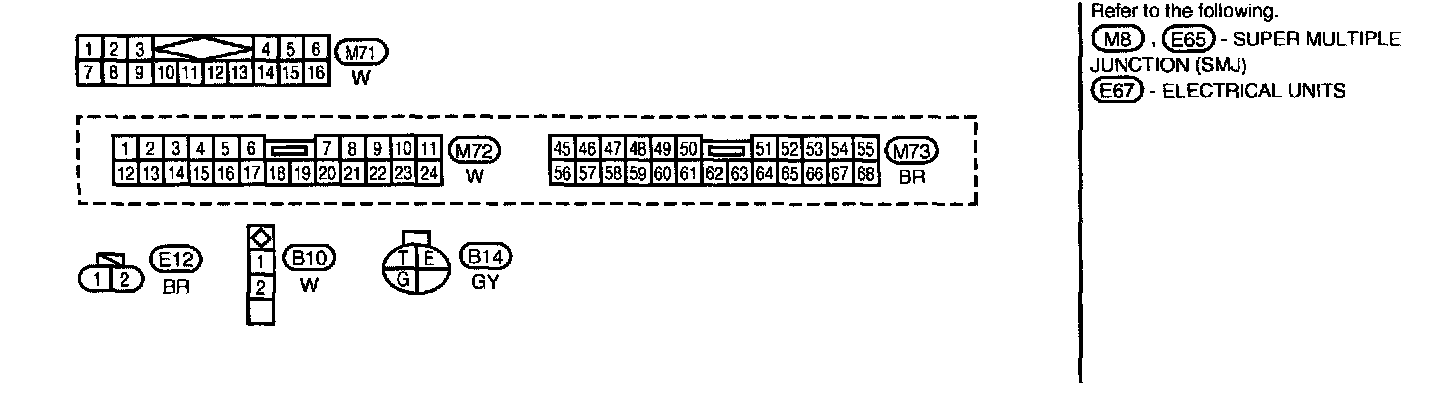

EL-WARN-02 Connector Views:

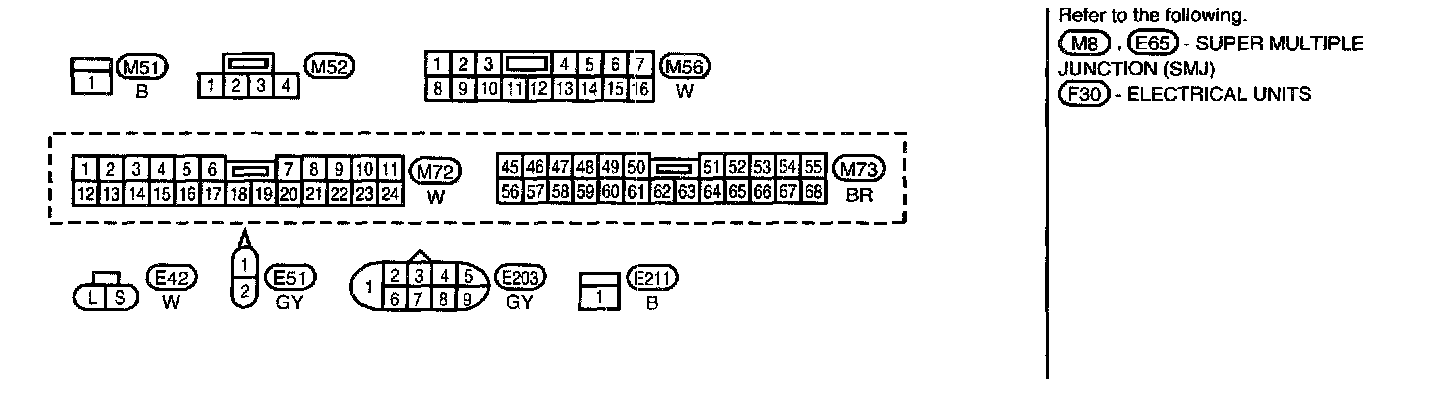

EL-WARN-03 Connector Views:
