Component Tests and General Diagnostics

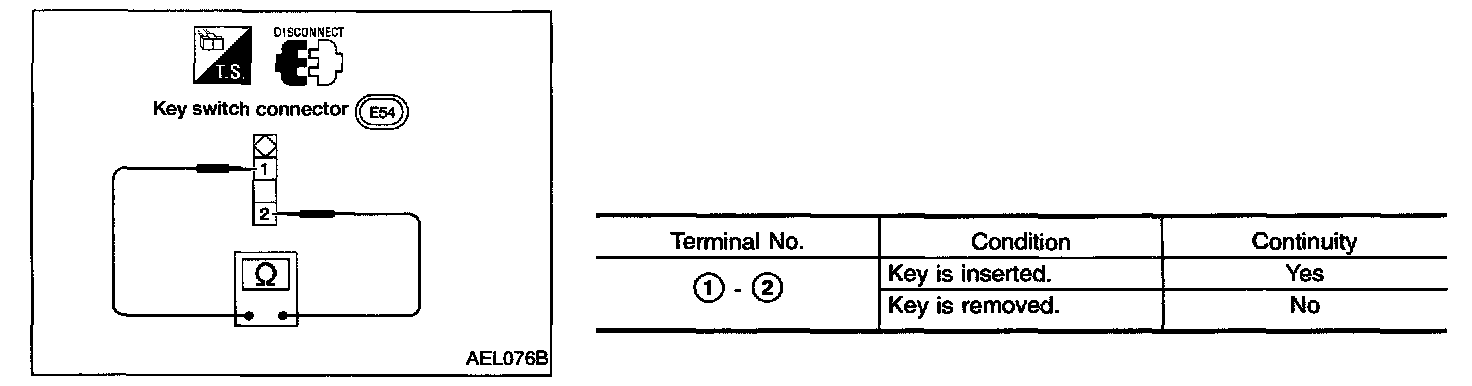

KEY SWITCH (insert)
Check continuity between terminals when key is inserted in ignition key cylinder and key is removed from ignition key cylinder.

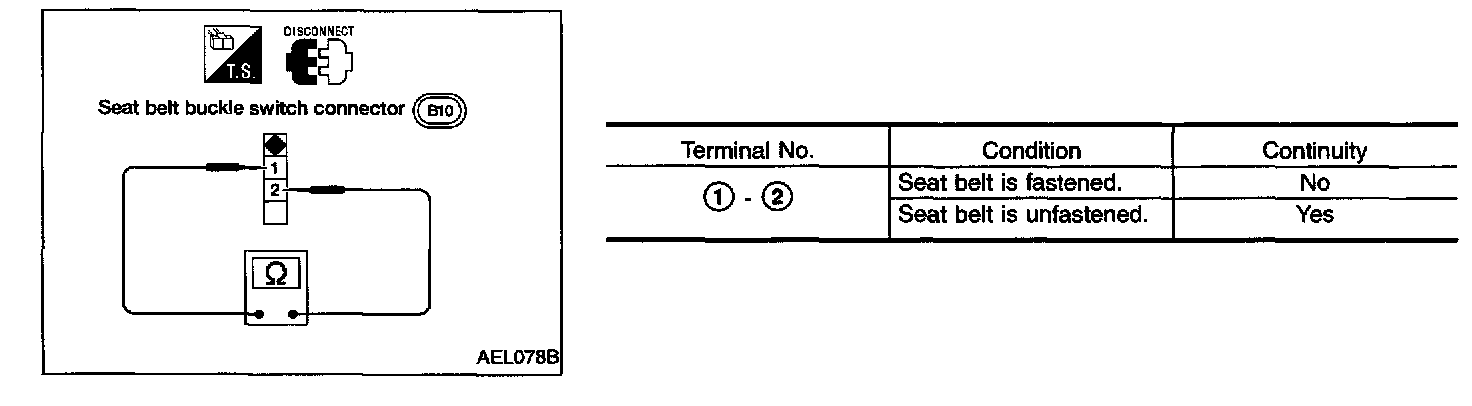

SEAT BELT BUCKLE SWITCH LH
Check continuity between terminals when seat belt is fastened and unfastened.
