Main Power Supply and Ground Circuit Check
POWER SUPPLY CIRCUIT CHECKCheck power supply circuit for air conditioner system.
Refer to "POWER SUPPLY ROUTING".
PUSH CONTROL UNIT CHECK
Check power supply circuit for push control unit with ignition switch ON.
1. Disconnect push control unit harness connector.

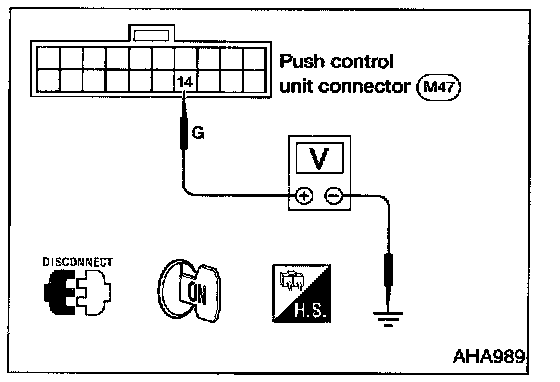

2. Connect voltmeter from harness side.

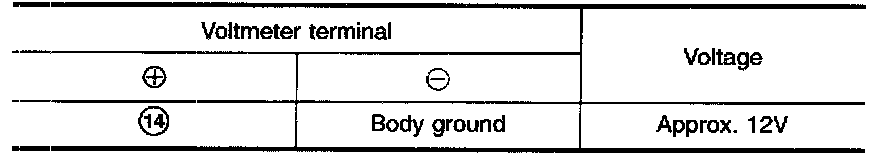

3. Measure voltage across terminal No. (14) and body ground.
Check body ground circuit for push control unit with ignition switch OFF.
1. Disconnect push control unit harness connector.

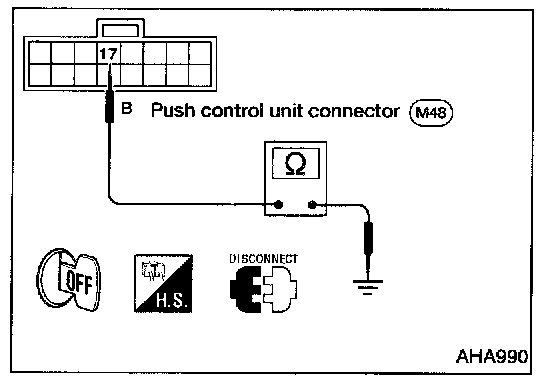

2. Connect ohmmeter from harness side.

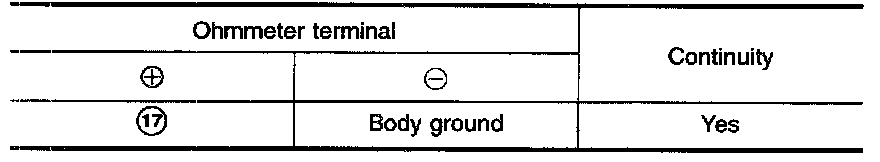

3. Check for continuity between terminal No. (17) and body ground.

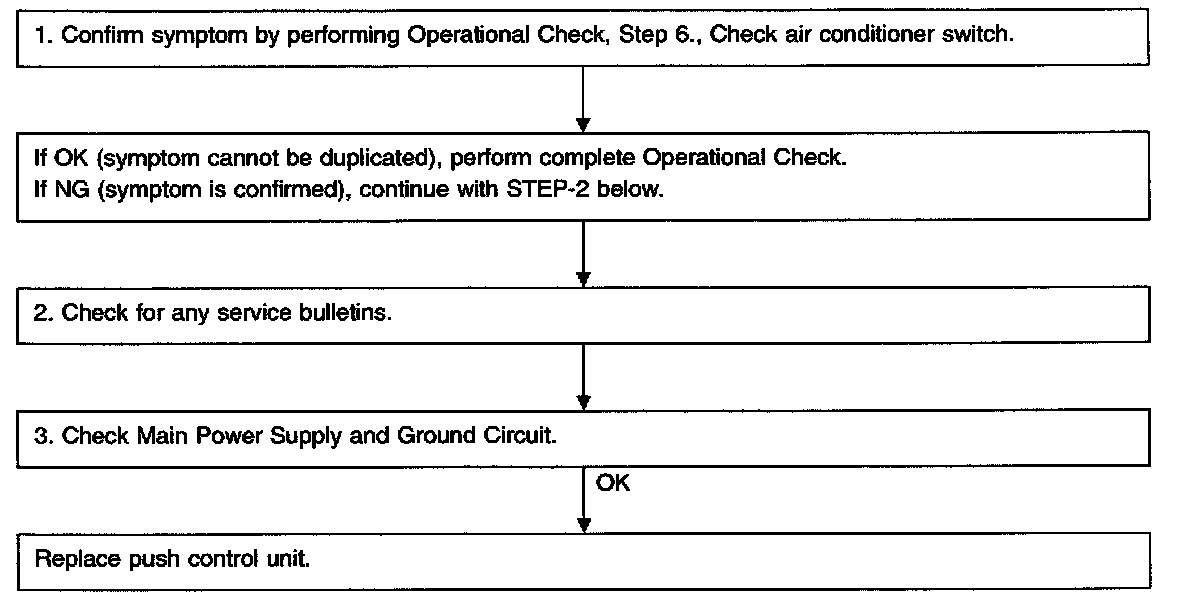

Inspection Flow:
SYMPTOM: A/C push control unit does not operate.
