Evaporator Core: Service and Repair

Cooling Unit (A/C Evaporator)

Cooling Unit (A/C Evaporator):

REMOVAL
1. Discharge the A/C system.
2. Disconnect the two refrigerant lines from inside the engine compartment.
- Cap the A/C lines to prevent moisture from entering the system.

3. Remove the glove box and mating trim.
4. Disconnect the thermal amp. connector.

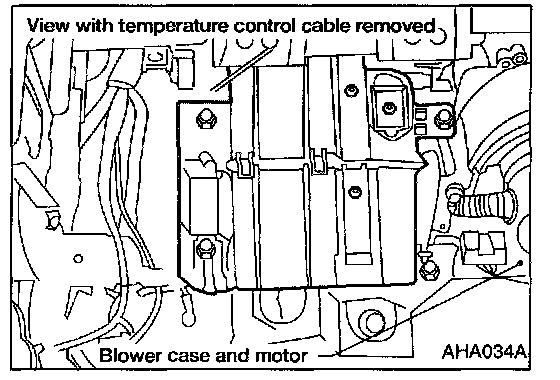

5. Remove the cooling unit.

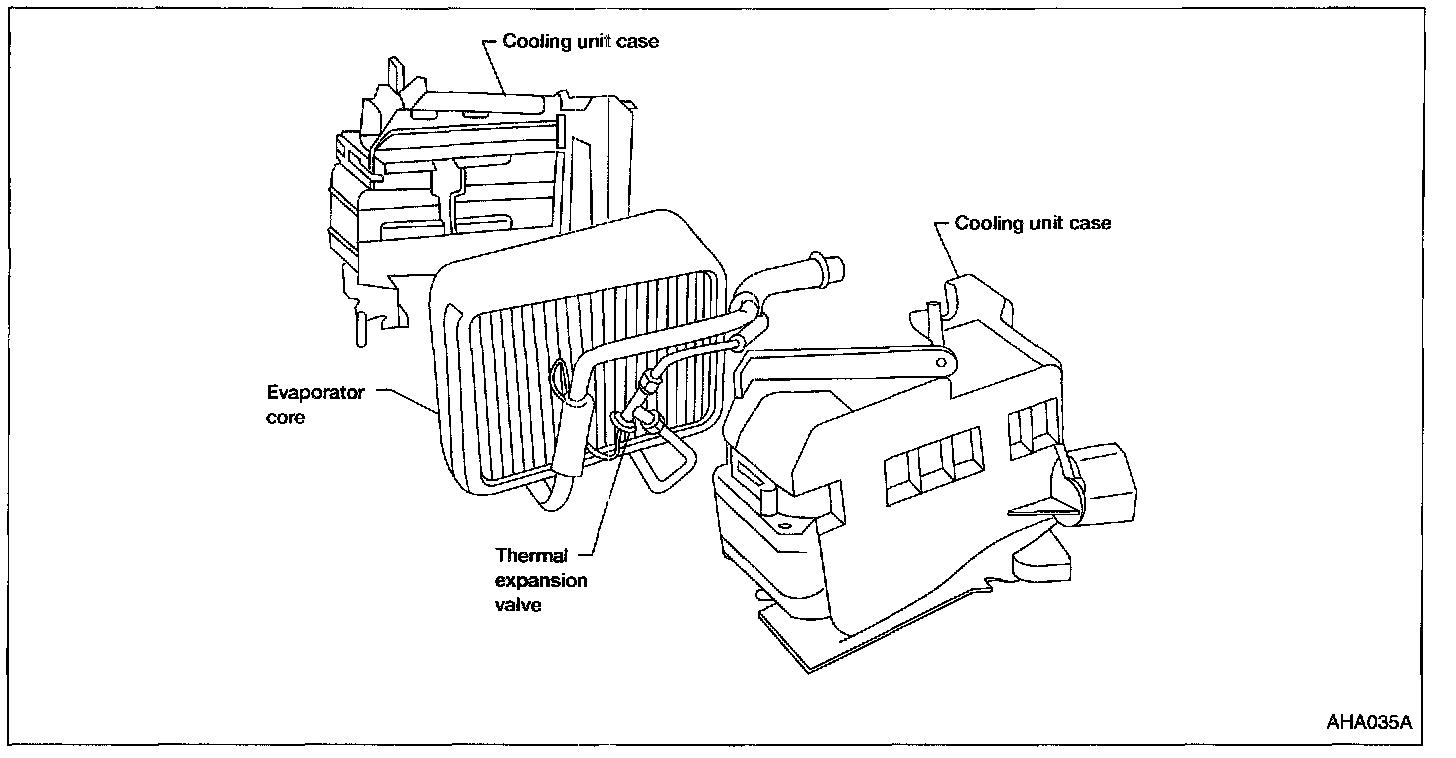

6. Separate the cooling unit case, and remove the evaporator.

INSTALLATION
Installation is basically the reverse order of removal.

Recharge the A/C system.
