Component Tests and General Diagnostics

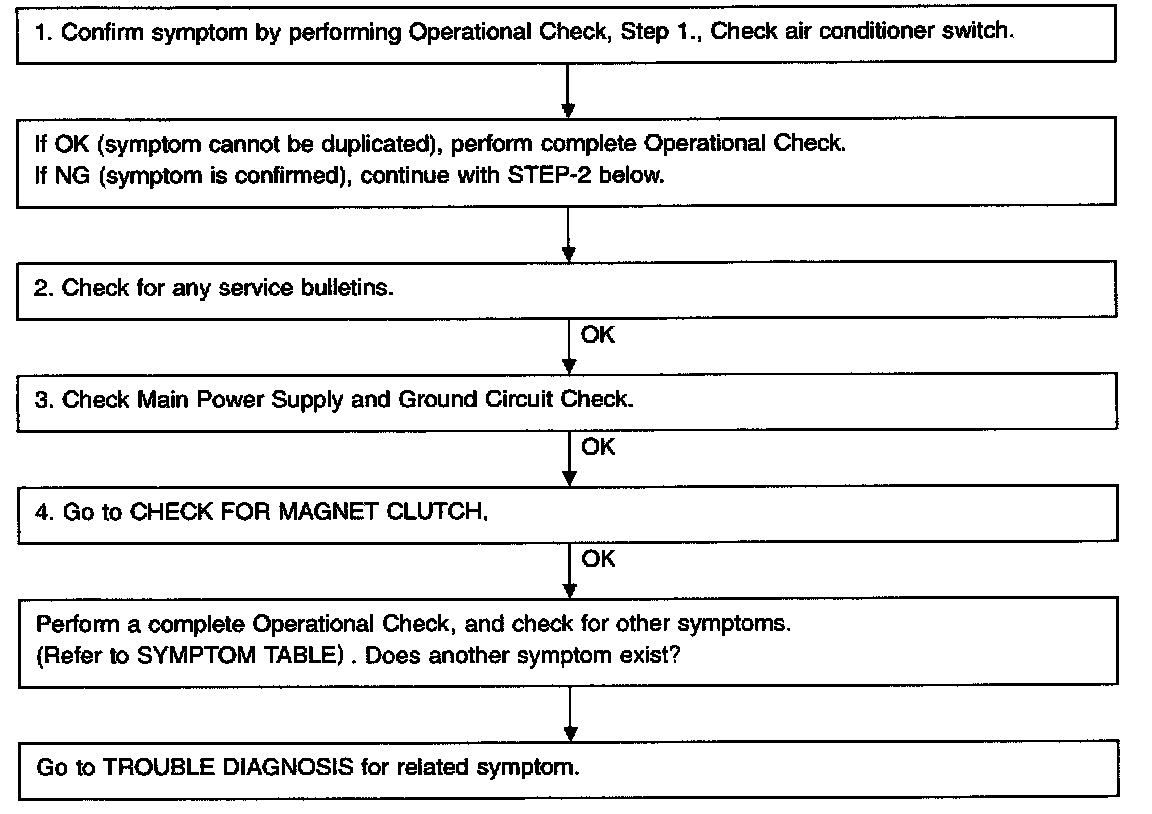

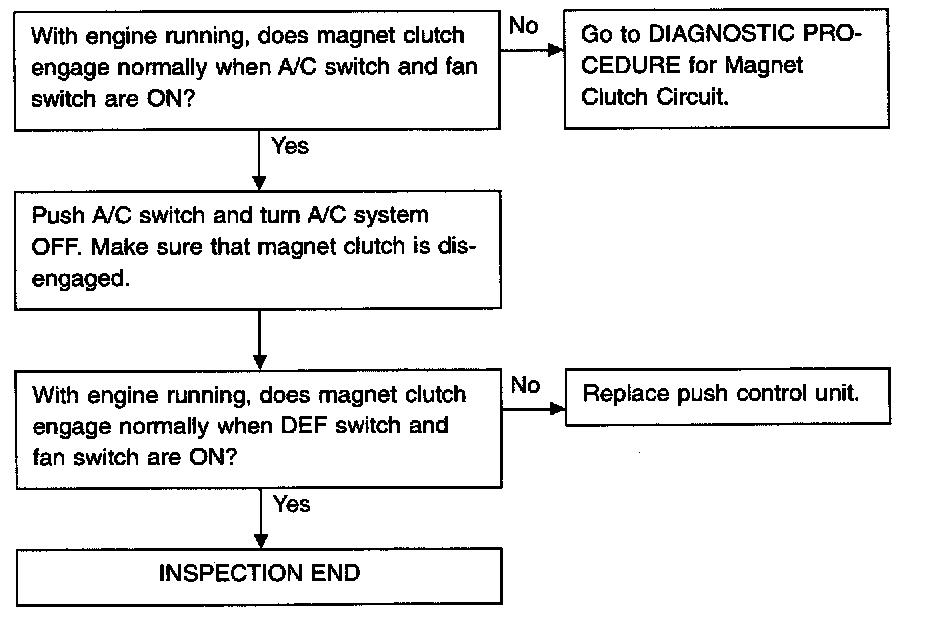

Inspection Flow:

Check For Magnet Clutch:

SYMPTOM: Magnet clutch does not engage when A/C switch and fan switch are ON. Magnet clutch does not engage in DEF mode.

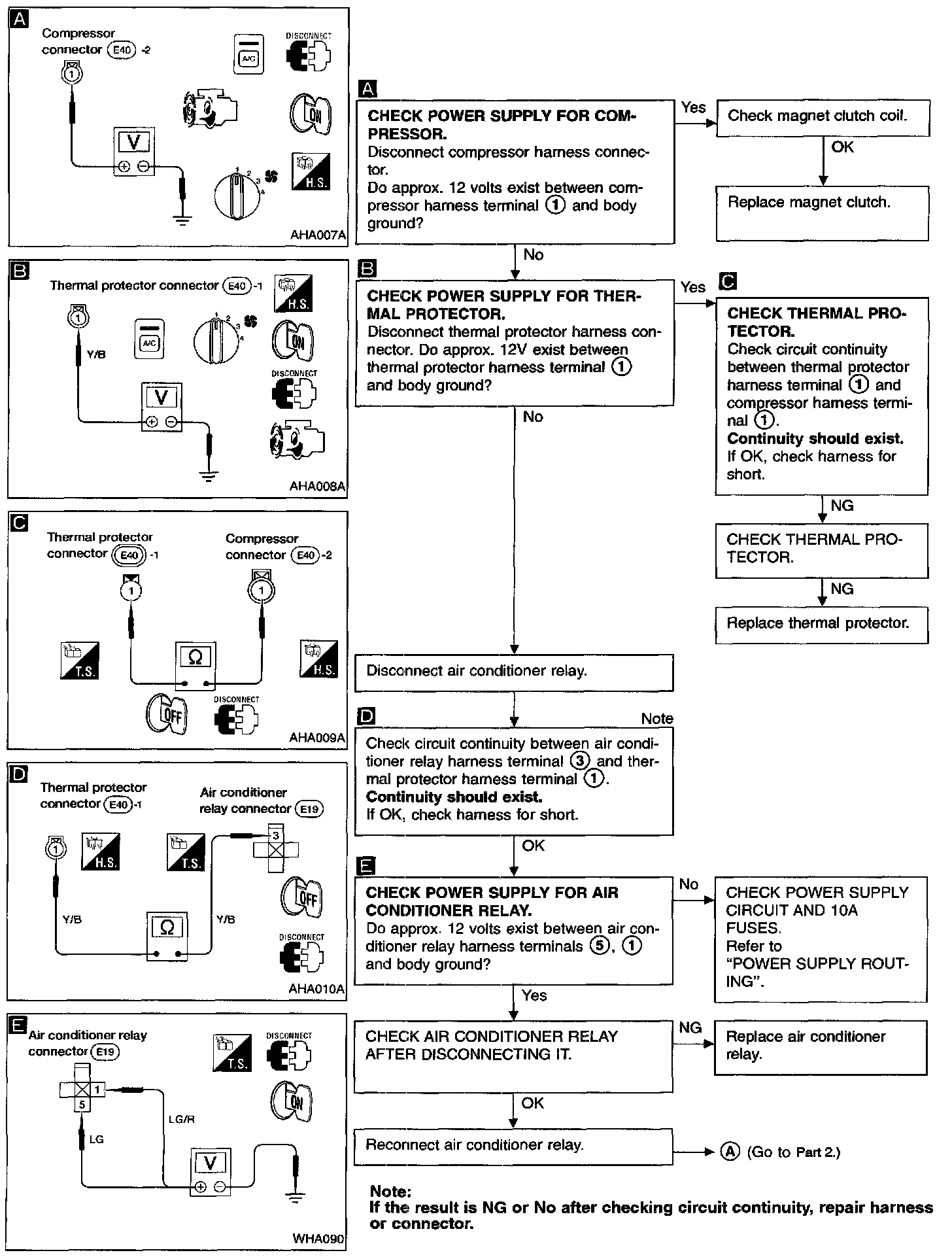

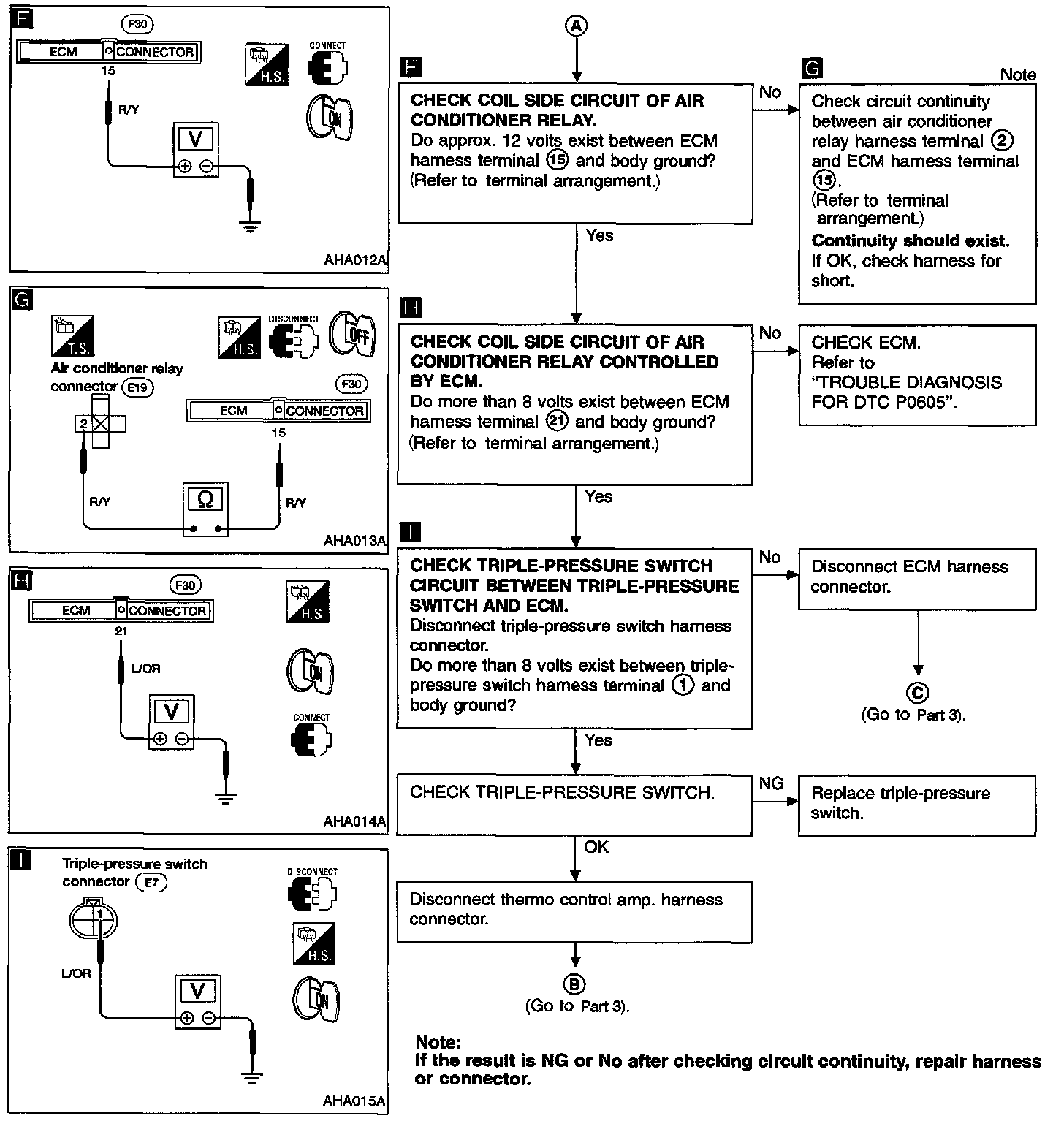

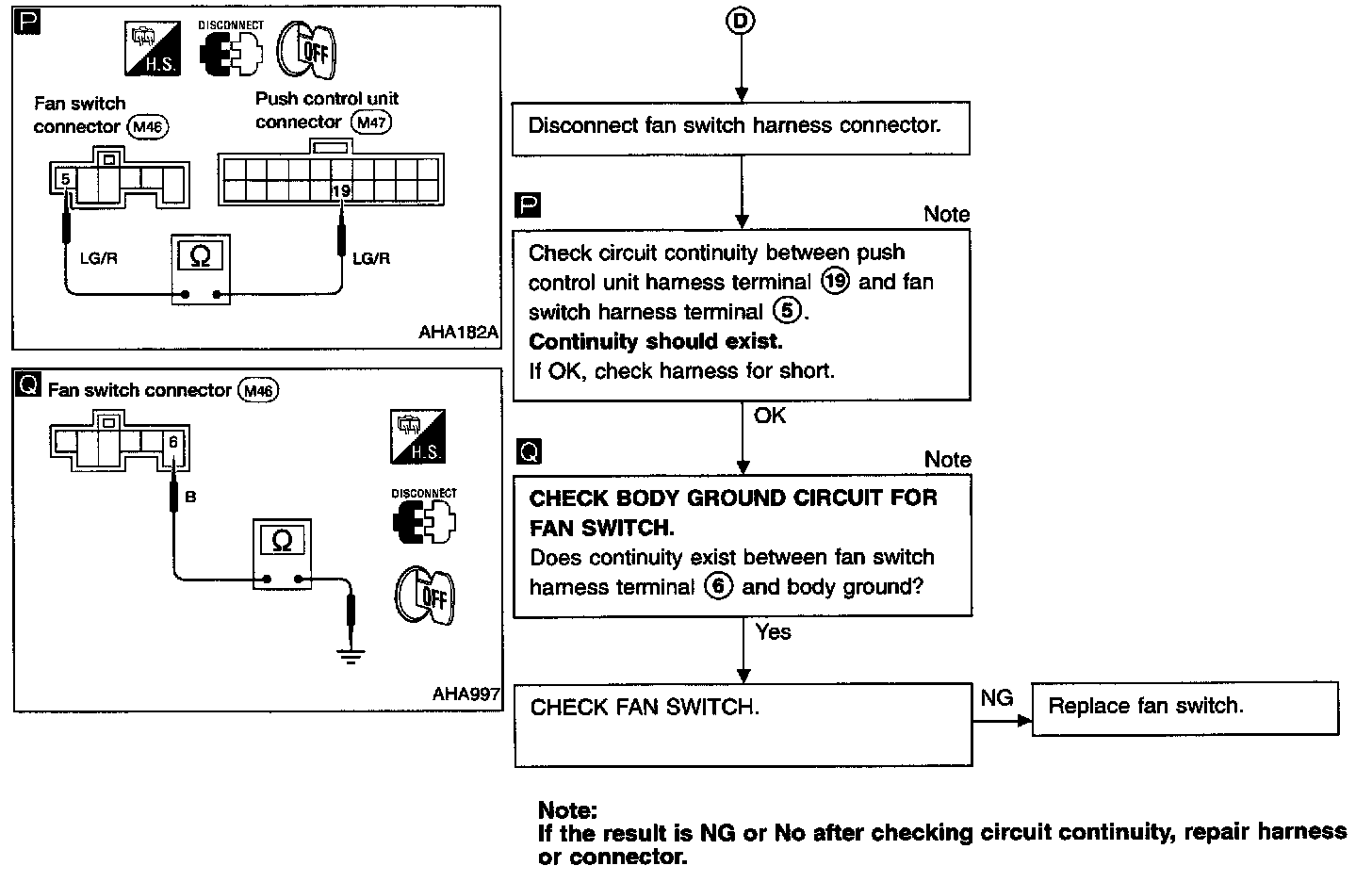

Part 1:

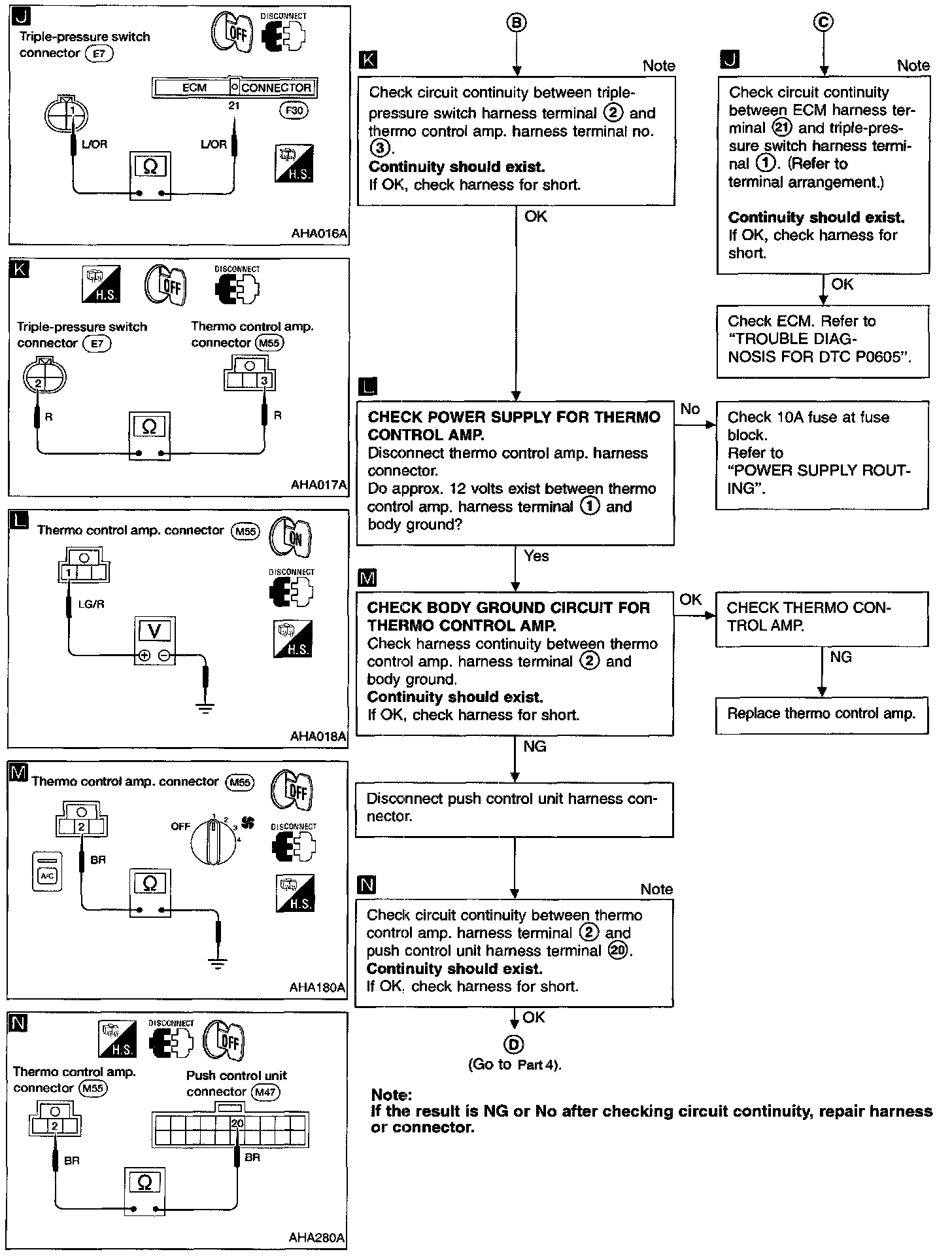

Part 2:

Part 3:

Part 4:

DIAGNOSTIC PROCEDURE

SYMPTOM: Magnet clutch does not engage when A/C switch and fan switch are ON.

ELECTRICAL COMPONENT INSPECTION

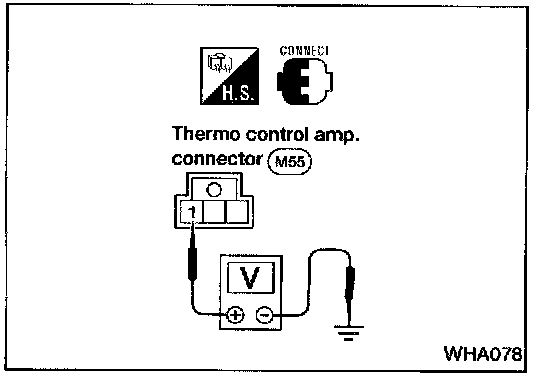

Thermo control amp.
1. Run engine, and operate A/C system.
2. Connect the voltmeter from harness side.

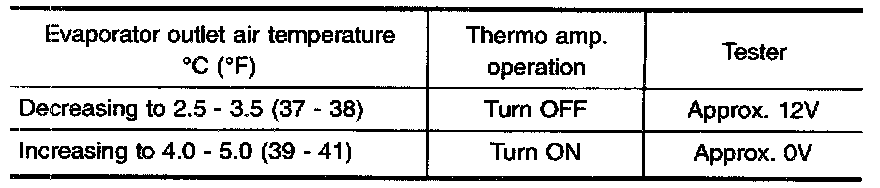

3. Check thermo control amp. operation shown in the table.

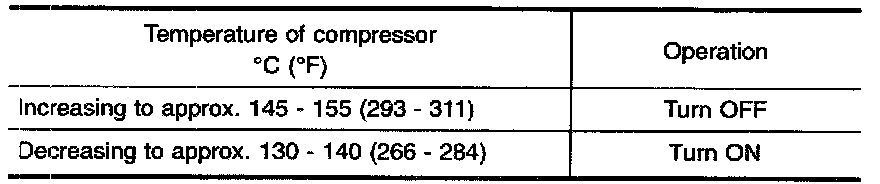

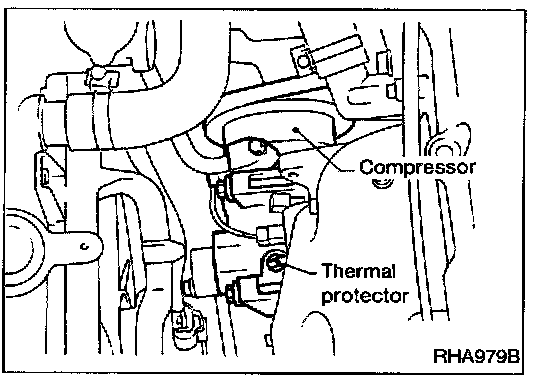

Thermal protector
If NG, replace thermal protector.

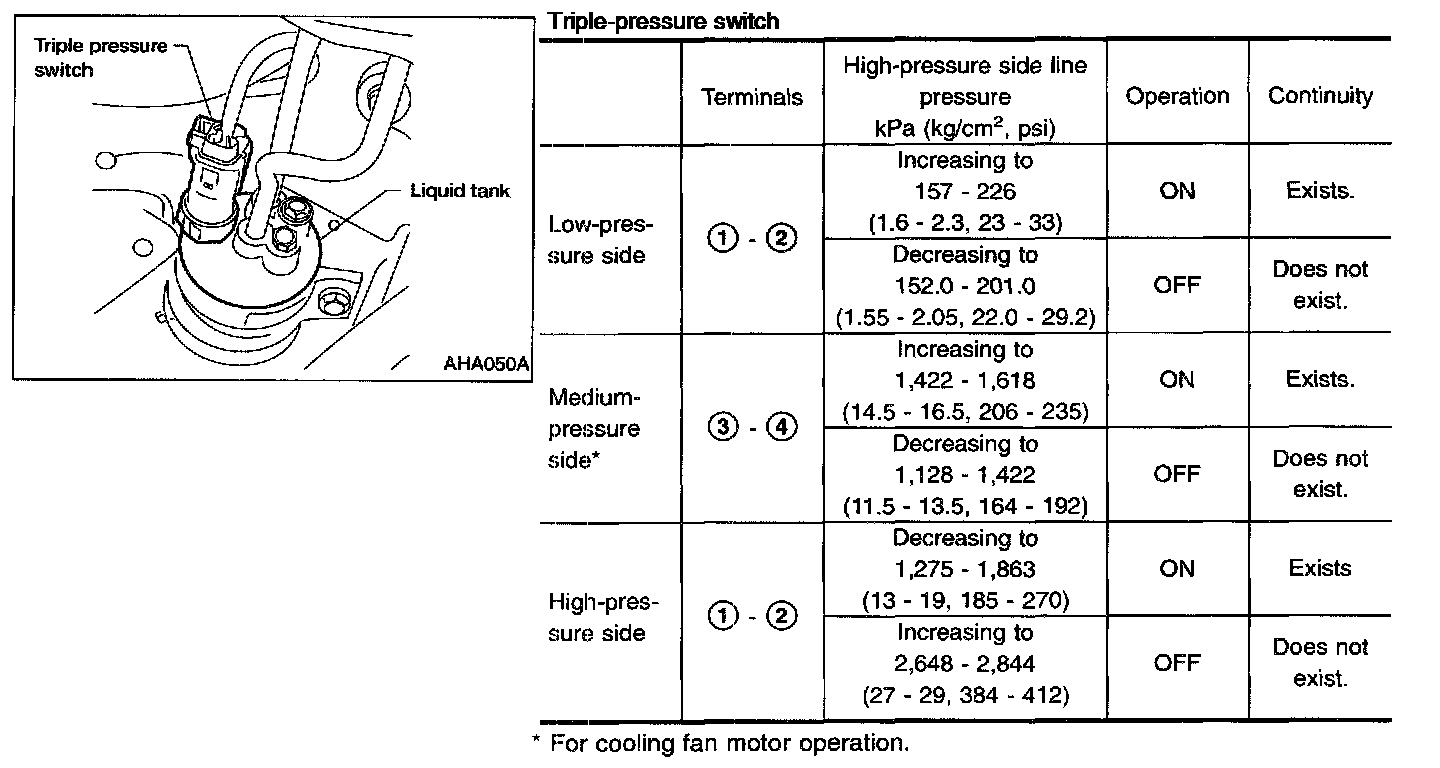

Triple-pressure switch

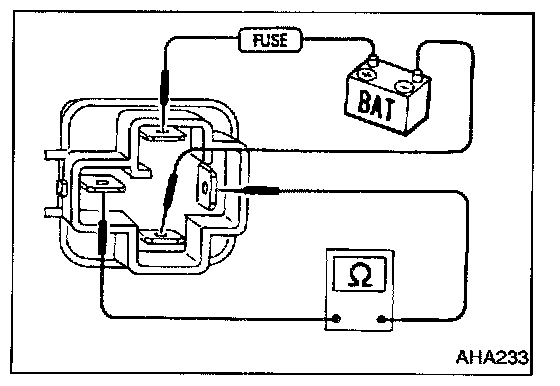

Air conditioner relay
Check circuit continuity between terminals by supplying 12 volts to coil side terminals of air conditioner relay.
