Home >> Nissan-Datsun >> 2001 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> Heating and Air Conditioning >> Air Door >> Testing and Inspection >> Blend Door >> Air Mix Door

Air Mix Door

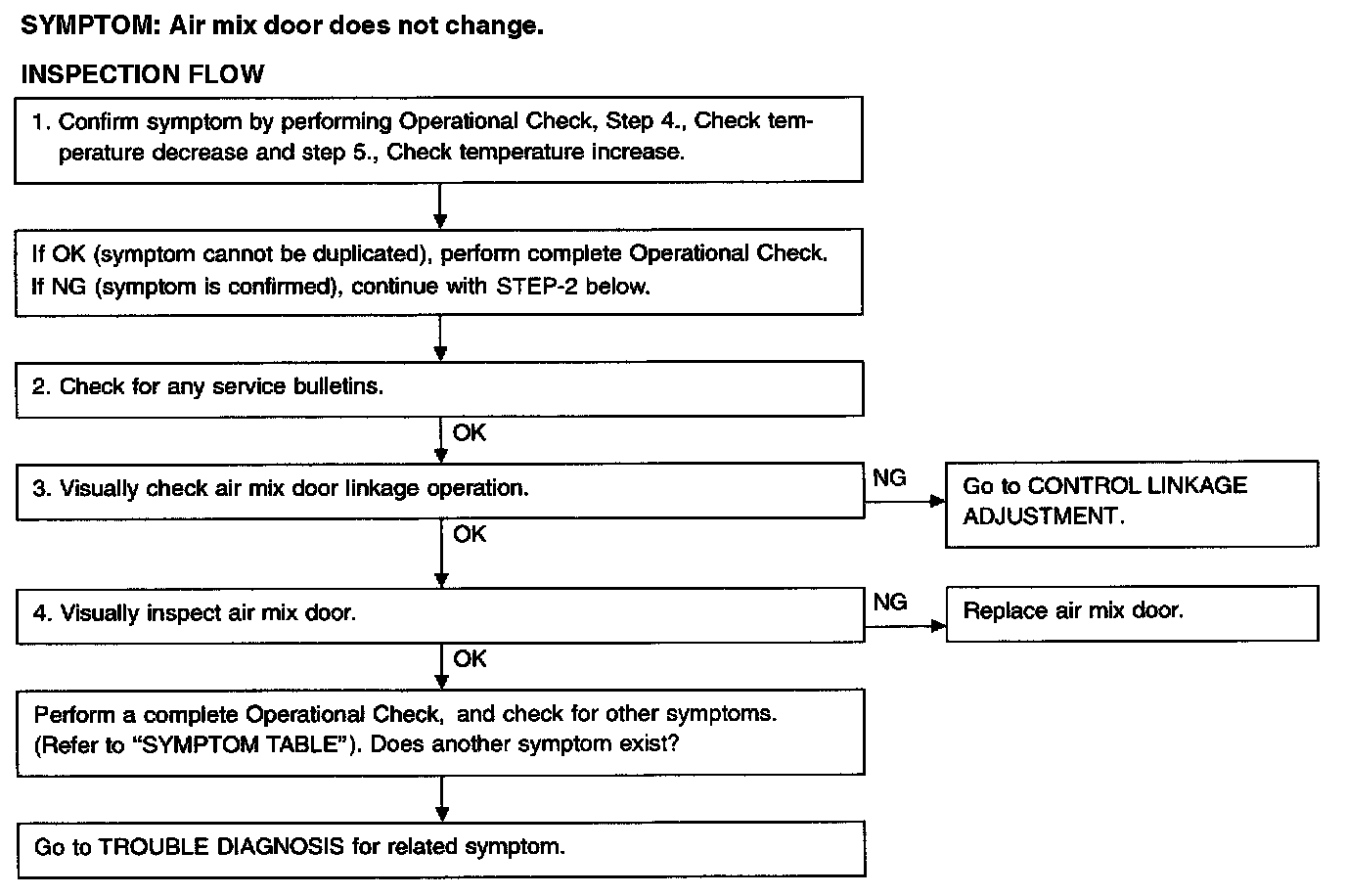

Symptom: Air Mix Door Does Not Change - Inspection Flow:
