Air Door Cable: Adjustments

CONTROL LINKAGE ADJUSTMENT

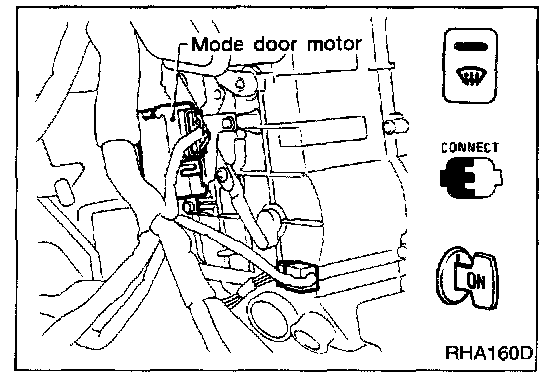

Mode Door
1. Move side link by hand and hold mode door in DEF mode.
2. Connect door motor to main harness.
3. Turn ignition switch ON.
4. Select DEF mode.
5. Install mode door motor on heater unit.
6. Attach mode door motor rod to side link rod holder.
After installing the mode door motor, check for proper operation

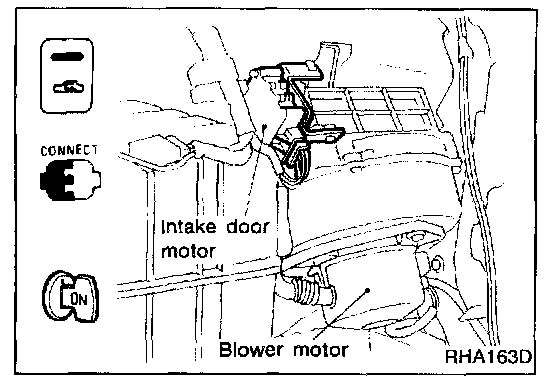

Intake Door
- Control linkage for intake door is not adjustable.
- Check for free movement or intake door linkage. Remove intake door motor and move linkage by hand.
- If any stiffness or binding is detected, remove the blower case.
- Inspect intake door and linkage. Replace parts as necessary.

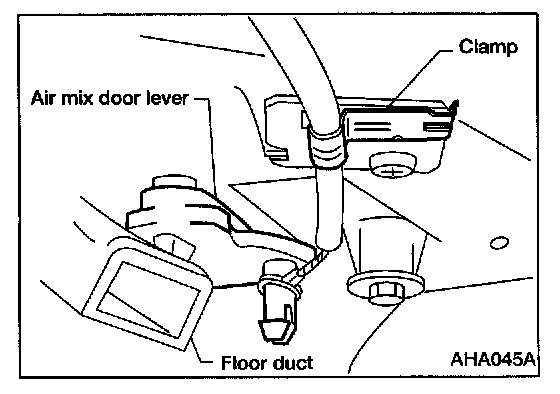

Temperature control cable
1. Move temperature control knob to full hot position.
2. Unclamp temperature control cable.
3. Move air mix door lever rearward, to full hot position.
4. Install the clamp.
After positioning control cable, check for proper operation.
