Front Crankshaft Seal: Service and Repair

Front Oil Seal

1. Remove radiator shroud and crankshaft pulley.

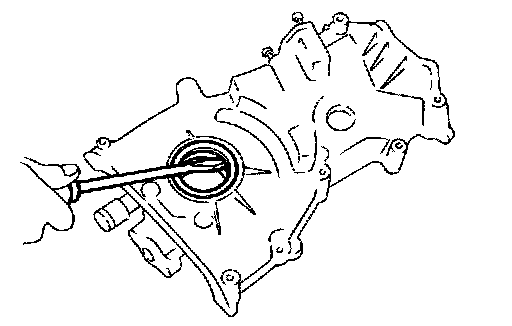

2. Remove front oil seal.
- Be careful not to scratch front cover.





3. Apply engine oil to new oil seal and install it using a suitable tool.

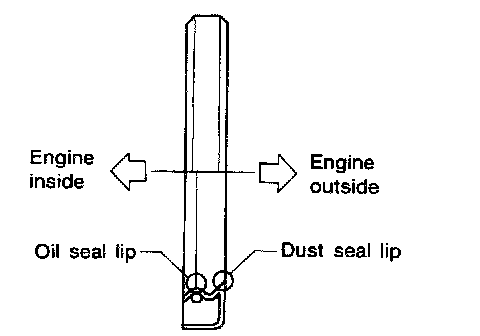

- Install new oil seal in the direction shown.
