Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Trunk Lamp
>>
EL-Int/L-02
EL-Int/L-02

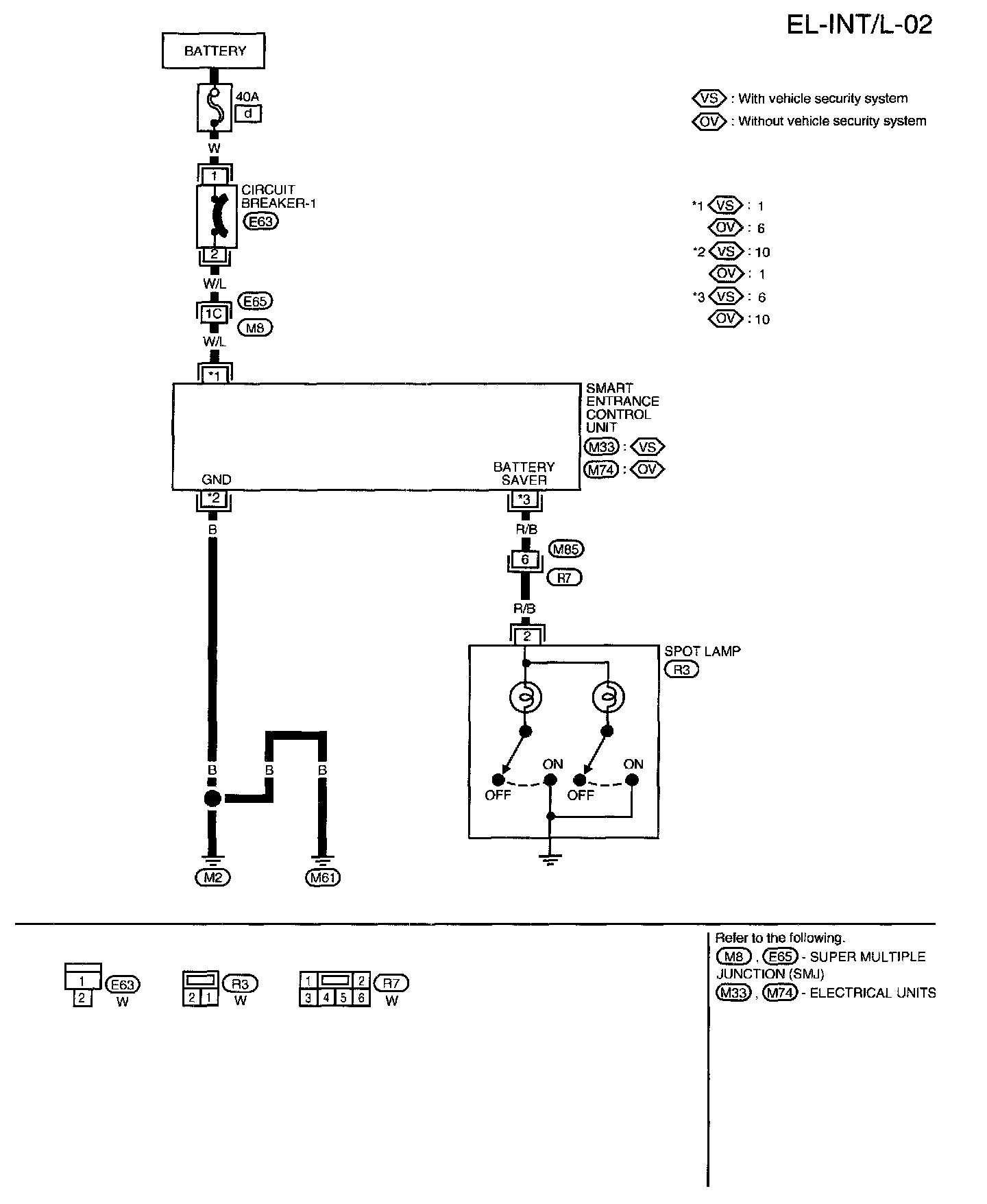

EL-INT/L-02:
