Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Instrument Cluster / Carrier
>>

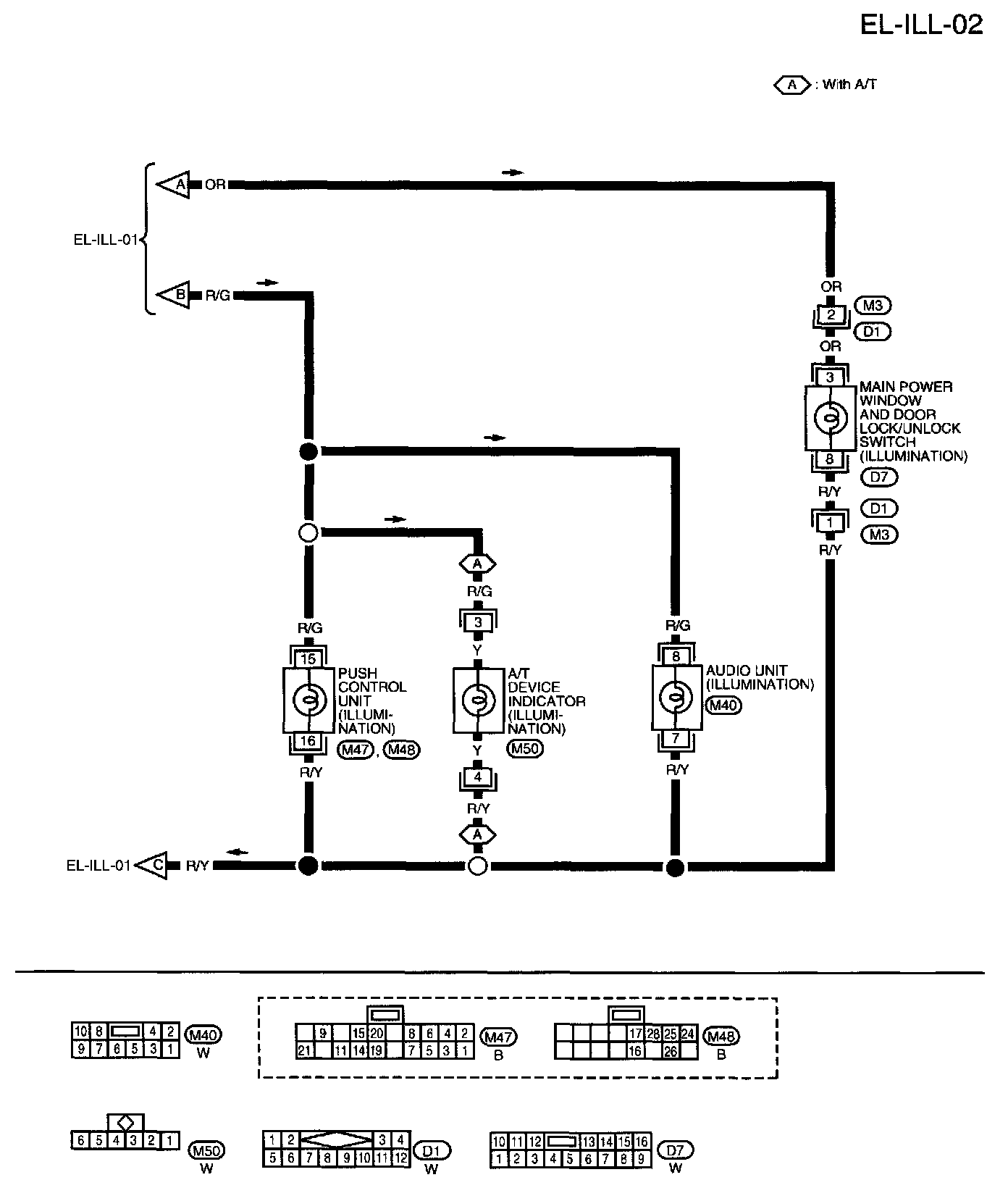

EL-Ill-02
EL-Ill-02
EL-ILL-02:
