Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Panel, Gauges and Warning Indicators
>>
Cigarette Lighter
Cigarette Lighter

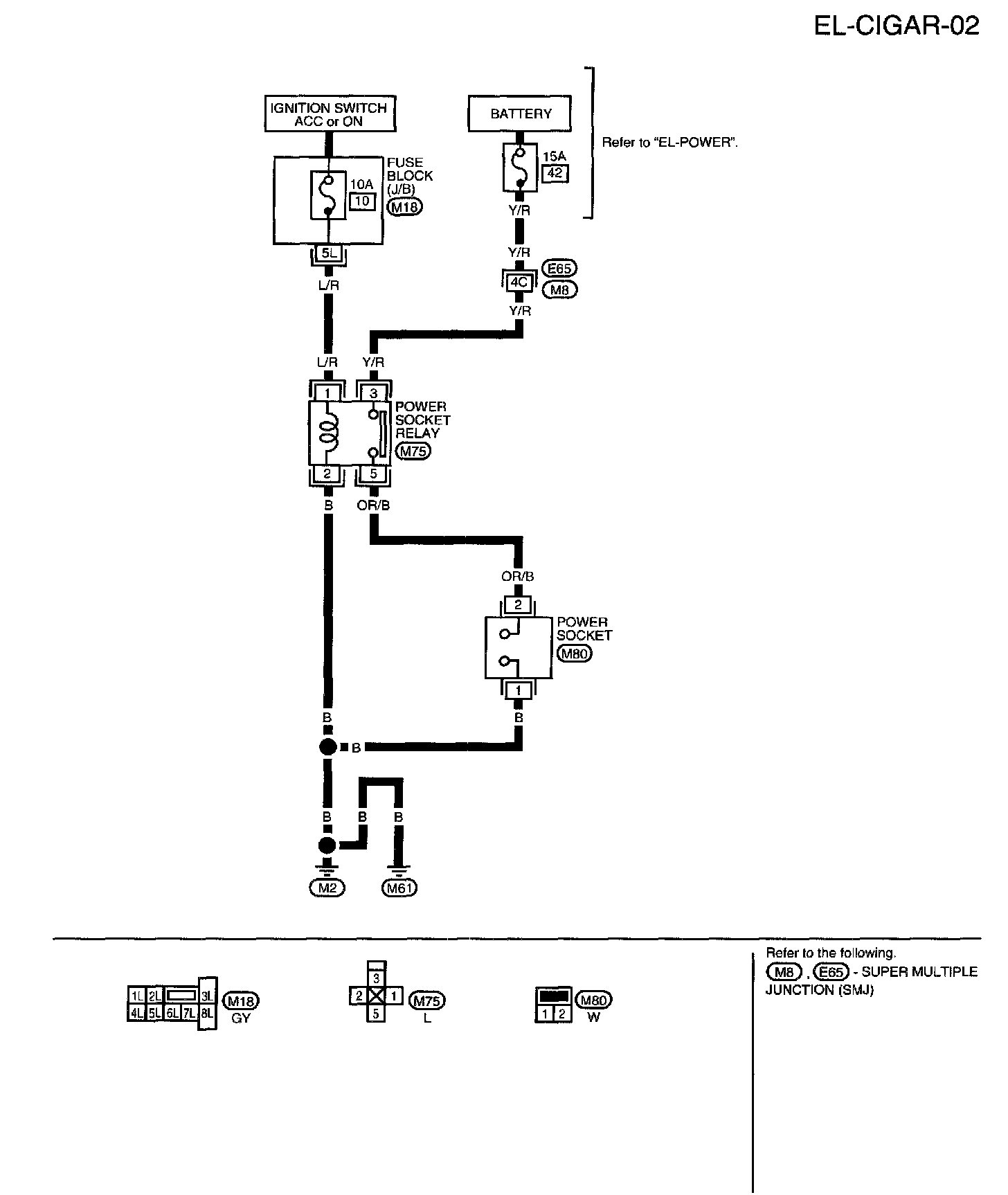

EL-CIGAR-02:

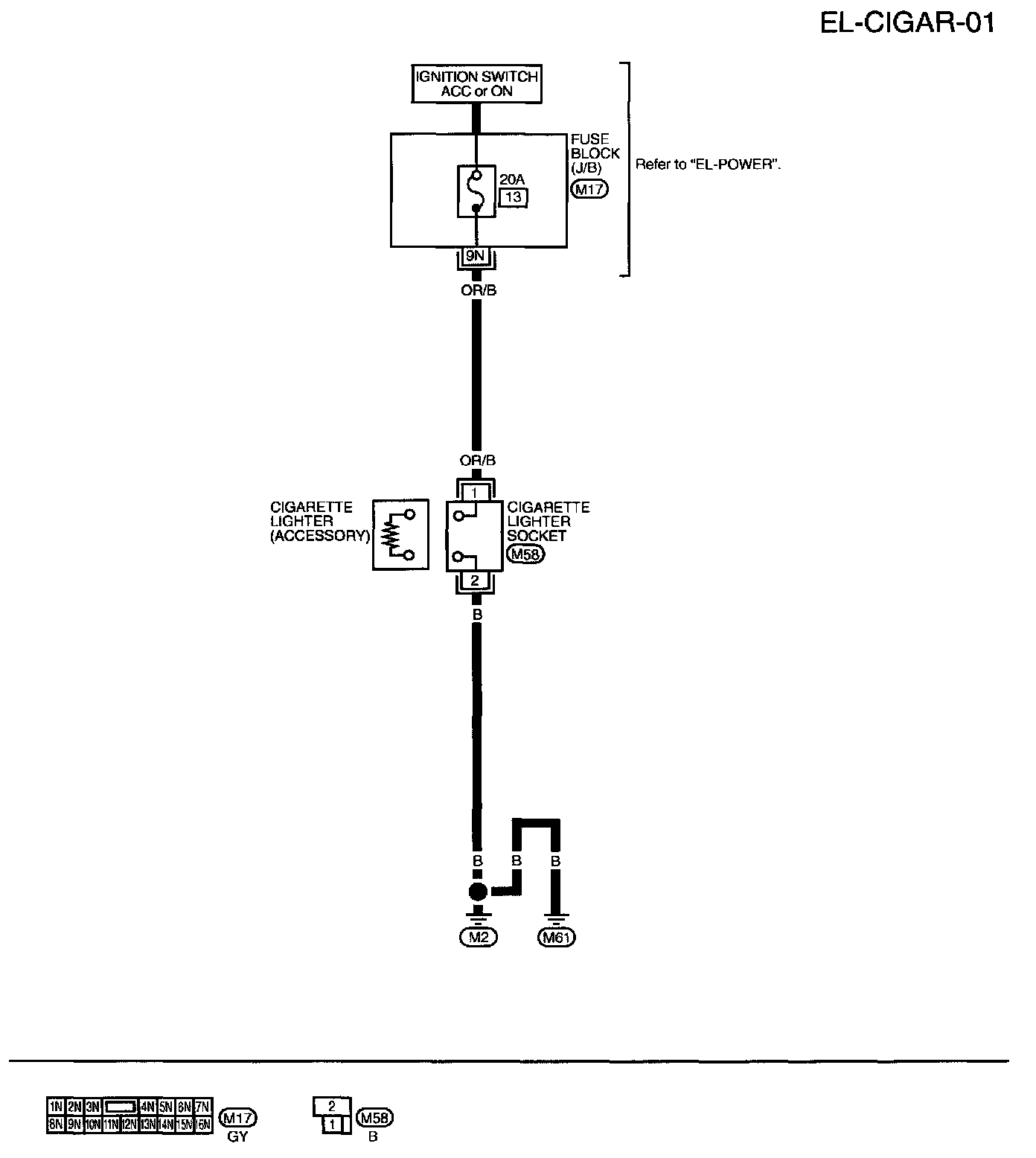

EL-CIGAR-01:
