Audible Warning Device
EL-CHIME-01 (Models With Power Door Locks):

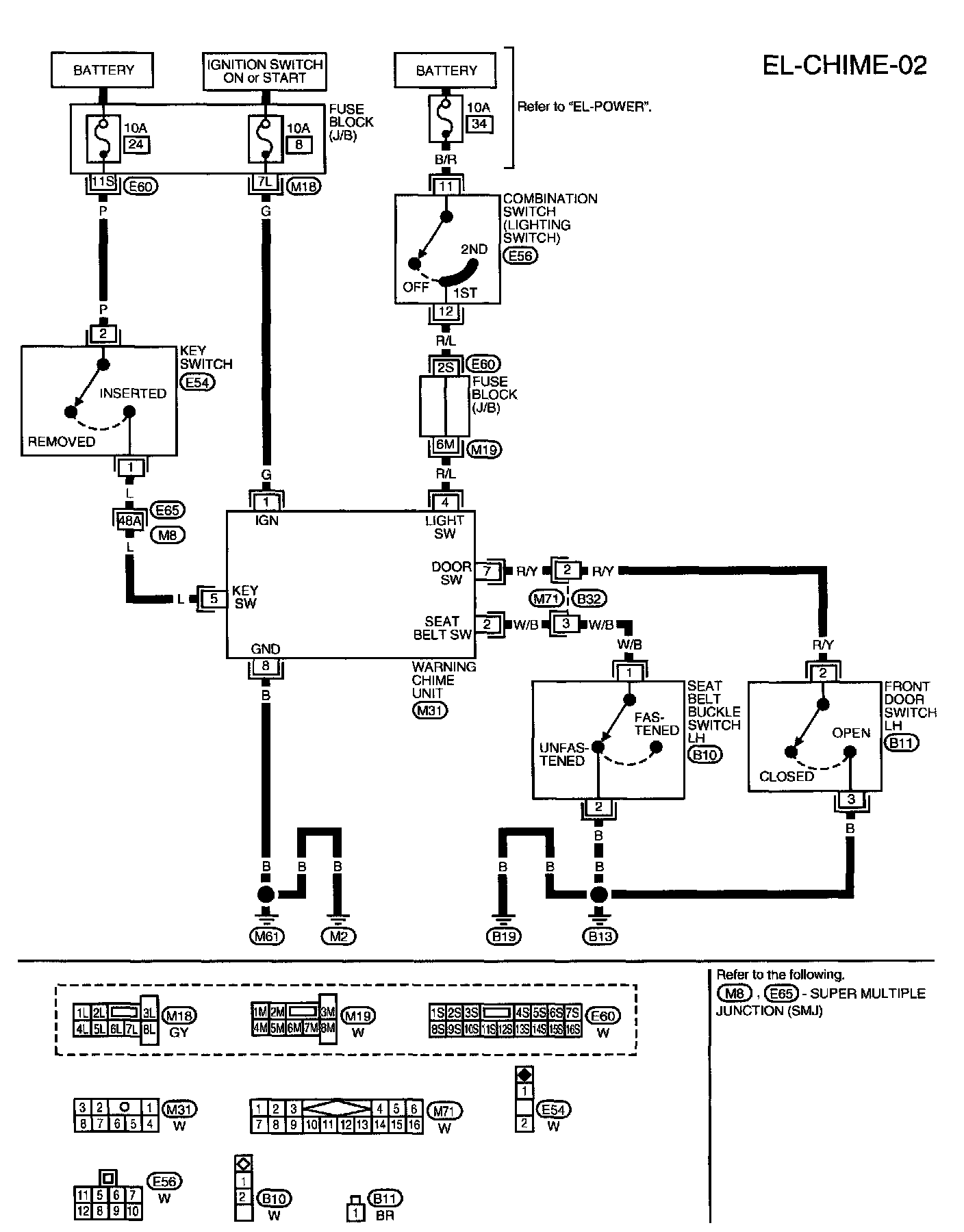

EL-CHIME-02 (Models Without Power Door Locks):
