Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
EL Diagrams (Electrical Systems)
>>

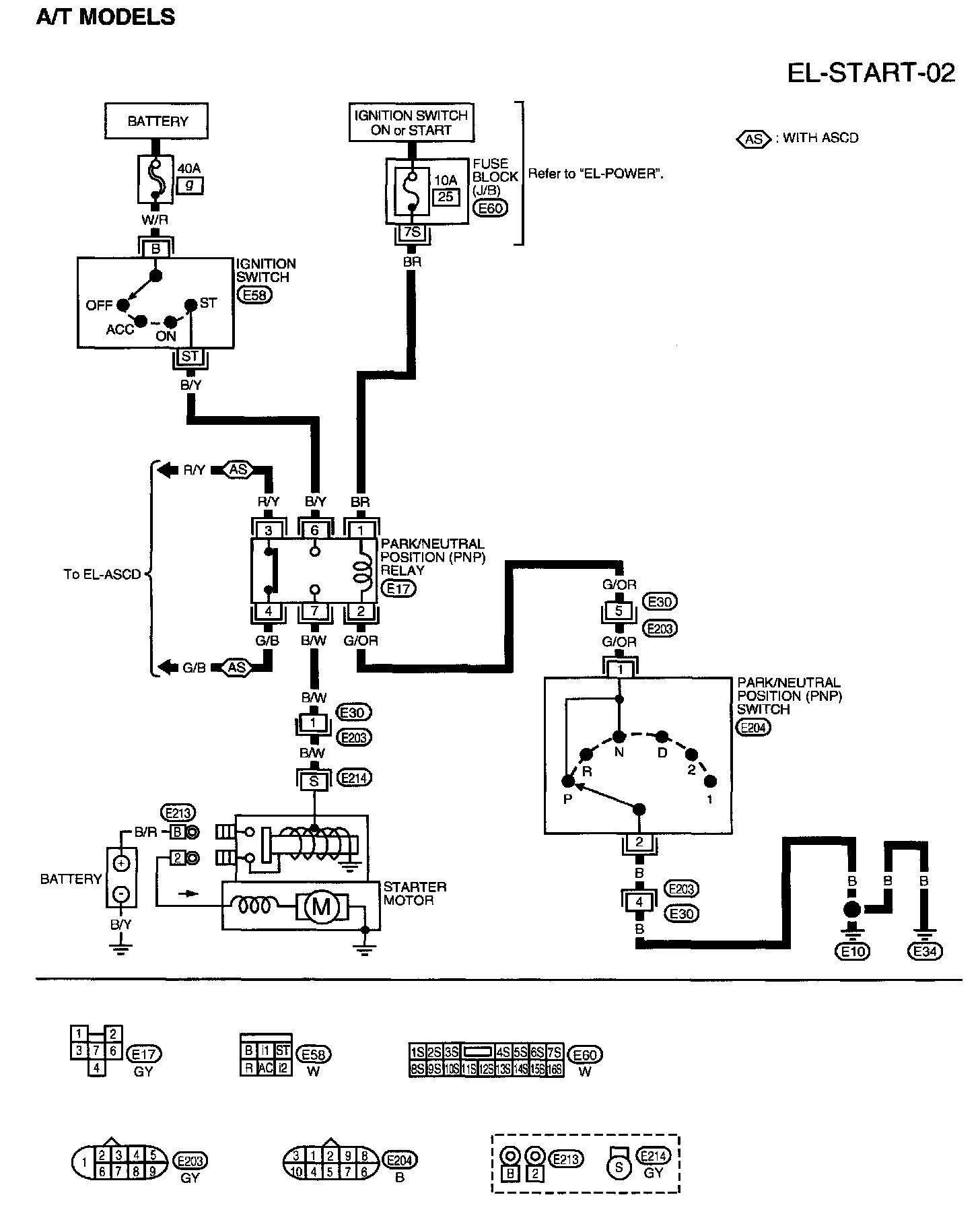

EL-START-02 (A/T Models)
EL-START-02 (A/T Models)
EL-START-02 (A/T Models):
EL-START-01 (M/T Models):
