Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagrams By Diagram Name
>>
EC Diagrams (Engine Control System)
>>
EC-BYPS/V
EC-BYPS/V

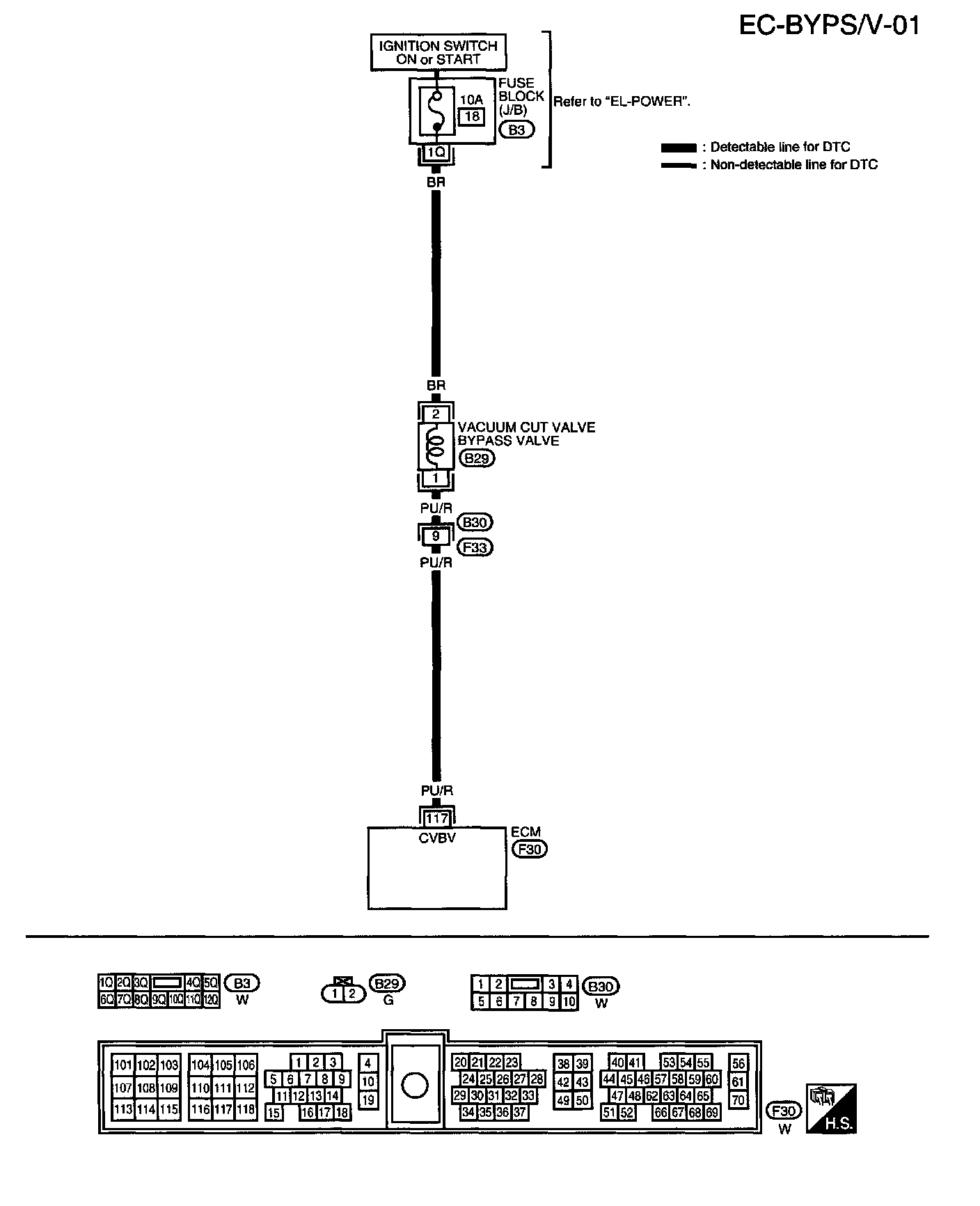

EC-BYPS/V-01:
