BR Diagrams (Anti-Lock Brake System)

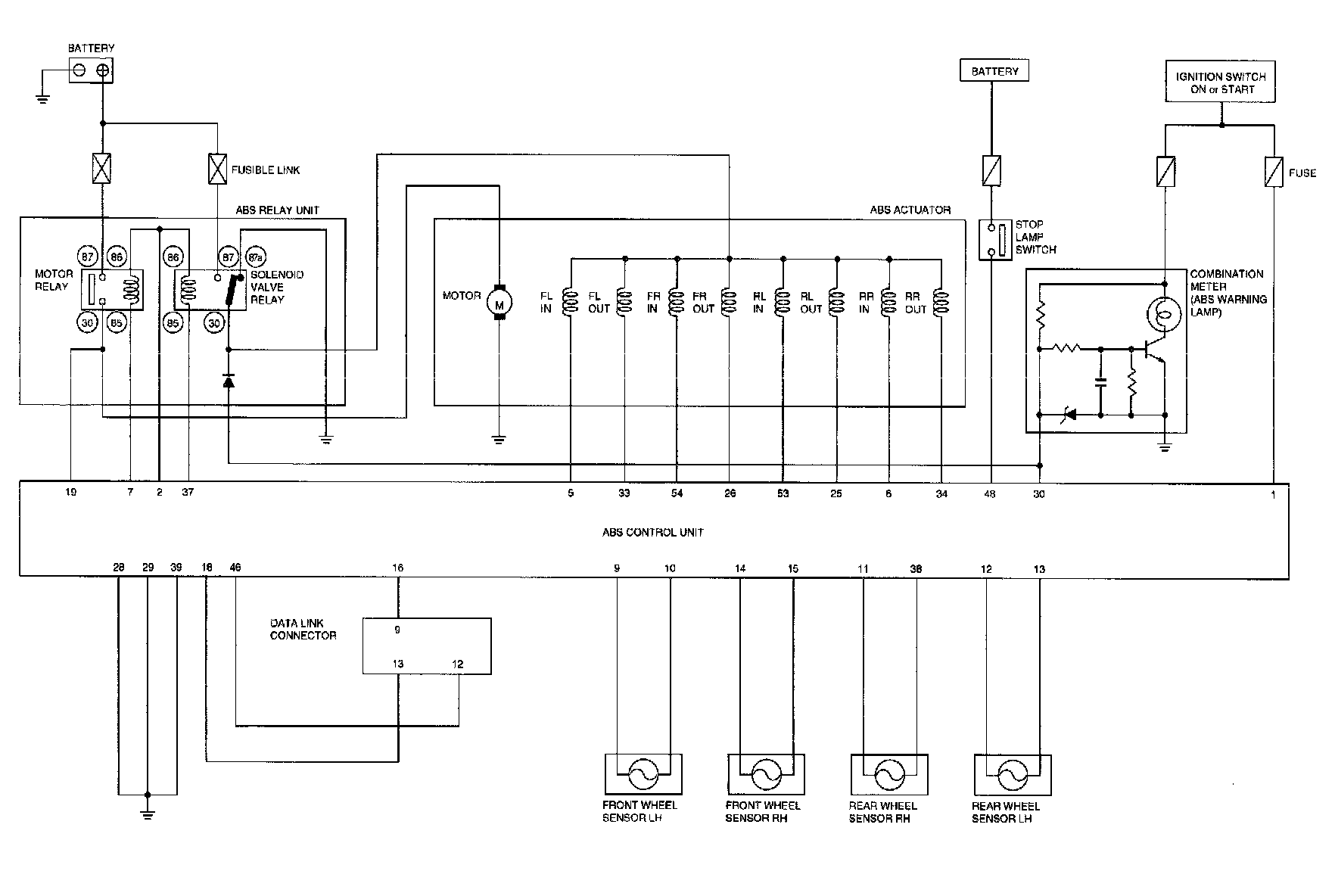

Electrical Schematic:

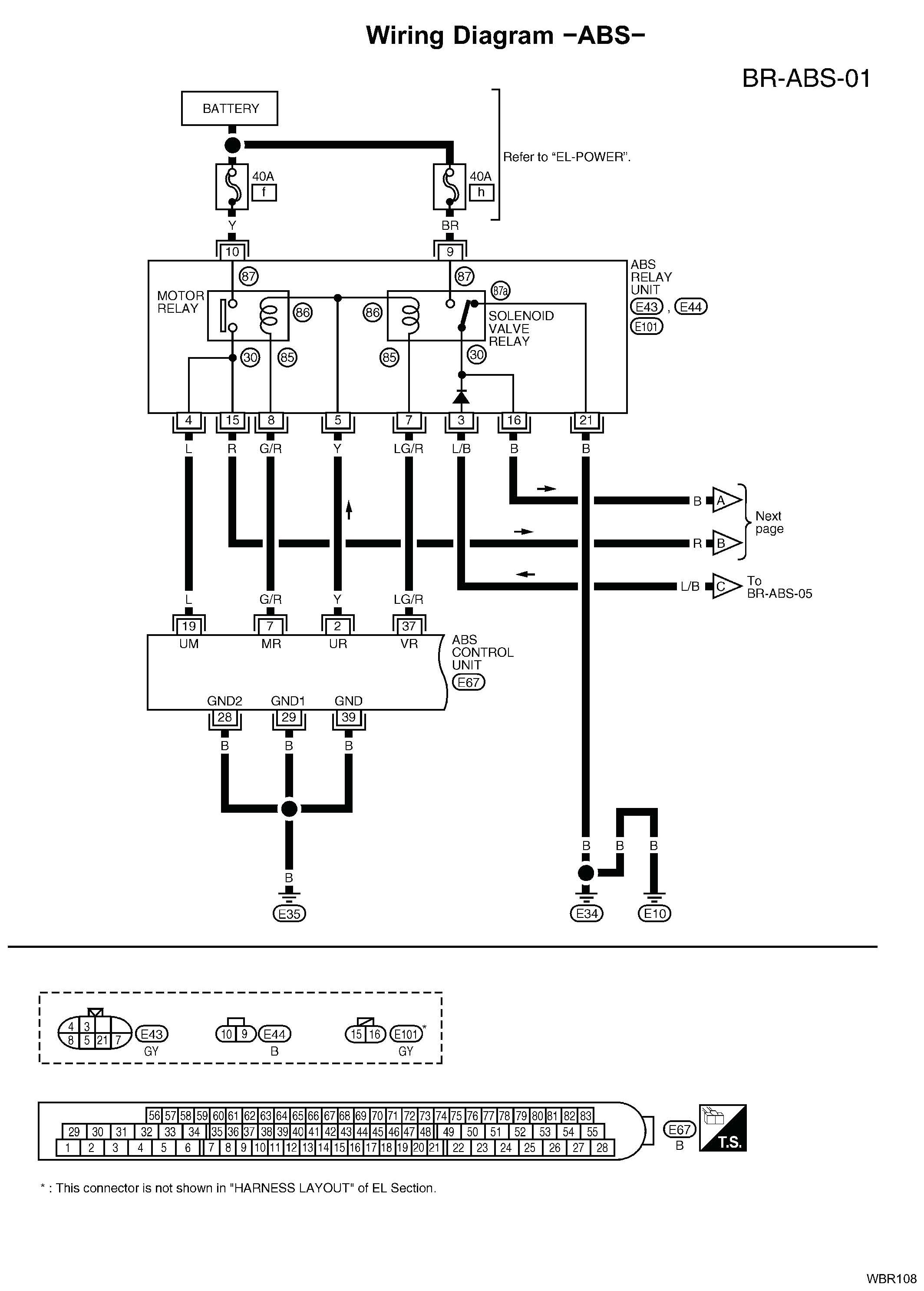

Part 1 Of 5:

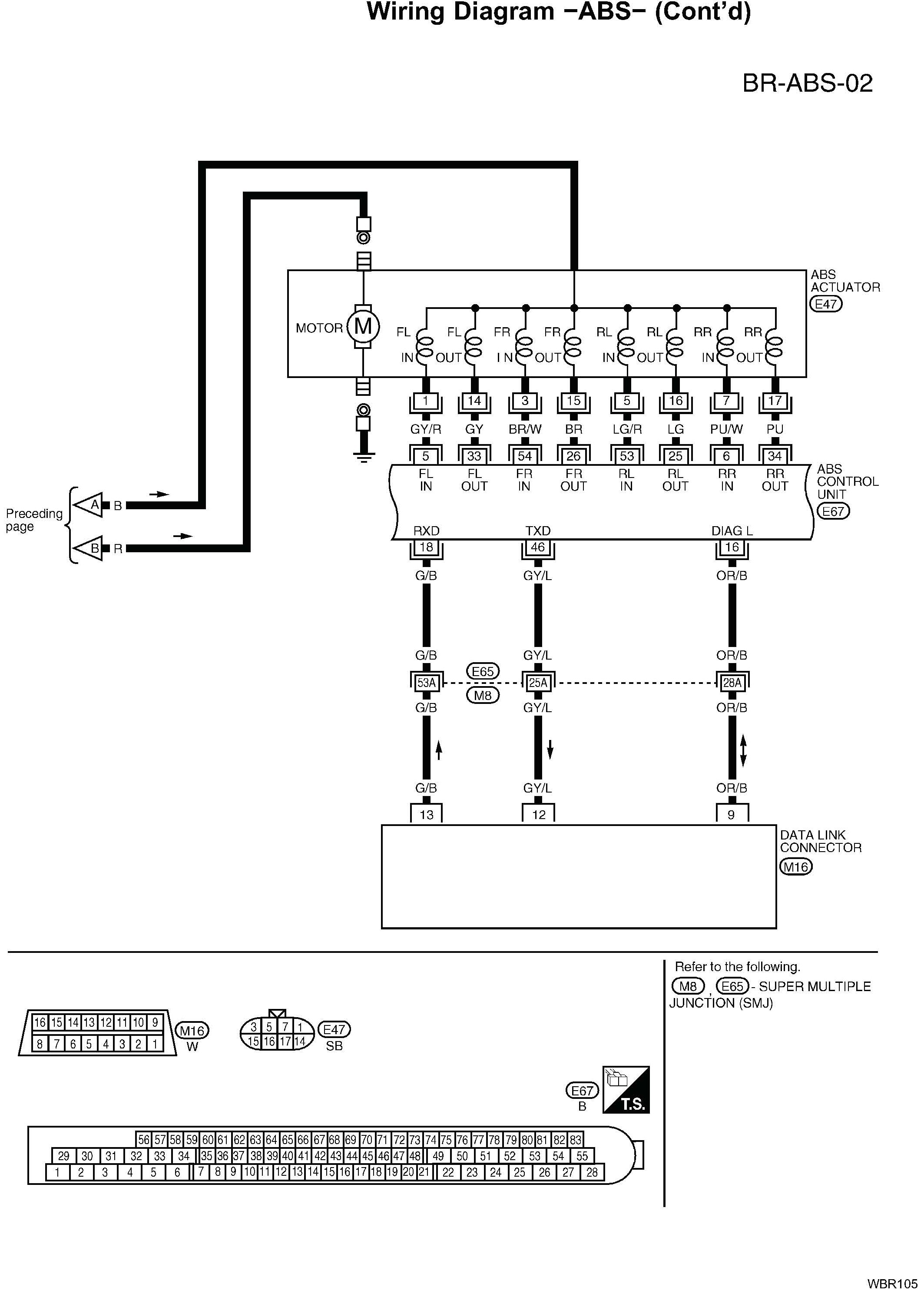

Part 2 Of 5:

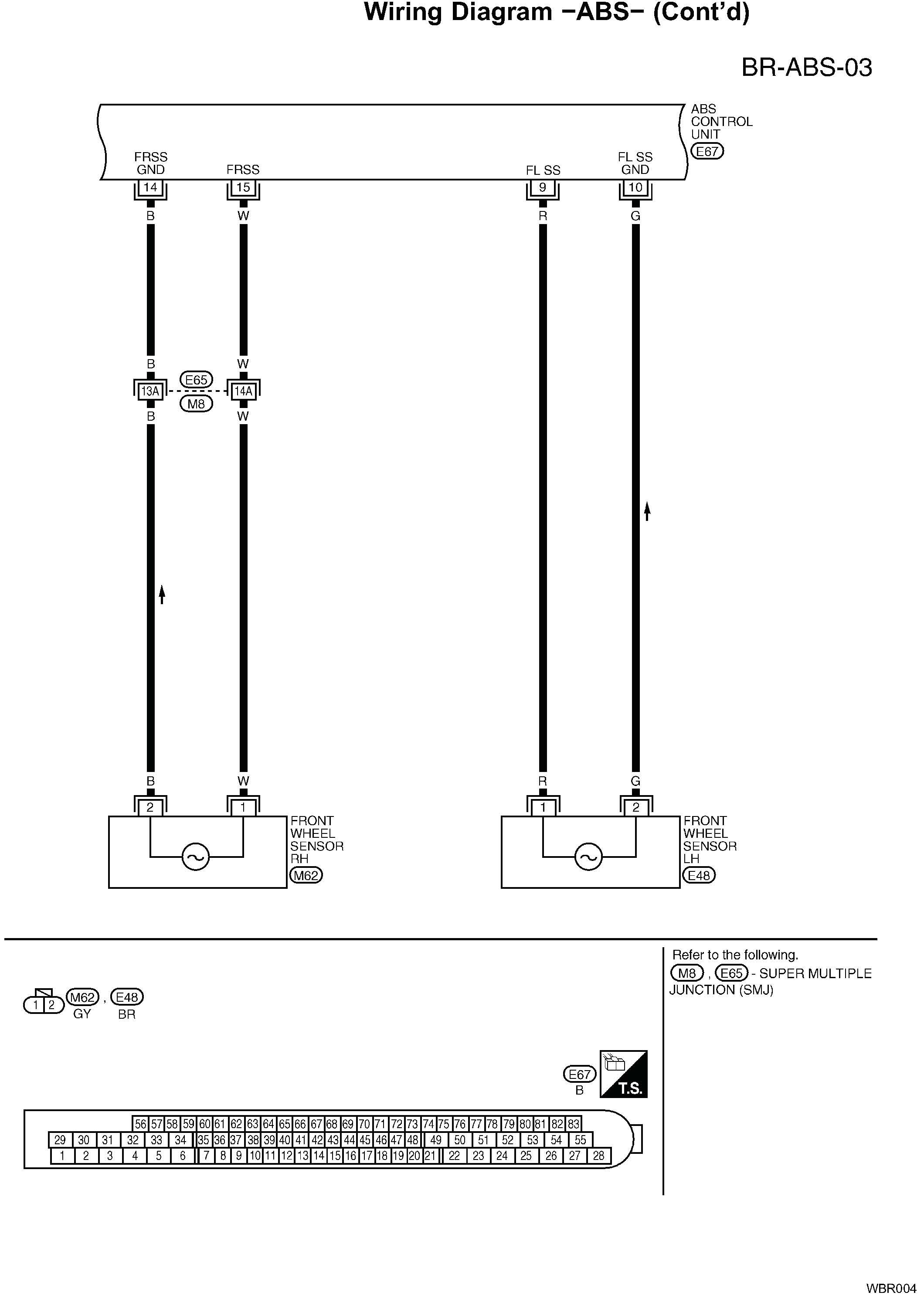

Part 3 Of 5:

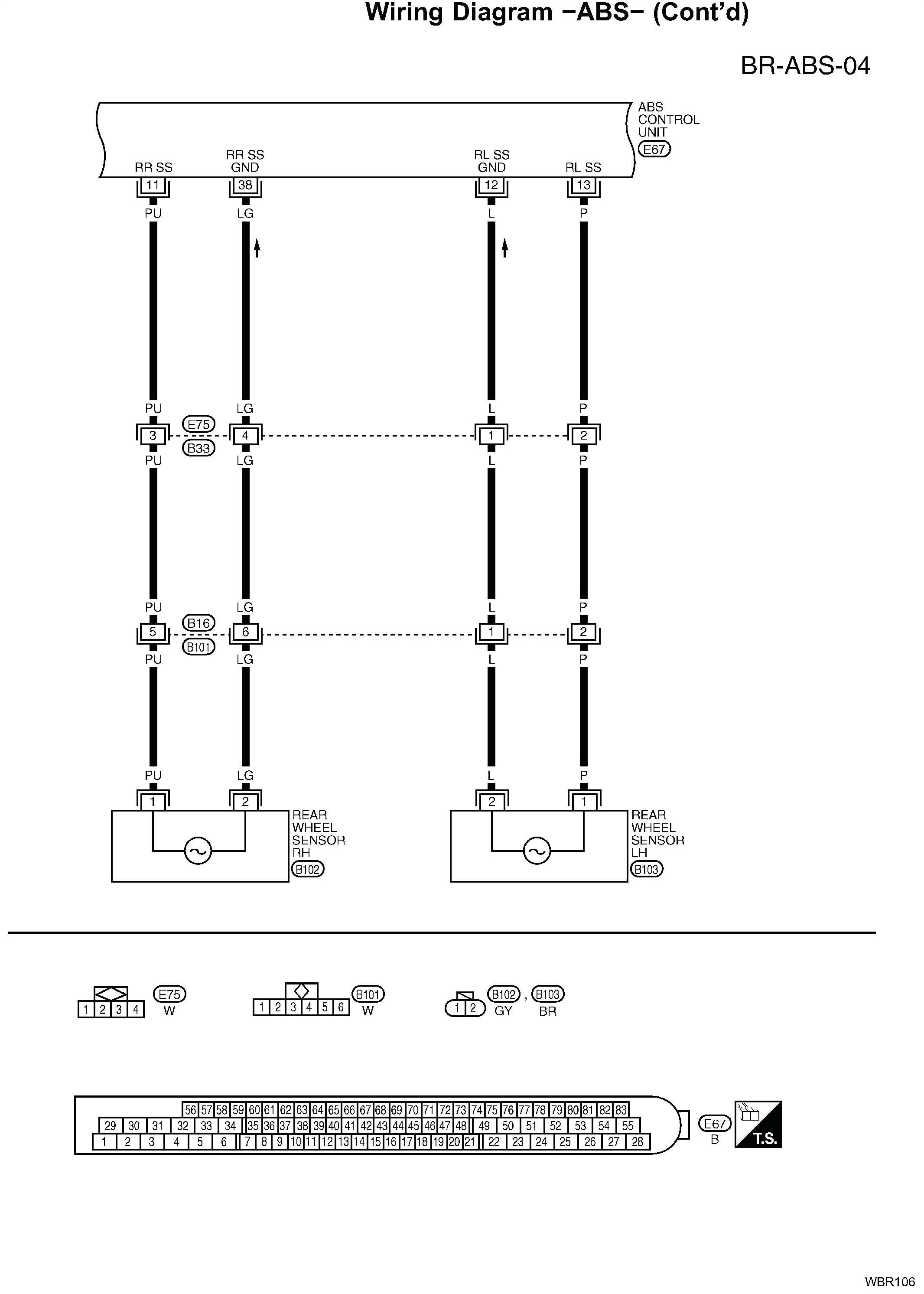

Part 4 Of 5:

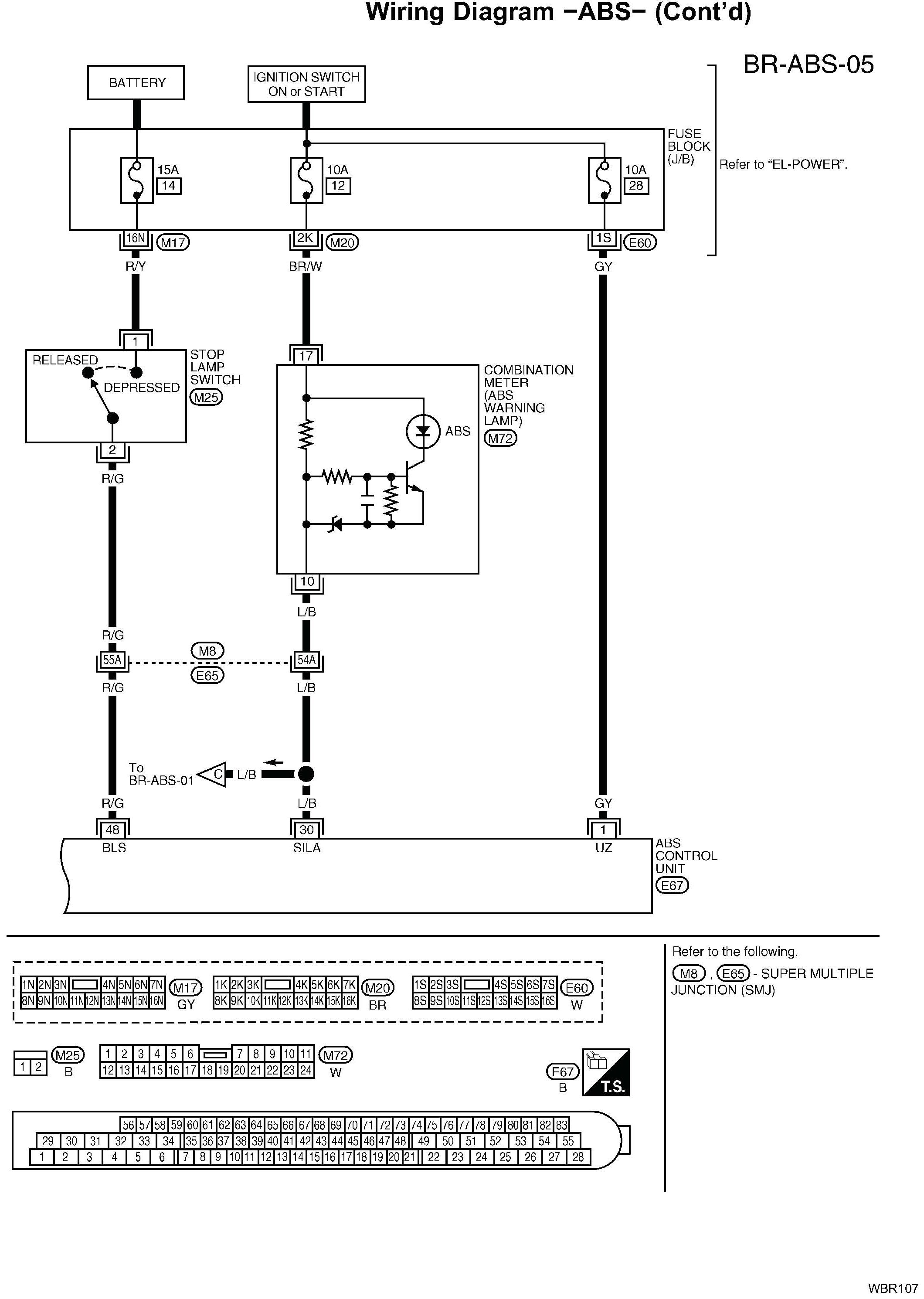

Part 5 Of 5:
