FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2001
>>
Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Vehicle Security (Theft Warning) System
>>
Vehicle Security (Theft Warning) System Diagram
Vehicle Security (Theft Warning) System Diagram

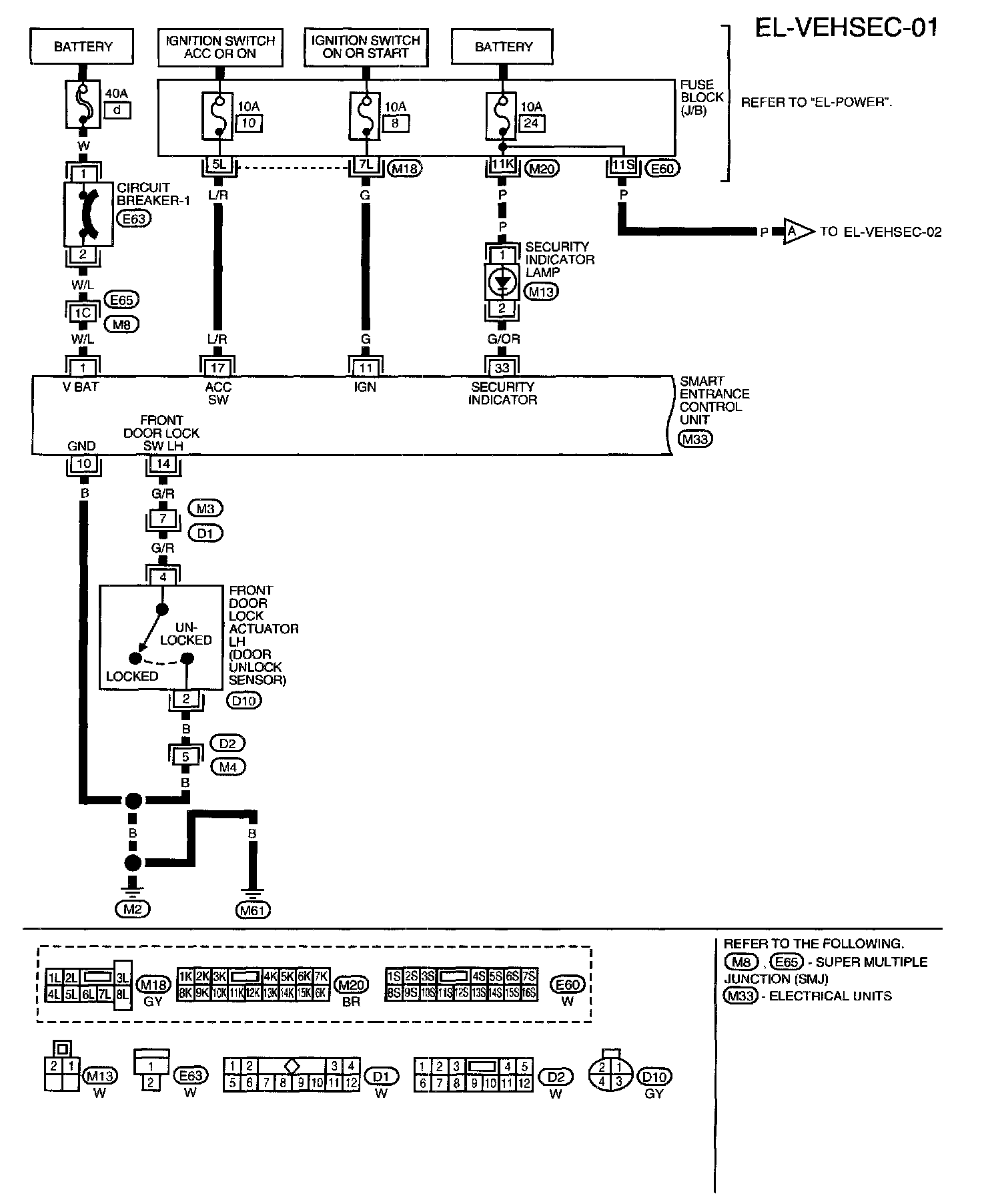

EL-VEHSEC-01:

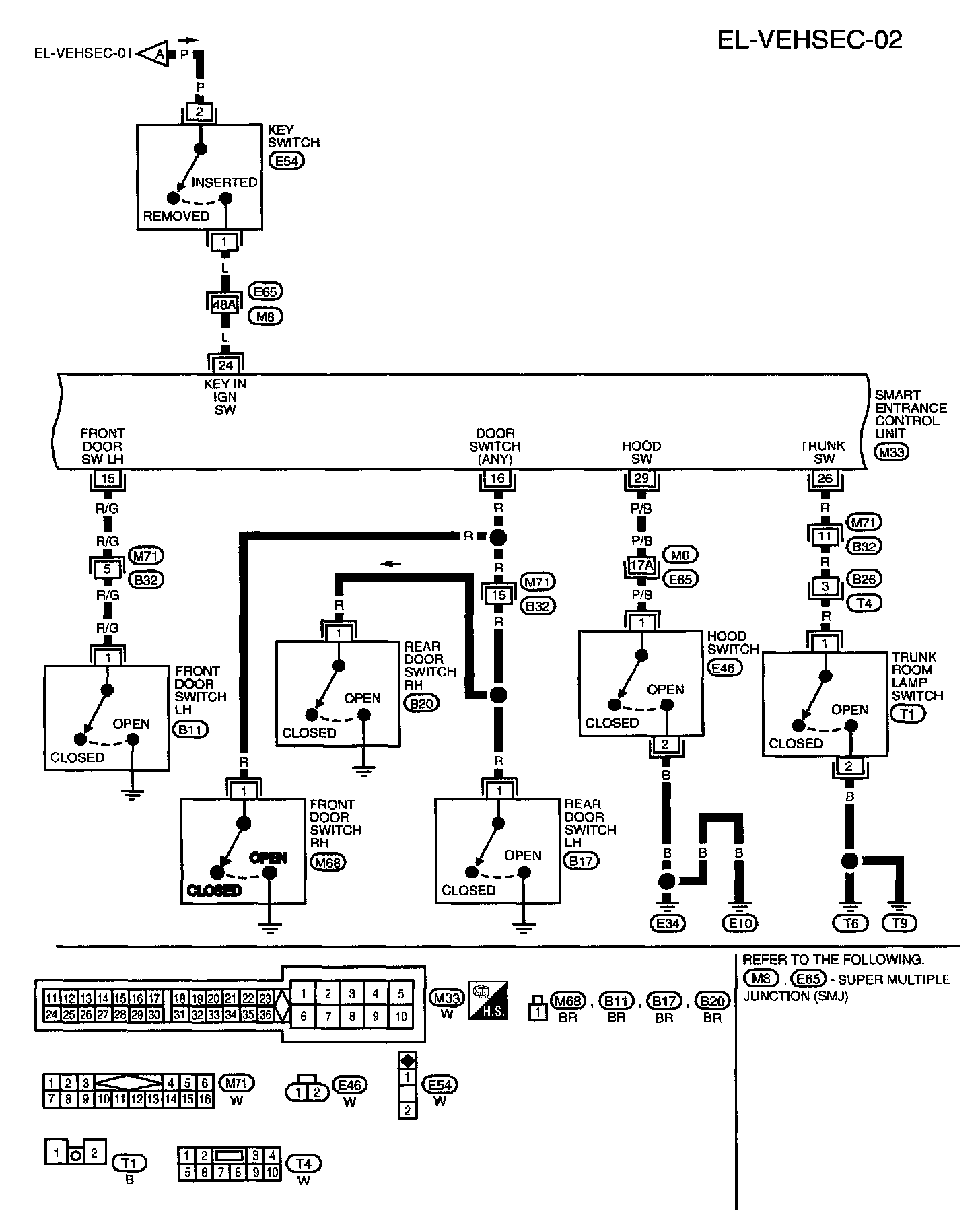

EL-VEHSEC-02:

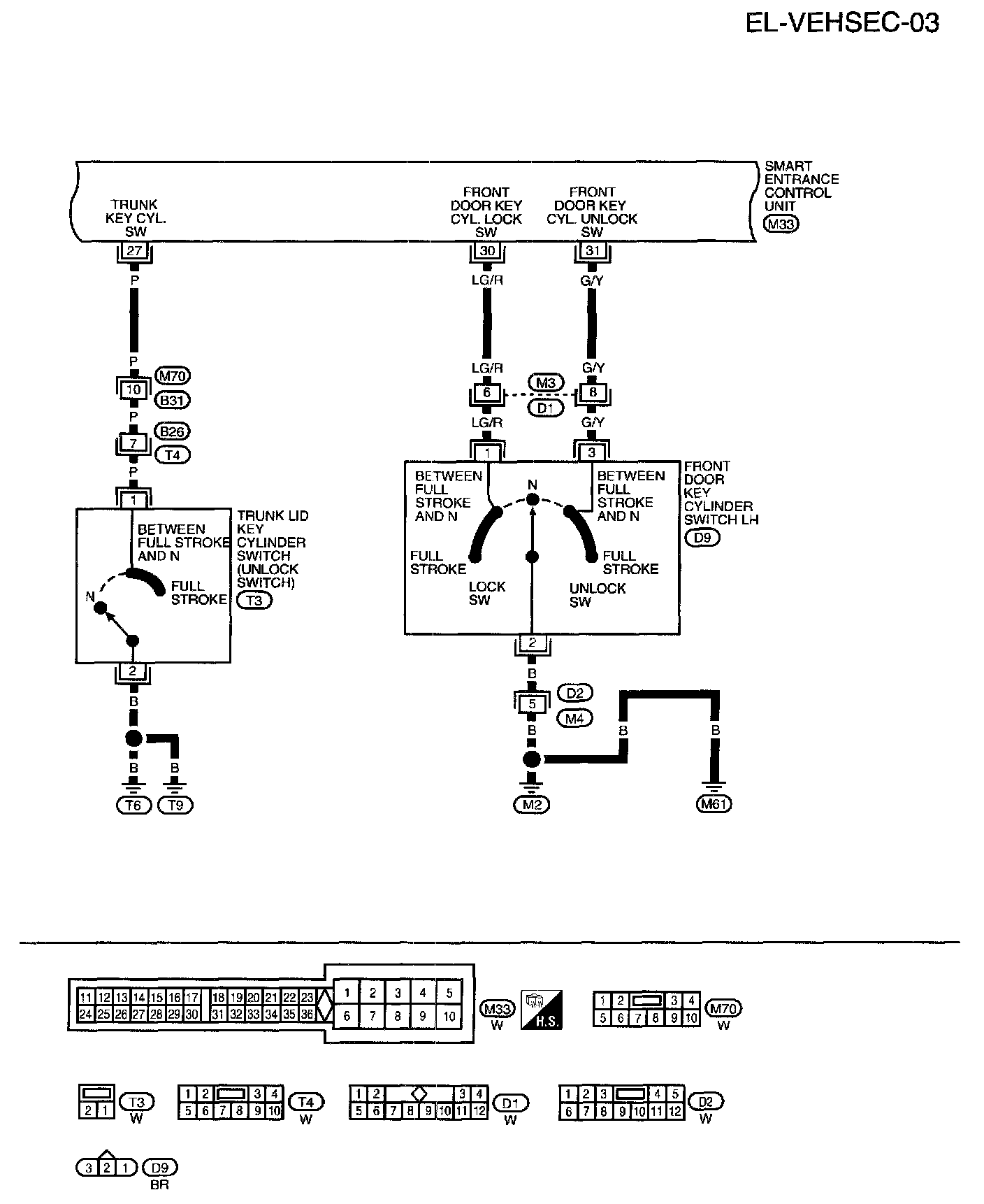

EL-VEHSEC-03:
EL-VEHSEC-04:
