Vacuum Hose

Removal and Installation

CAUTION: When installing vacuum hoses, pay attention to the following points:
- Do not apply any oil or lubricants to vacuum hose and check valve.





- Insert vacuum tube into vacuum hose as shown.

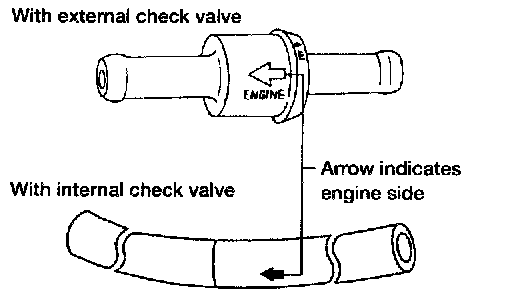

- Install check valve or vacuum line with internal check valve, paying attention to its direction arrow.

Inspection
HOSES AND CONNECTORS
Check vacuum lines, connections and check valve for airtightness, improper attachment, chafing or deterioration.

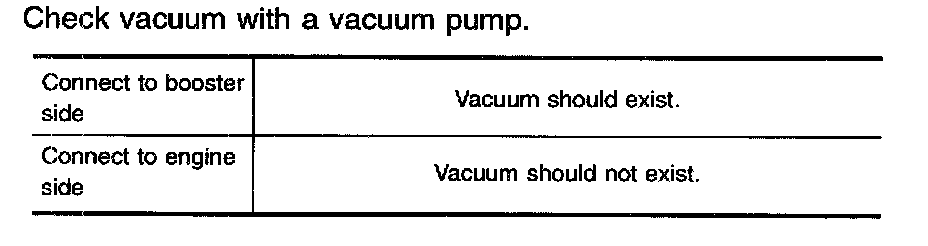

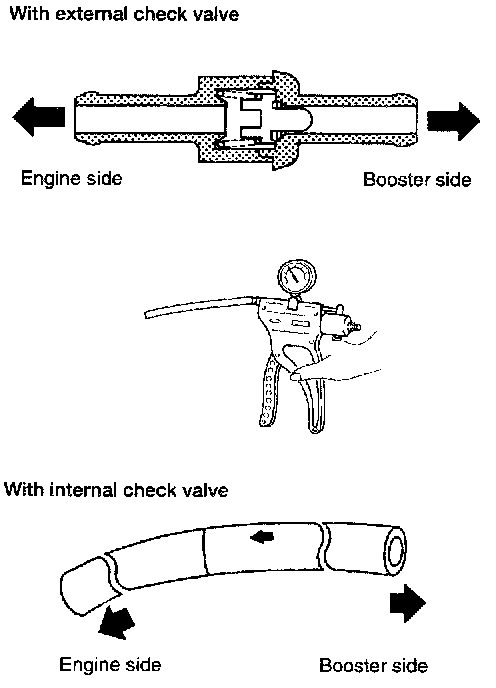

CHECK VALVE
