Hydraulic Control Assembly - Antilock Brakes: Service and Repair

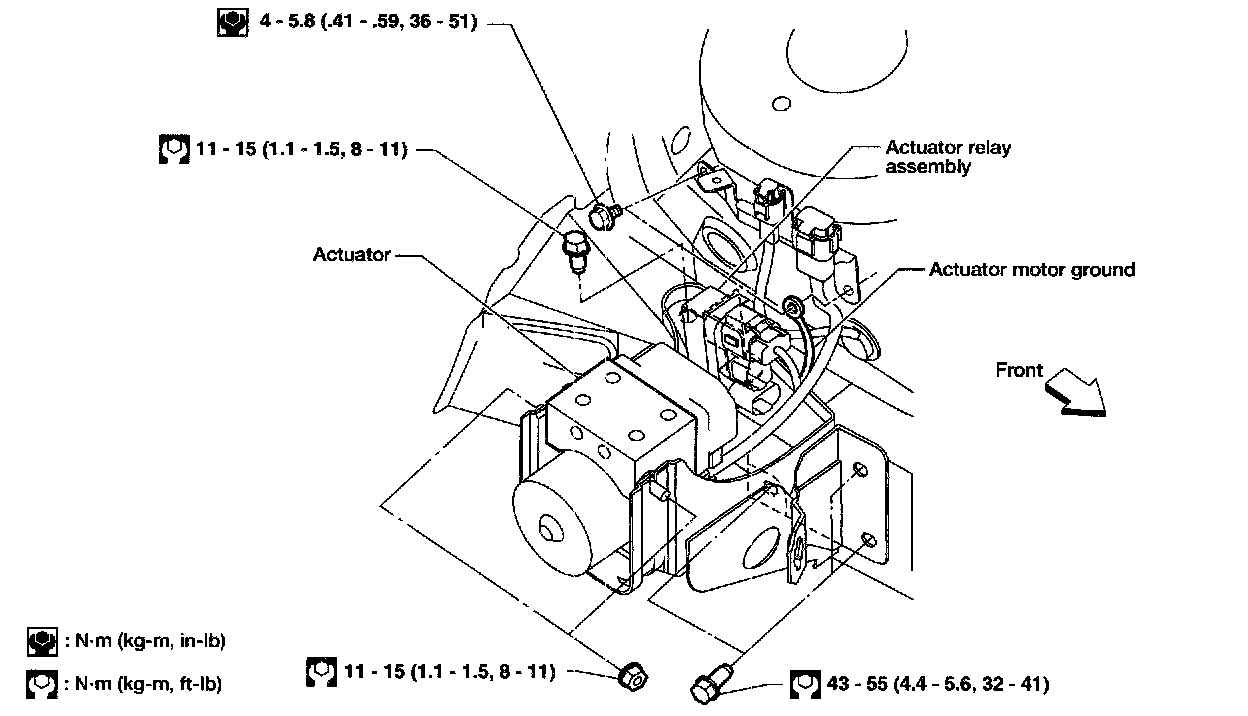

ACTUATOR

1. Disconnect battery cable.
2. Remove actuator.

CAUTION: After installation, refill brake fluid and bleed air.
