Ground Circuit Check

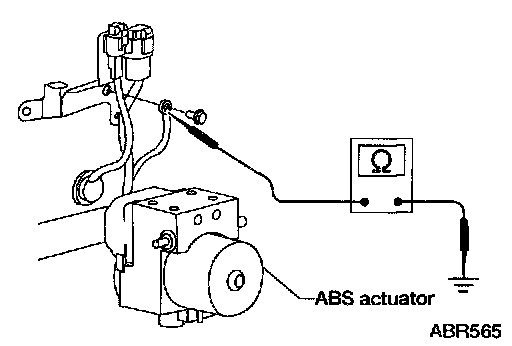

ACTUATOR MOTOR GROUND





- Check resistance between actuator motor ground terminal and body ground.
Resistance: approximately 0 ohms

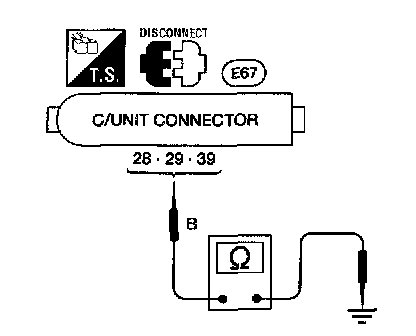

CONTROL UNIT GROUND





- Check resistance between the terminals and ground.
Resistance: approximately 0 ohms

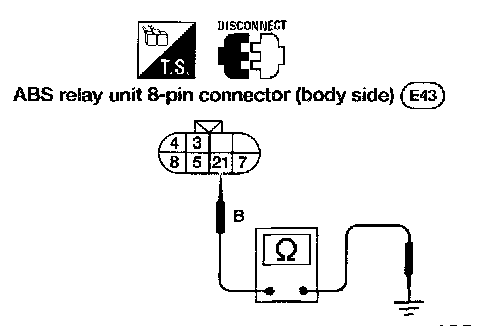

ABS RELAY UNIT GROUND





- Check resistance between ABS relay unit harness 8-pin connector (body side) terminal and ground.
Resistance: approximately 0 ohms
