13. Warning Lamp Stays On When Ignition Is On
13. Warning Lamp Stays On When Ignition Is On

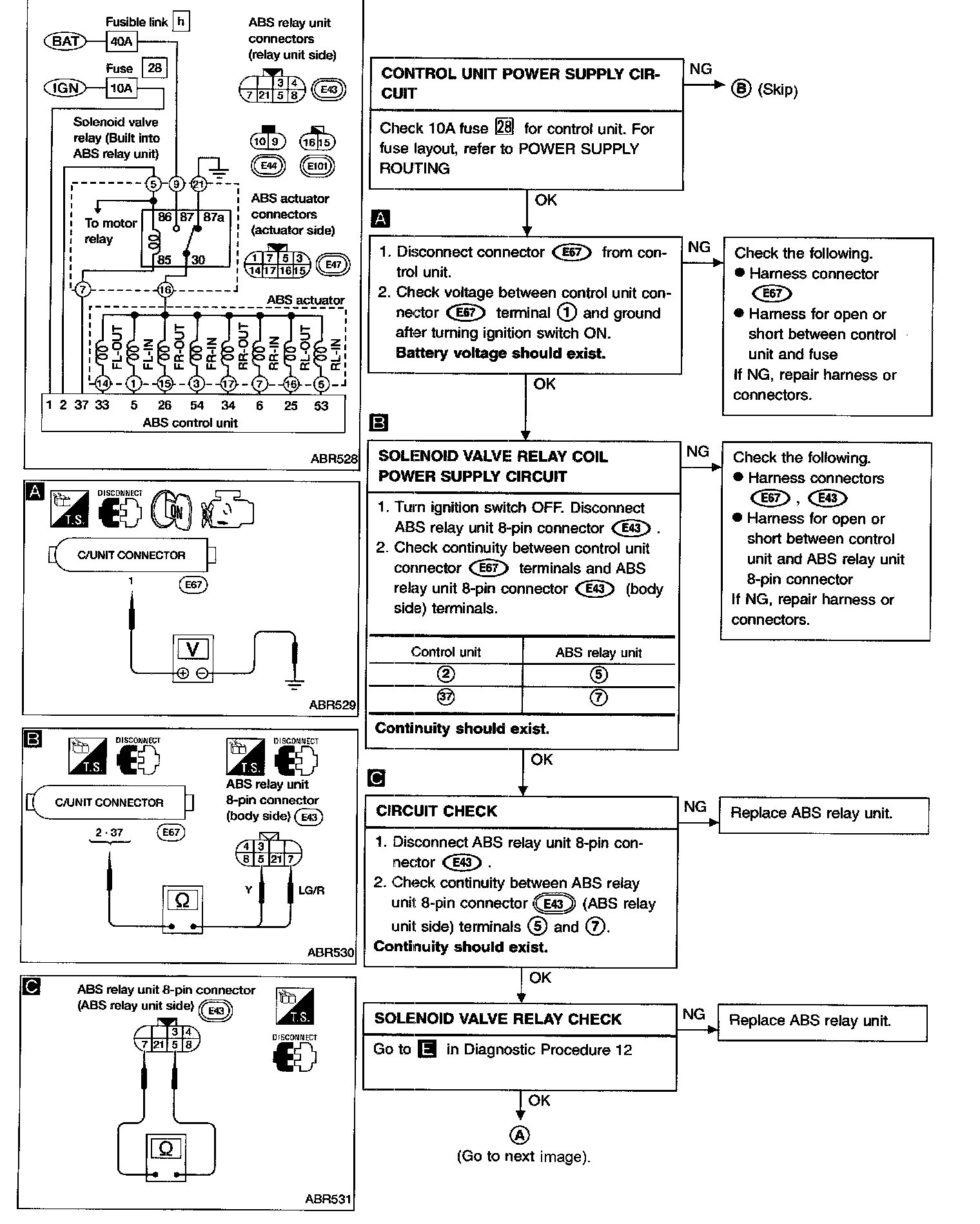

Steps A - C:

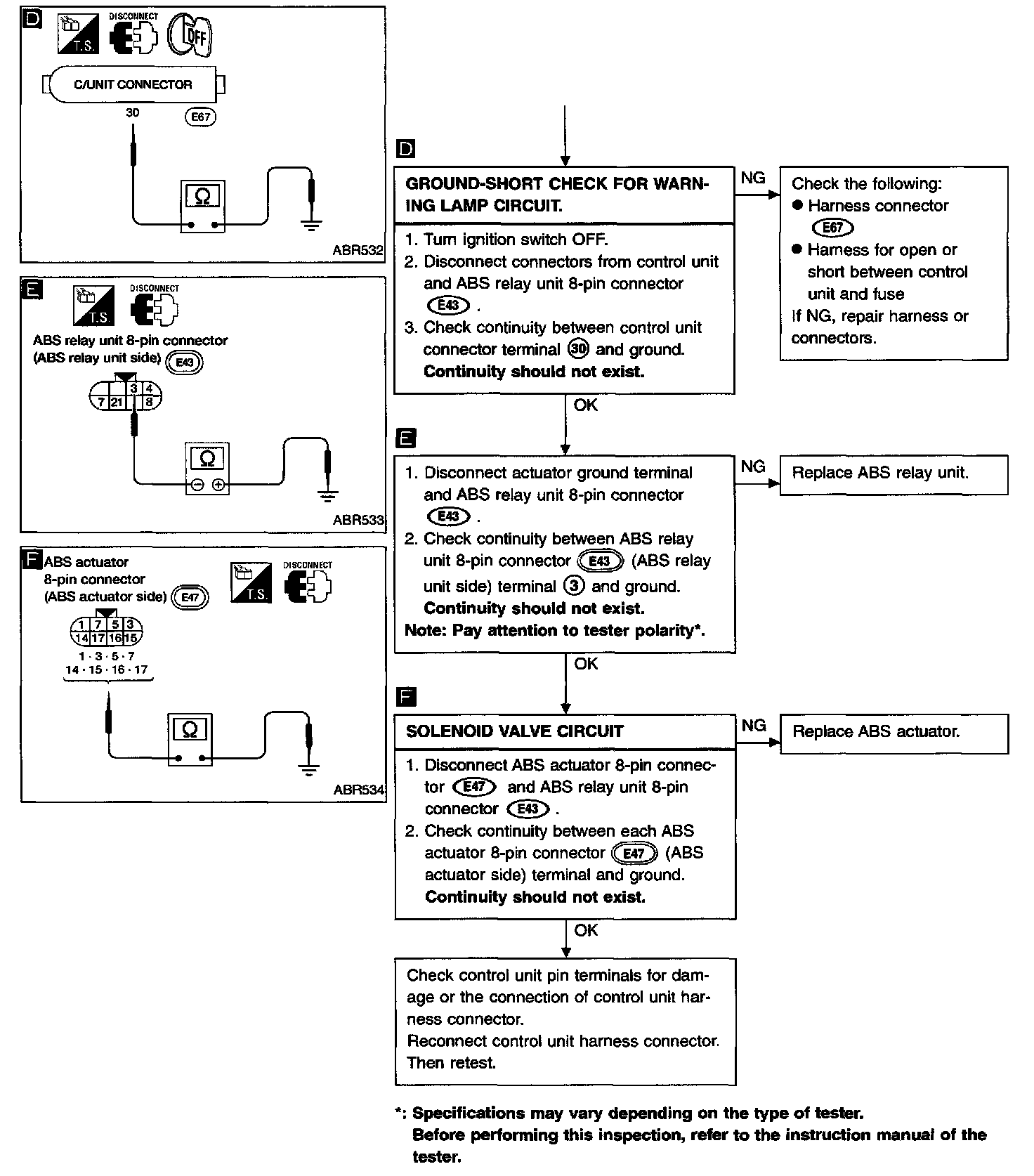

Steps D - F:

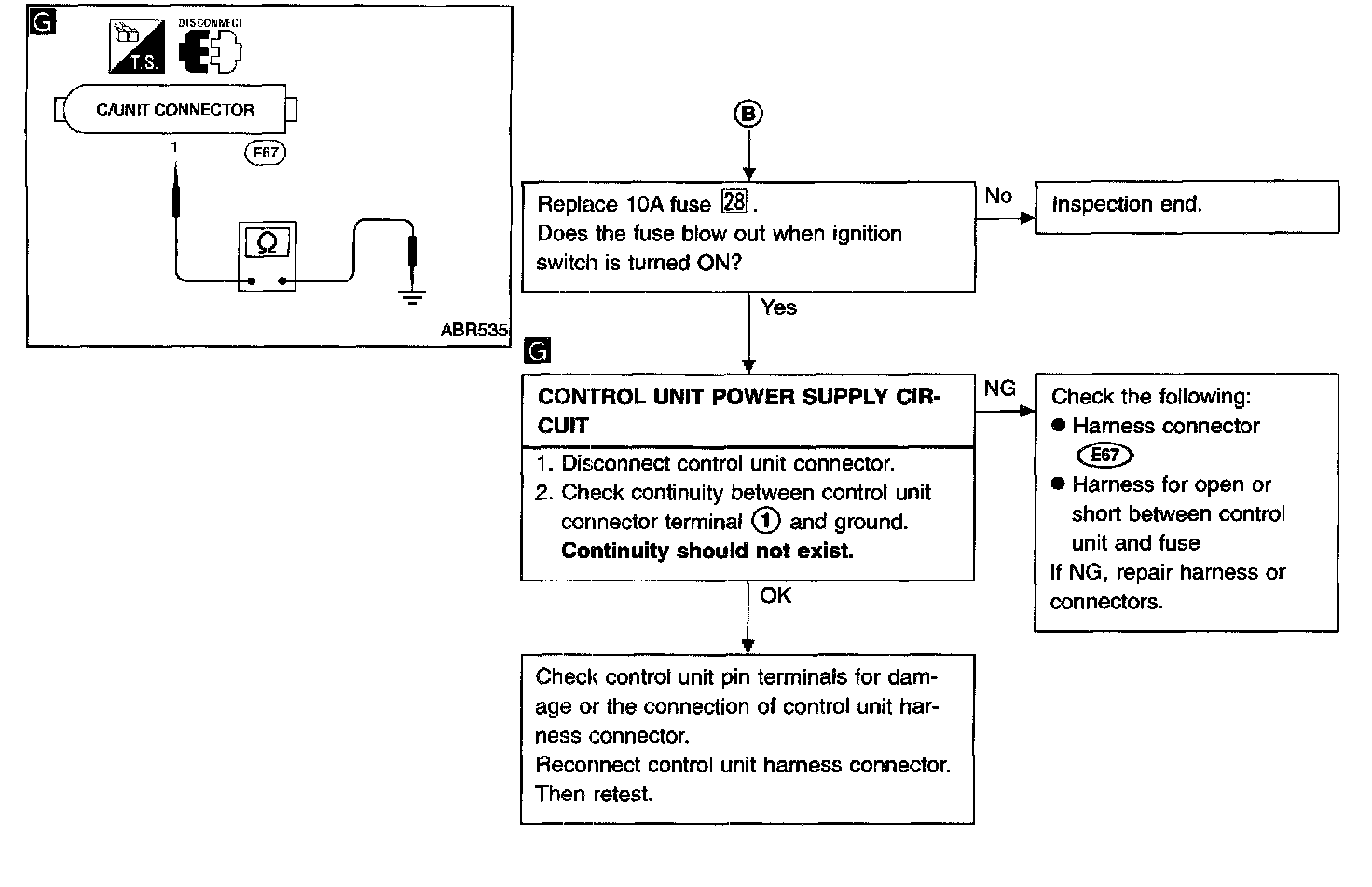

Step G:
Diagnostic Procedure 13 (Warning lamp stays on when ignition switch is turned ON.)
