12. Warning Lamp Does Not Come On When Ignition Is On

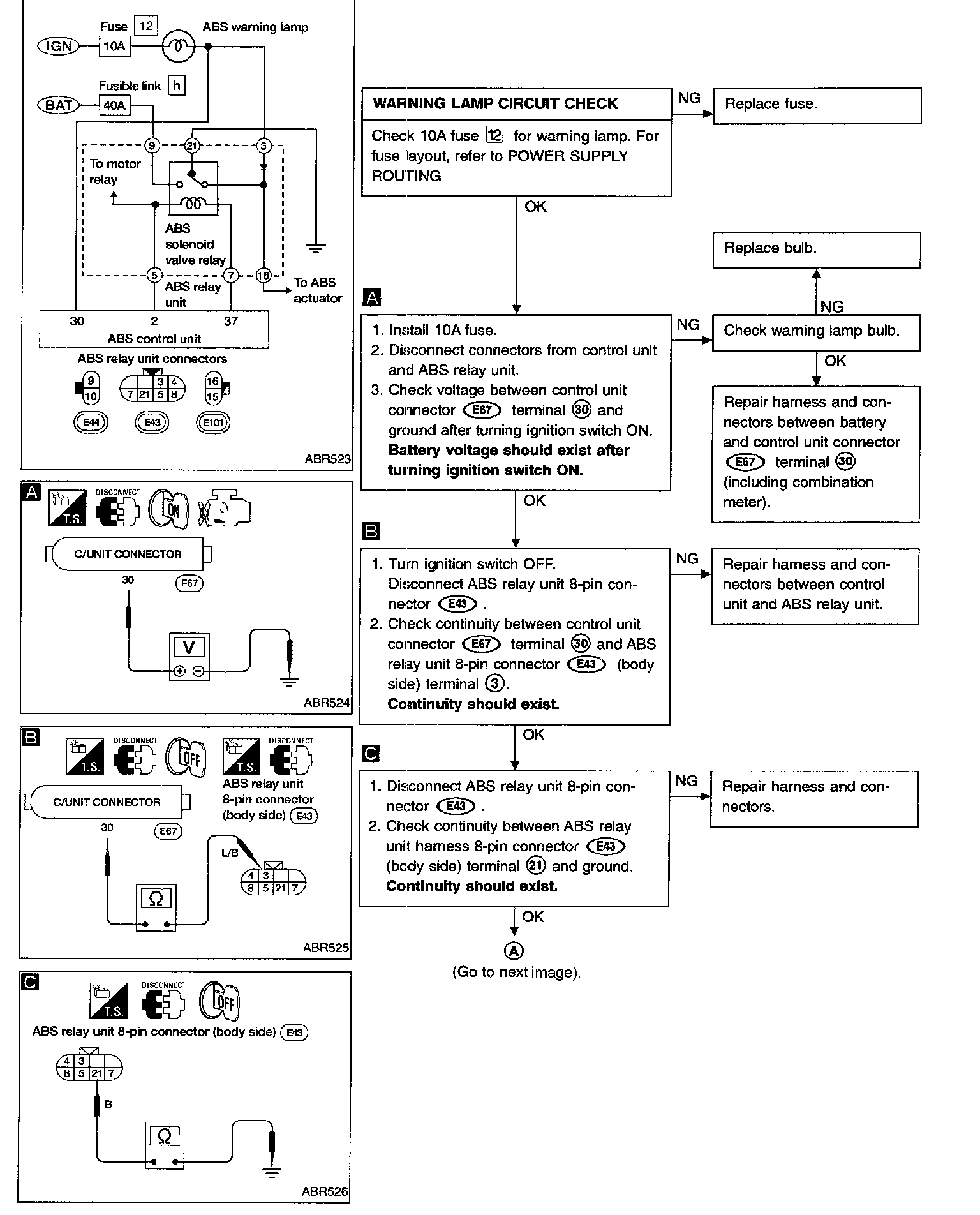

Steps A - C:

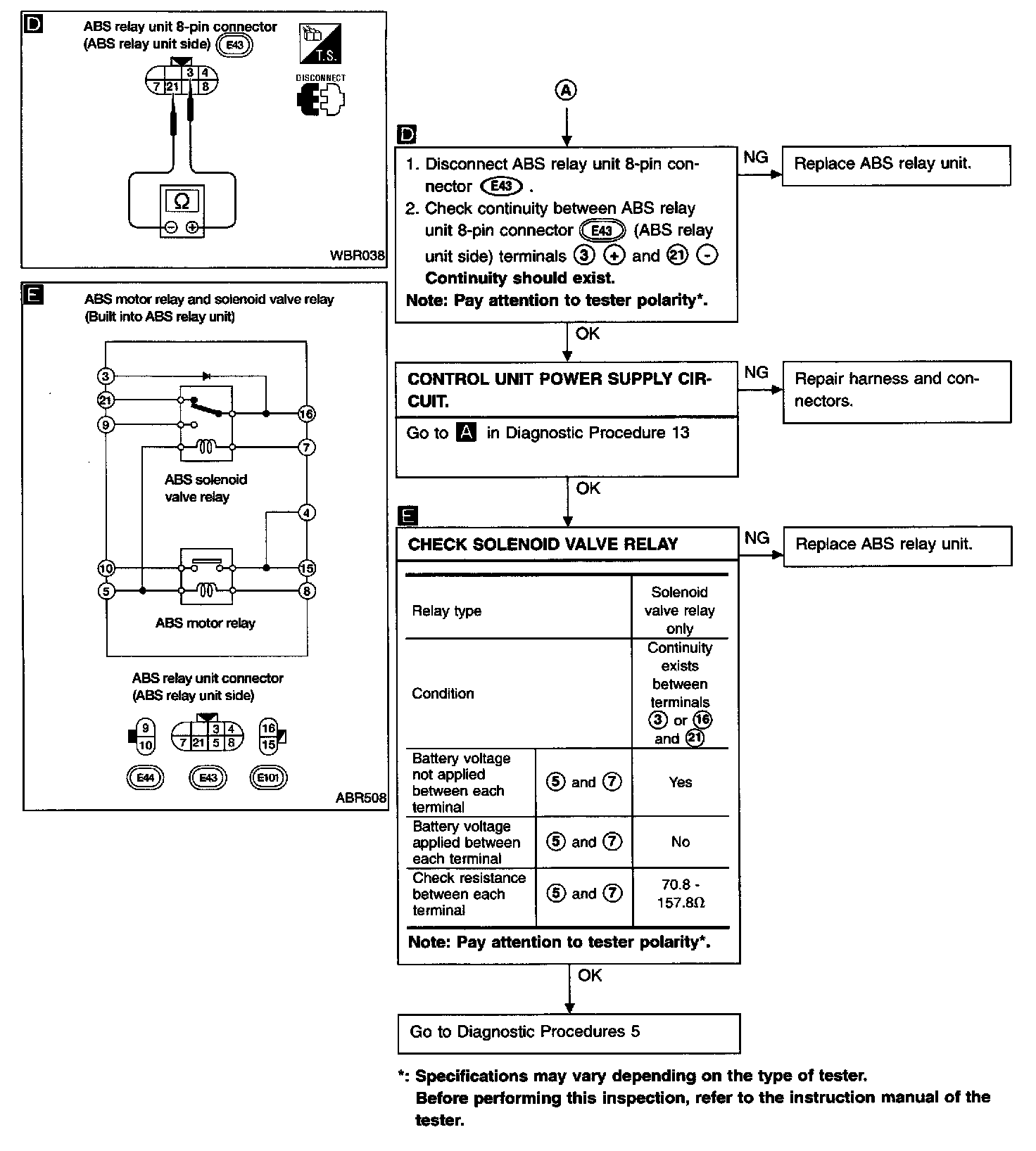

Steps D - F:






Diagnostic Procedure 12 (Warning lamp does not come on when ignition switch is turned ON.)
