With Manufacturer's Scan Tool

CONSULT-II

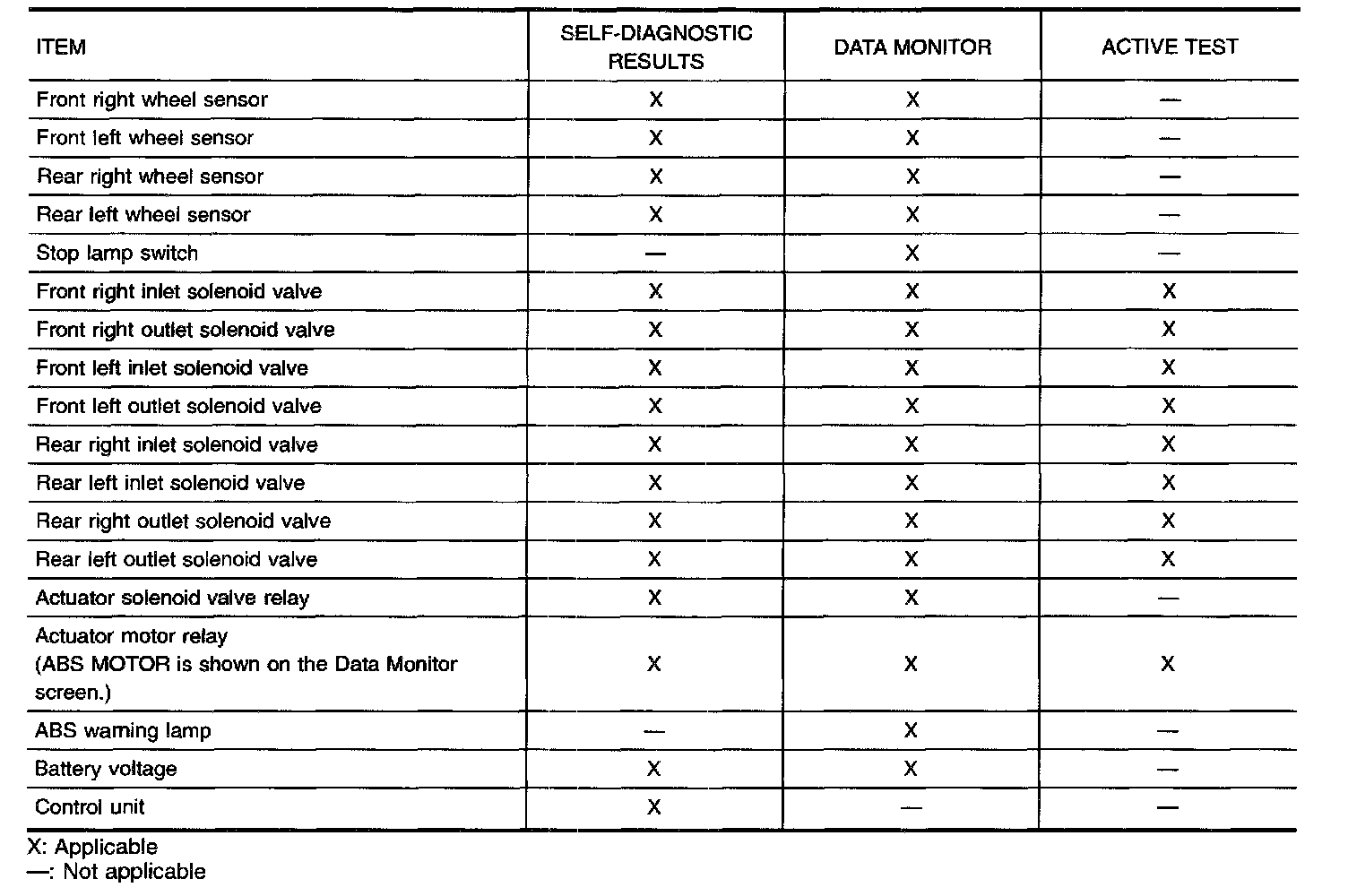

CONSULT-II APPLICATION TO ABS

CONSULT-II Inspection Procedure

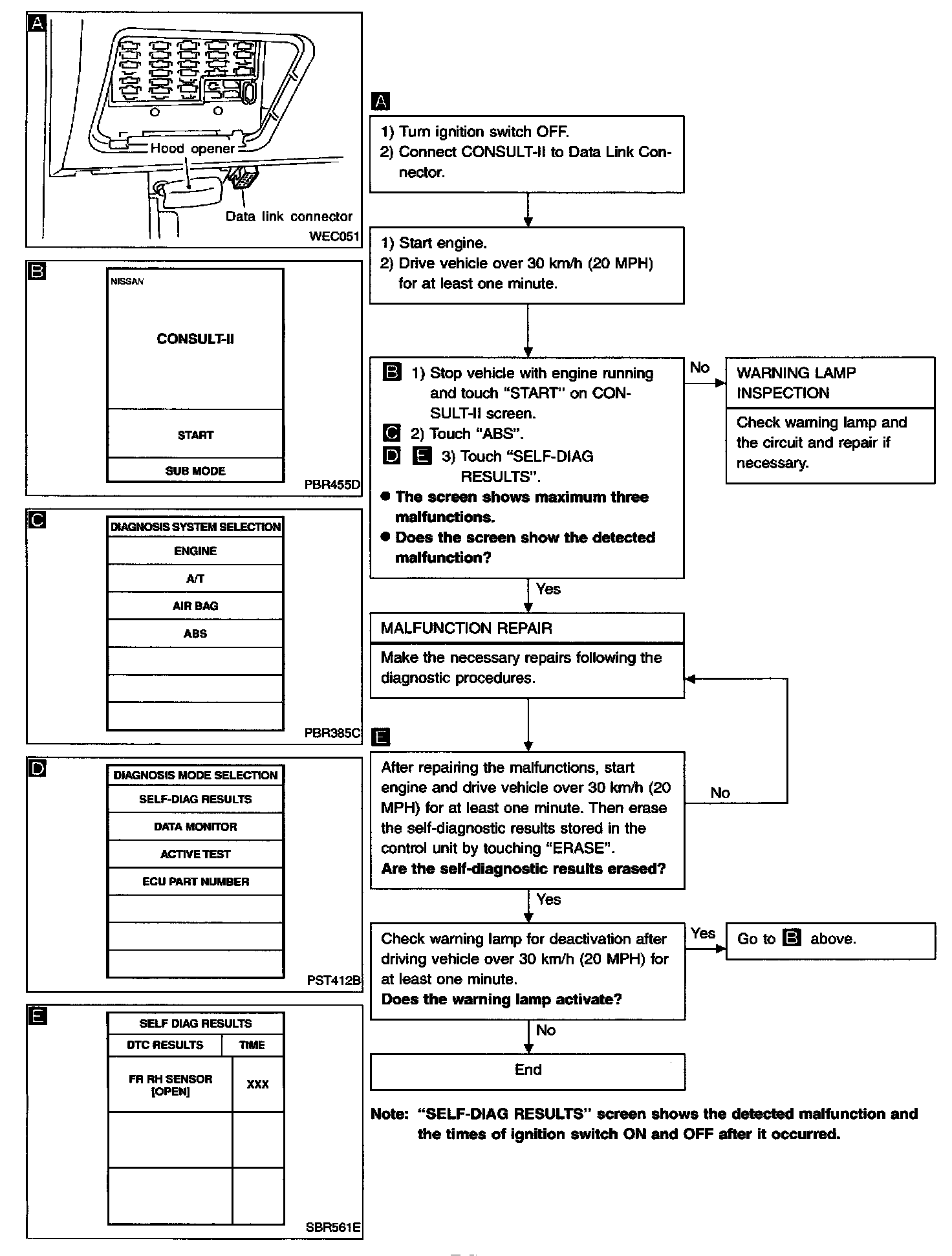

SELF-DIAGNOSIS PROCEDURE

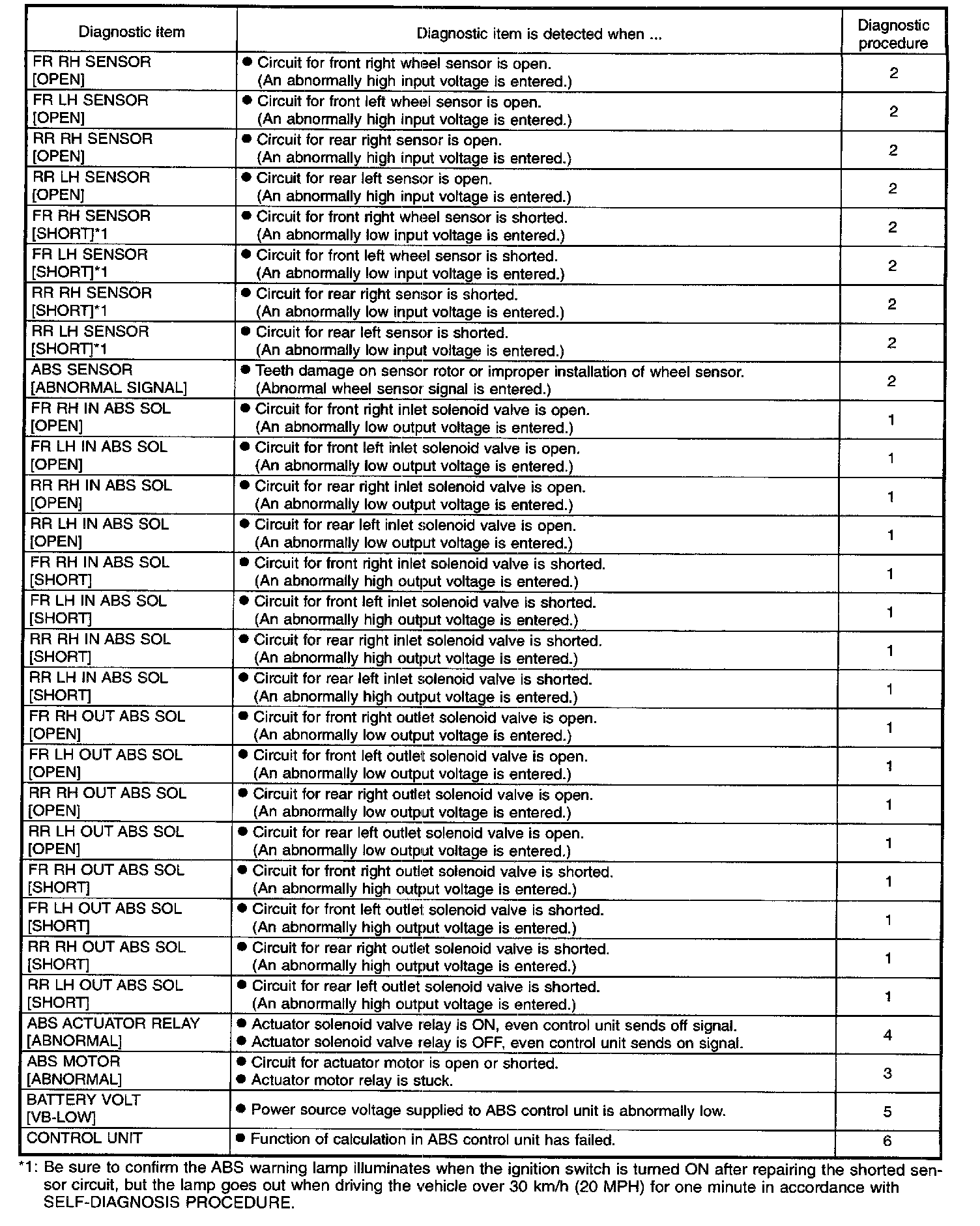

SELF-DIAGNOSTIC RESULTS MODE

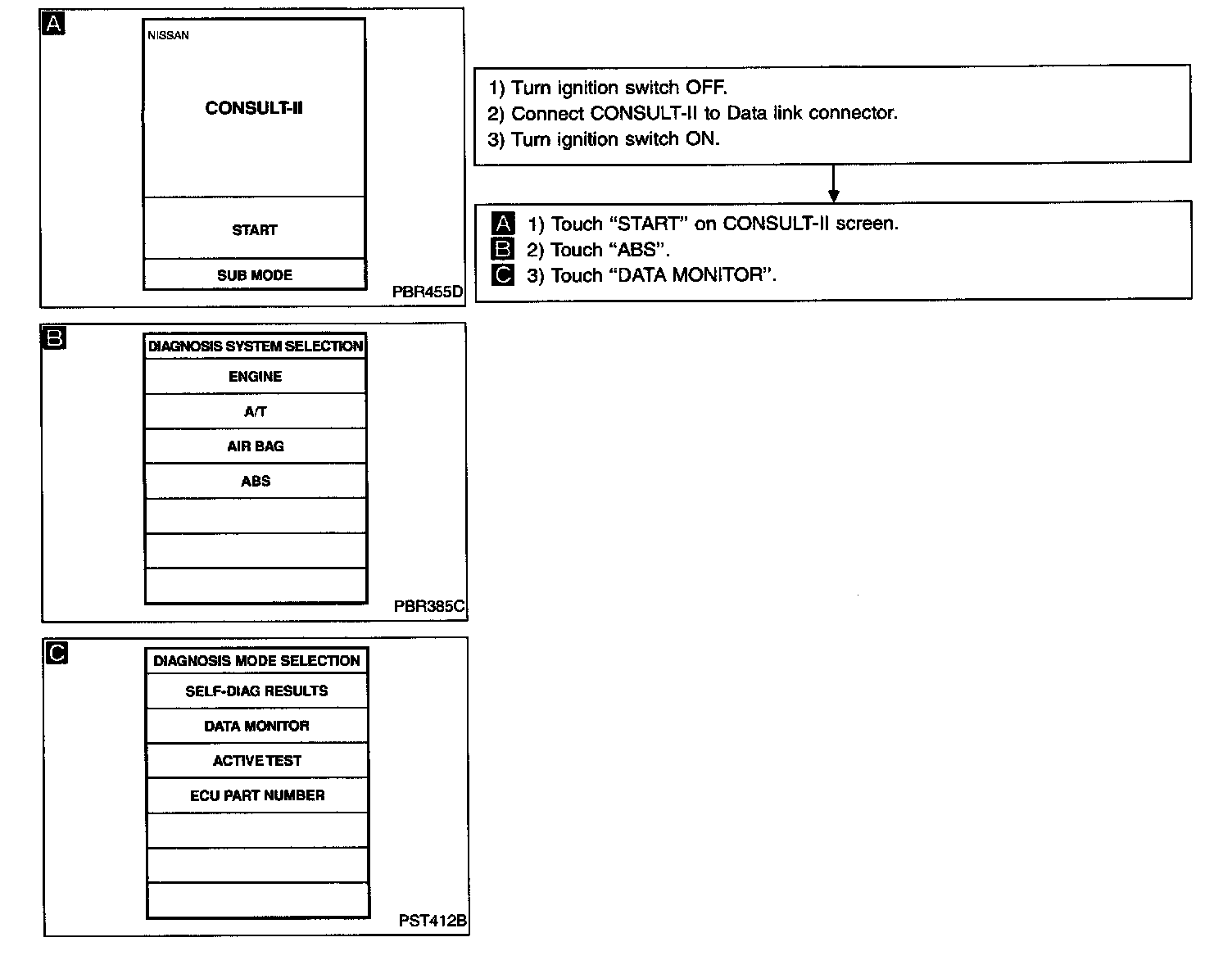

DATA MONITOR PROCEDURE

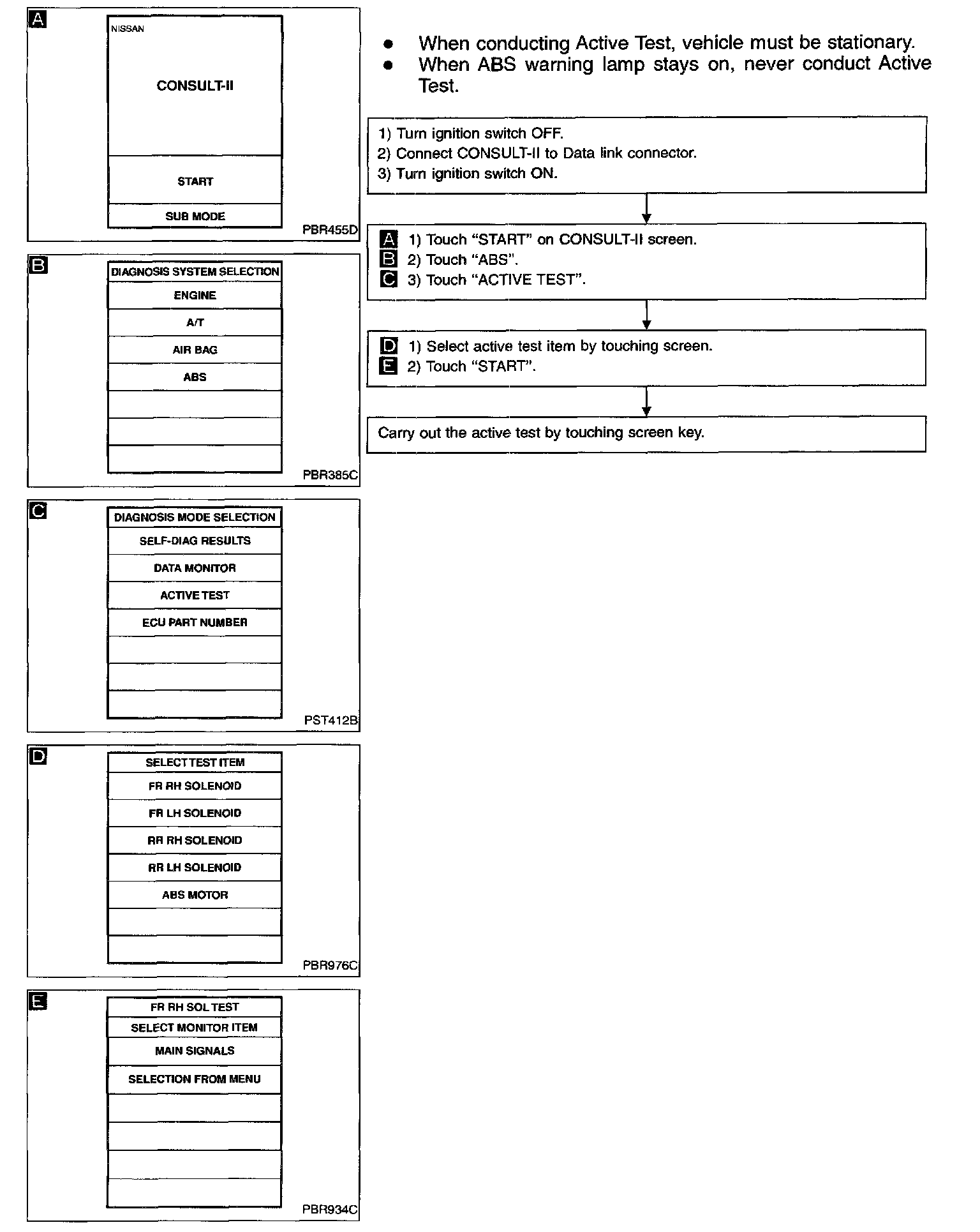

ACTIVE TEST PROCEDURE
- When conducting Active Test, vehicle must be stationary.
- When ABS warning lamp stays on, never conduct Active Test.

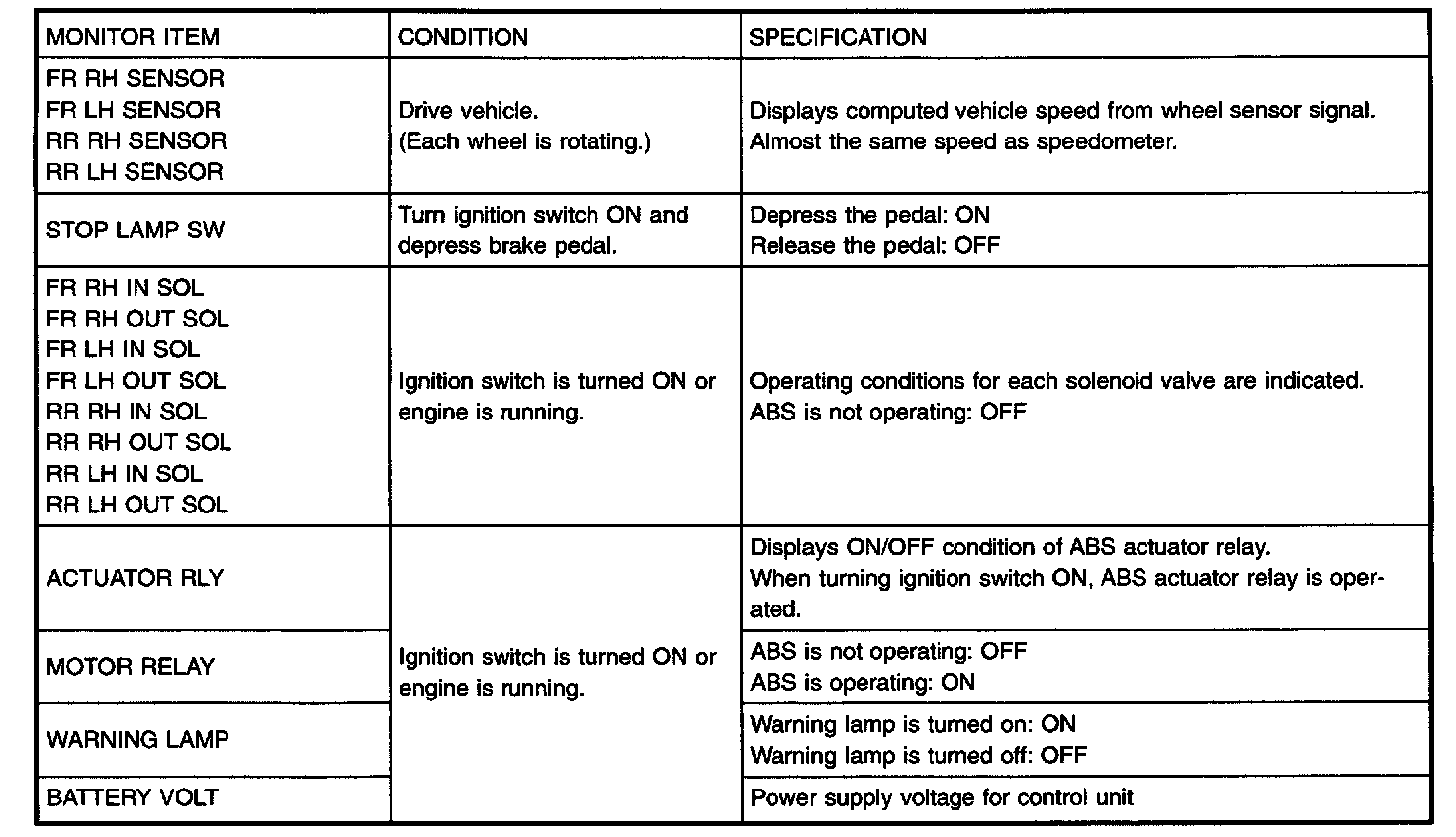

DATA MONITOR MODE

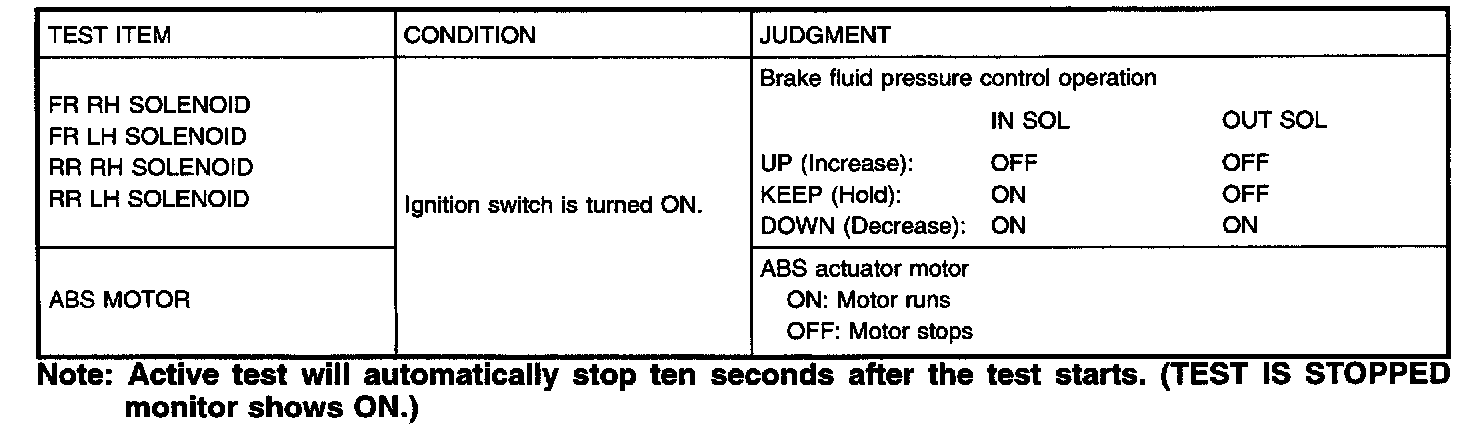

ACTIVE TEST MODE
