Electrical Components Inspection

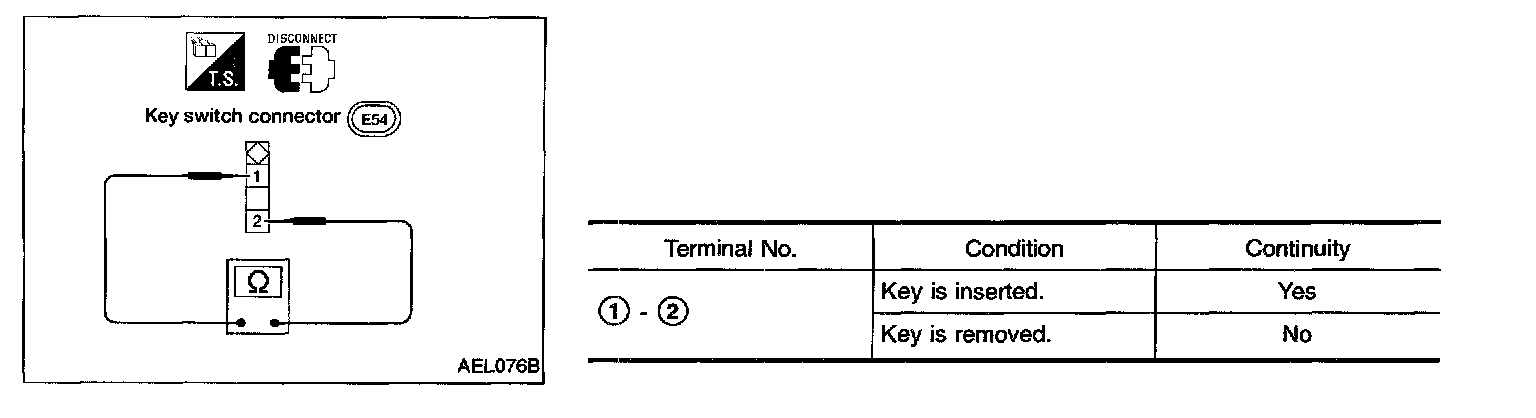

KEY SWITCH (Insert)
Check continuity between terminals when key is inserted in ignition key cylinder and key is removed from ignition key cylinder.
