Side and Floor Trim

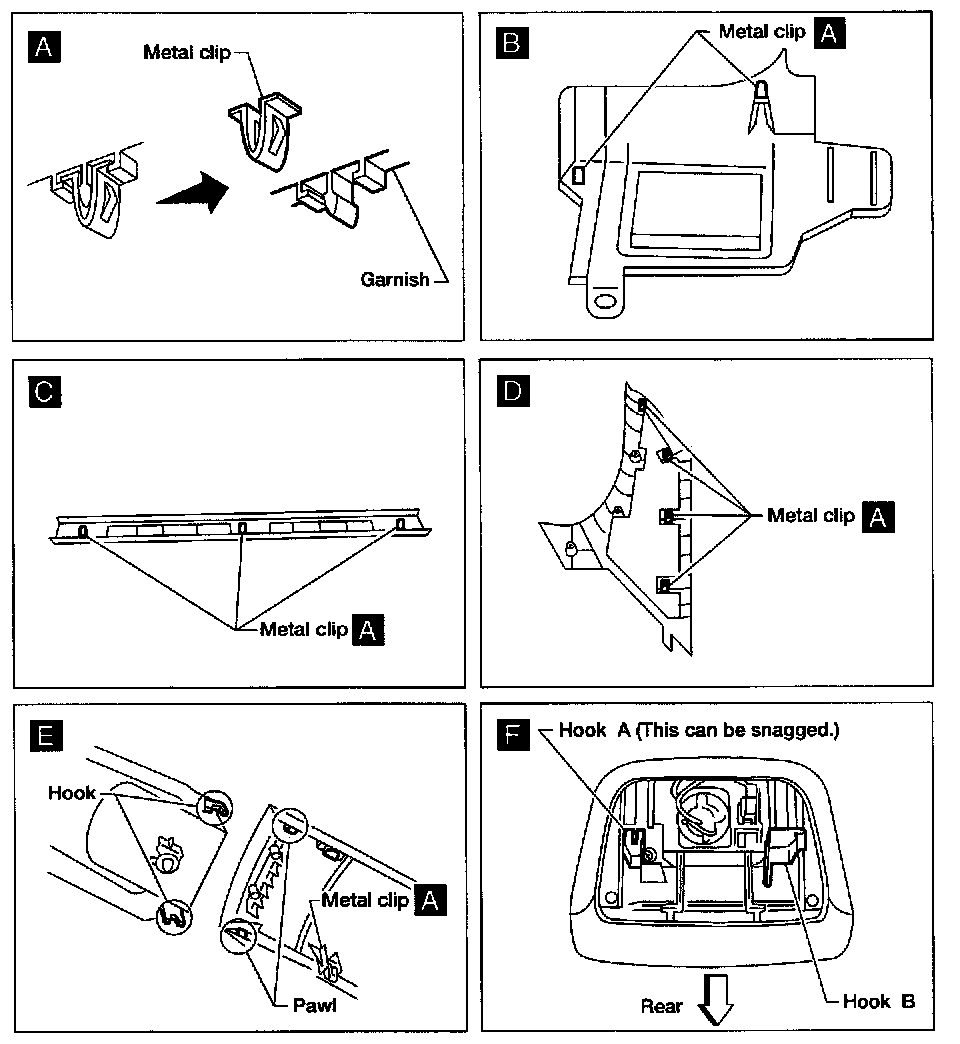

CAUTION: Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.

Part 1:

Part 2:

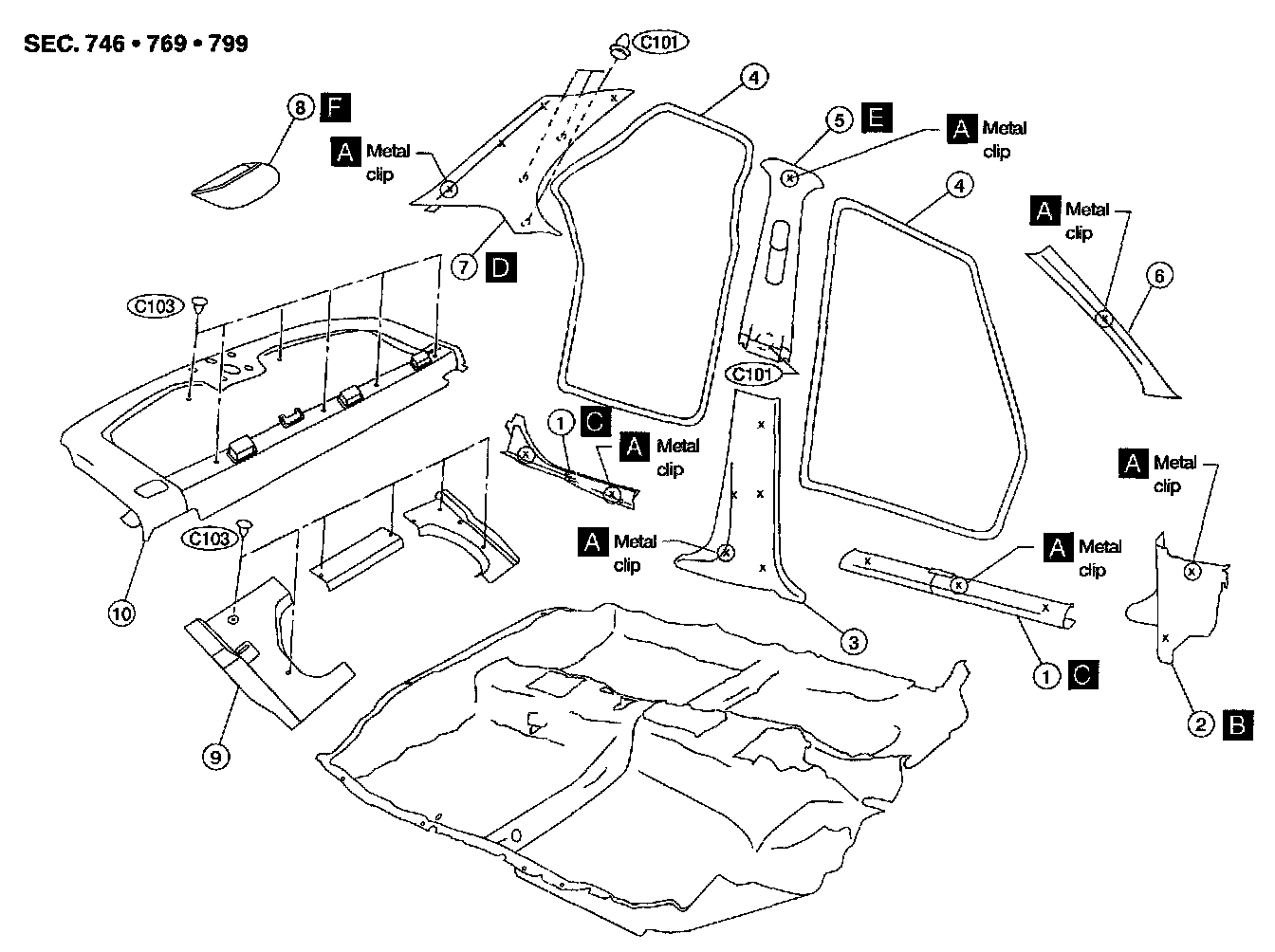

REMOVAL - Body side trim
Remove front and rear seats and seatbelts.
1. Remove front and rear kick plates. C
2. Remove dash side finisher. B
3. Remove center pillar lower garnish.
4. Remove front and rear body side welts.
5. Remove center pillar upper garnish. E
6. Remove front pillar garnish.
7. Remove rear pillar garnish. D
8. Remove center high mount stop lamp. F
9. Remove rear seat finisher.
10. Remove rear parcel shelf.
