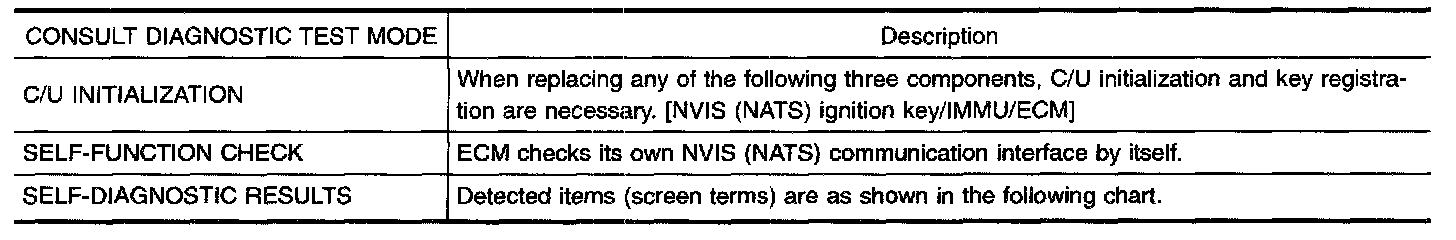

Consult-II Diagnostic Test Mode Function

NOTE: When any initialization is performed, all ID previously registered will be erased and all NVIS (NATS) ignition keys must be registered again. The engine cannot be started with an unregistered key. In this case, the system will show "DIFFERENCE OF KEY" or "LOCK MODE" may also be displayed along with "DIFFERENCE OF KEY" in some cases as a self-diagnostic result on the CONSULT-II screen. Refer to "SELF-DIAGNOSTIC RESULTS ITEM CHART".
