Diagnostic Procedure 6

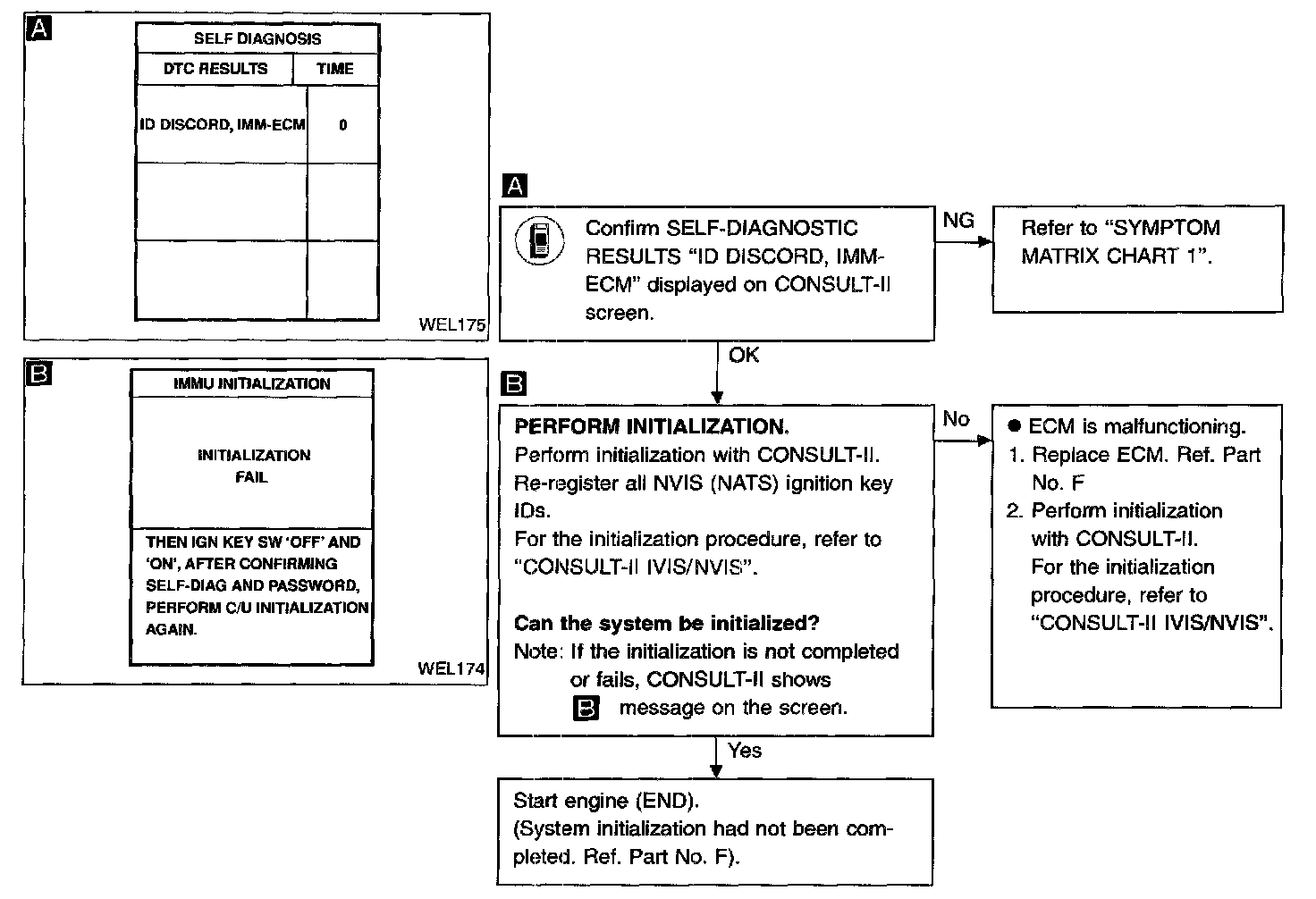

DIAGNOSTIC PROCEDURE 6
Self-diagnostic results: "ID DISCORD, IMM-ECM" displayed on CONSULT-II screen*.
* "ID DISCORD, IMM-ECM": Registered ID of IMMU is in discord with that of ECM.
