FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Nissan-Datsun
>>
2001
>>
Altima XE L4-2.4L (KA24DE)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Testing and Inspection
>>
NVIS (Nissan Vehicle Immobilizer System-NATS)
>>
Diagnosis By Symptom
>>
Diagnostic Procedure 3
Diagnostic Procedure 3
Part 1:
Part 2:

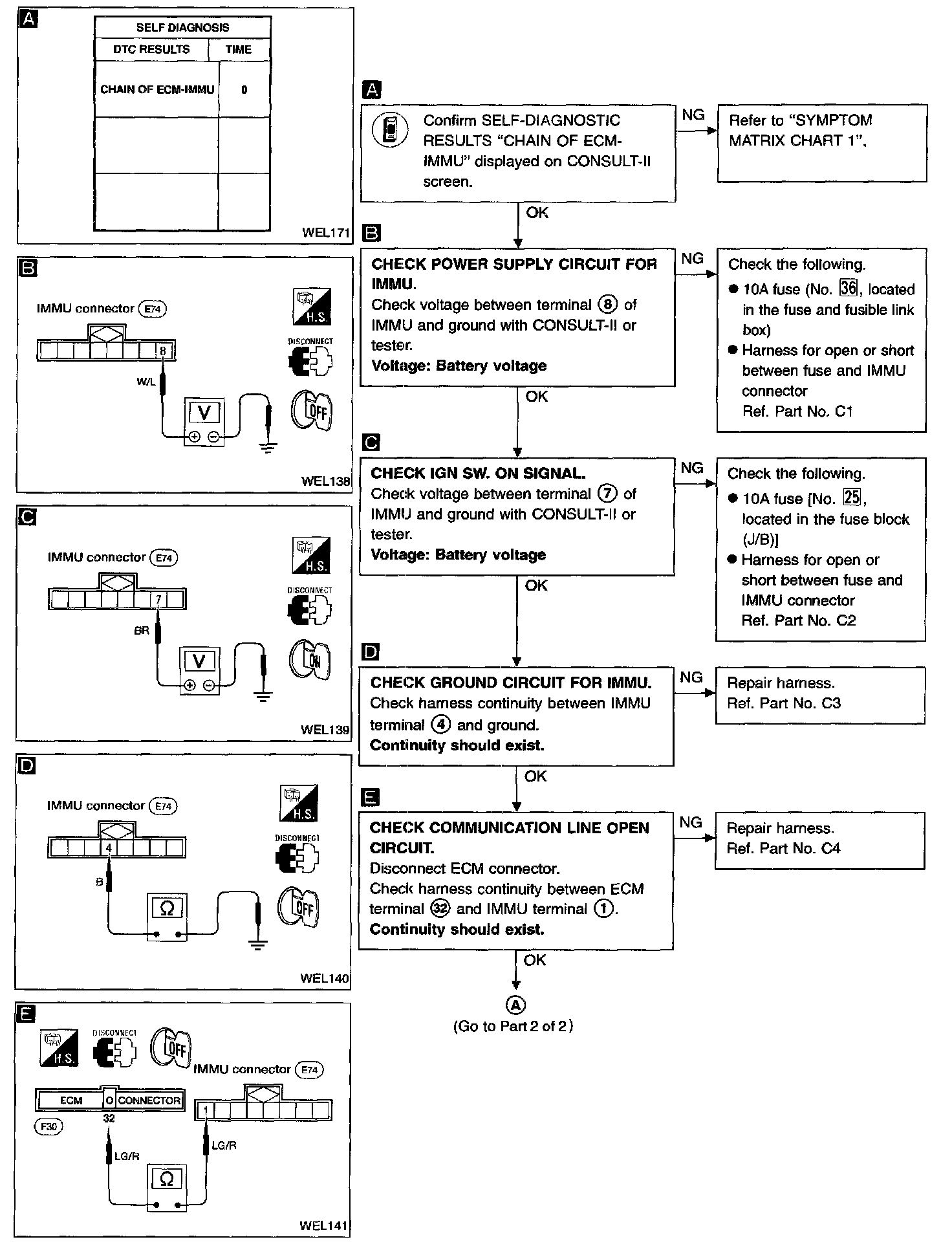

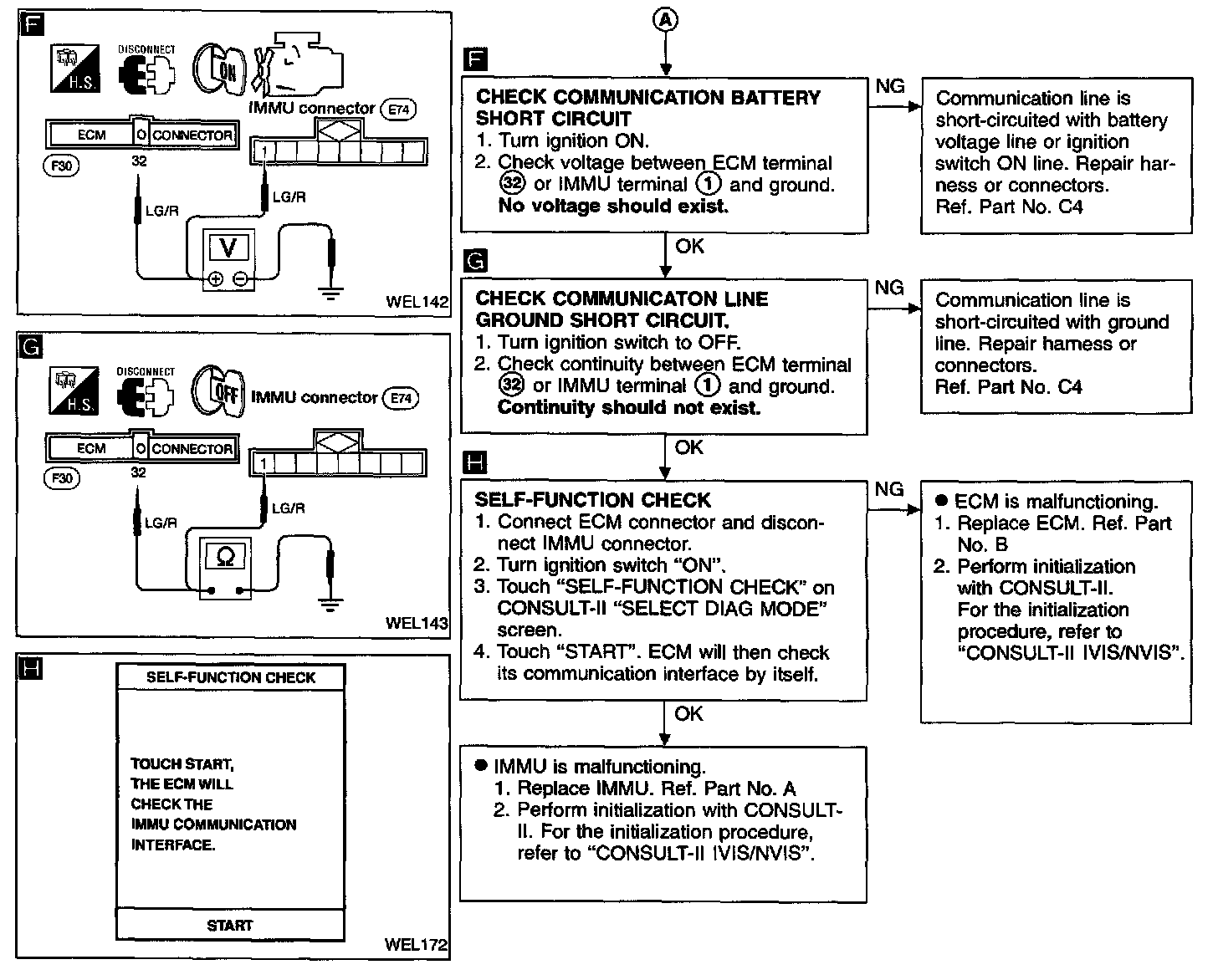

DIAGNOSTIC PROCEDURE 3
Self-diagnostic results: "CHAIN OF ECM-IMMU" displayed on CONSULT-II screen
