P0705

DESCRIPTION

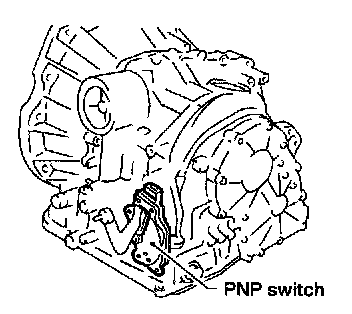

- The Park/Neutral Position (PNP) switch assembly includes a transmission range switch.
- The transmission range switch detects the selector lever position and sends a signal to the Transmission Control Module (TCM).





TCM TERMINALS AND REFERENCE VALUE

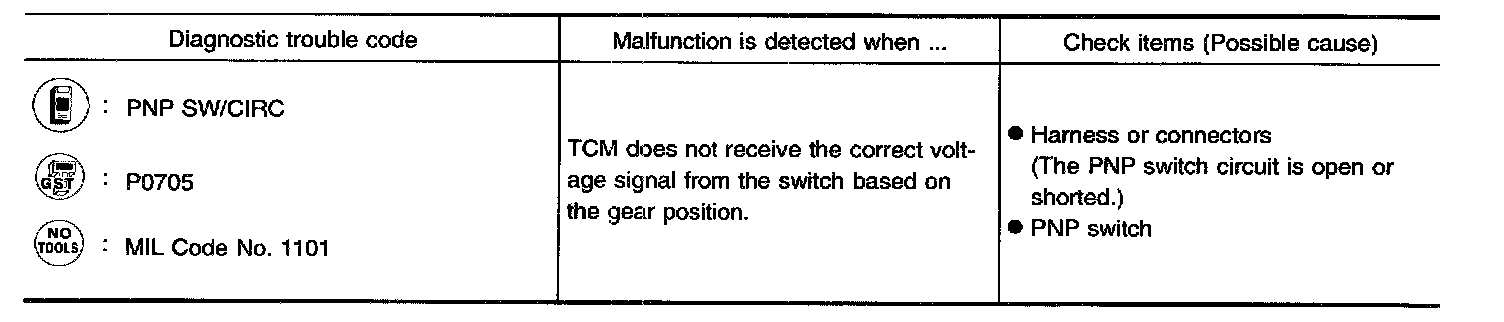

ON BOARD DIAGNOSIS LOGIC

DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE

CAUTION:
- Always drive vehicle at a safe speed.
- If conducting this "DTC CONFIRMATION PROCEDURE" again, always turn ignition switch "OFF" and wait at least 5 seconds before continuing.

After the repair, perform the following procedure to confirm the malfunction is eliminated.

With CONSULT-II
1. Turn ignition switch "ON".





1 of 2





2 of 2

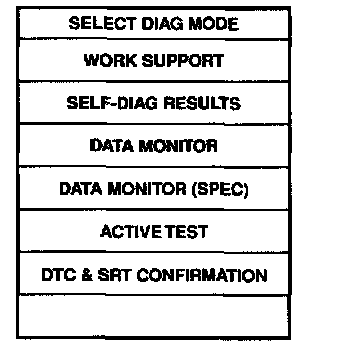

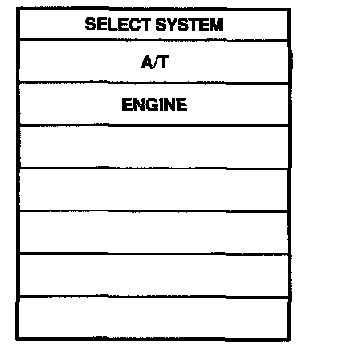

2. Select "DATA MONITOR" mode for "ENGINE" with CONSULT-II.
3. Start engine and maintain the following conditions for at least 5 consecutive seconds.
VHCL SPEED SE: 10 km/h (6 MPH) or more
THRTL POS SEN: More than 1.3 V
Selector lever: D position (OD "ON" or "OFF")

With GST
Follow the procedure "With CONSULT-II".

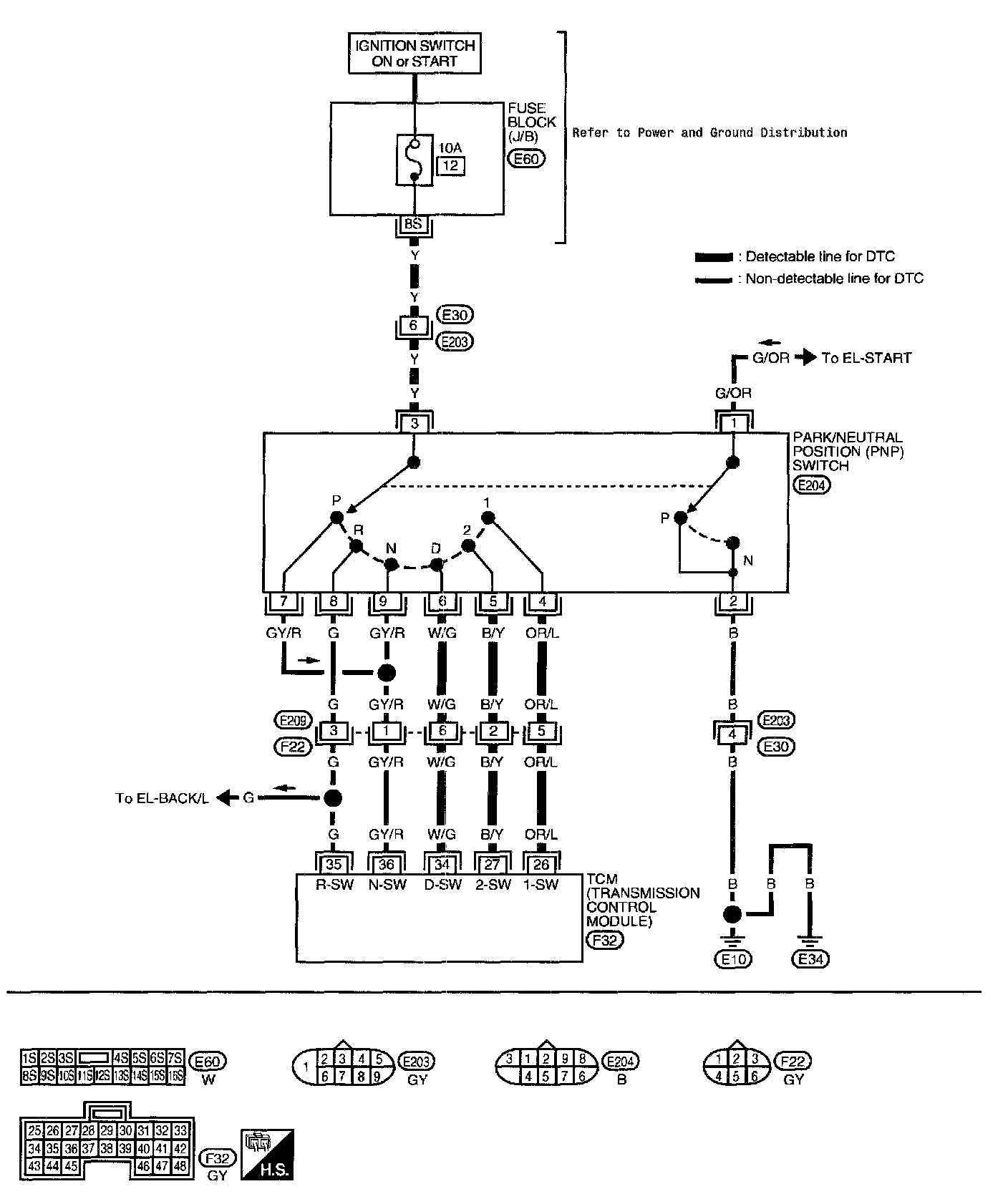

WIRING DIAGRAM - AT - PNP/SW

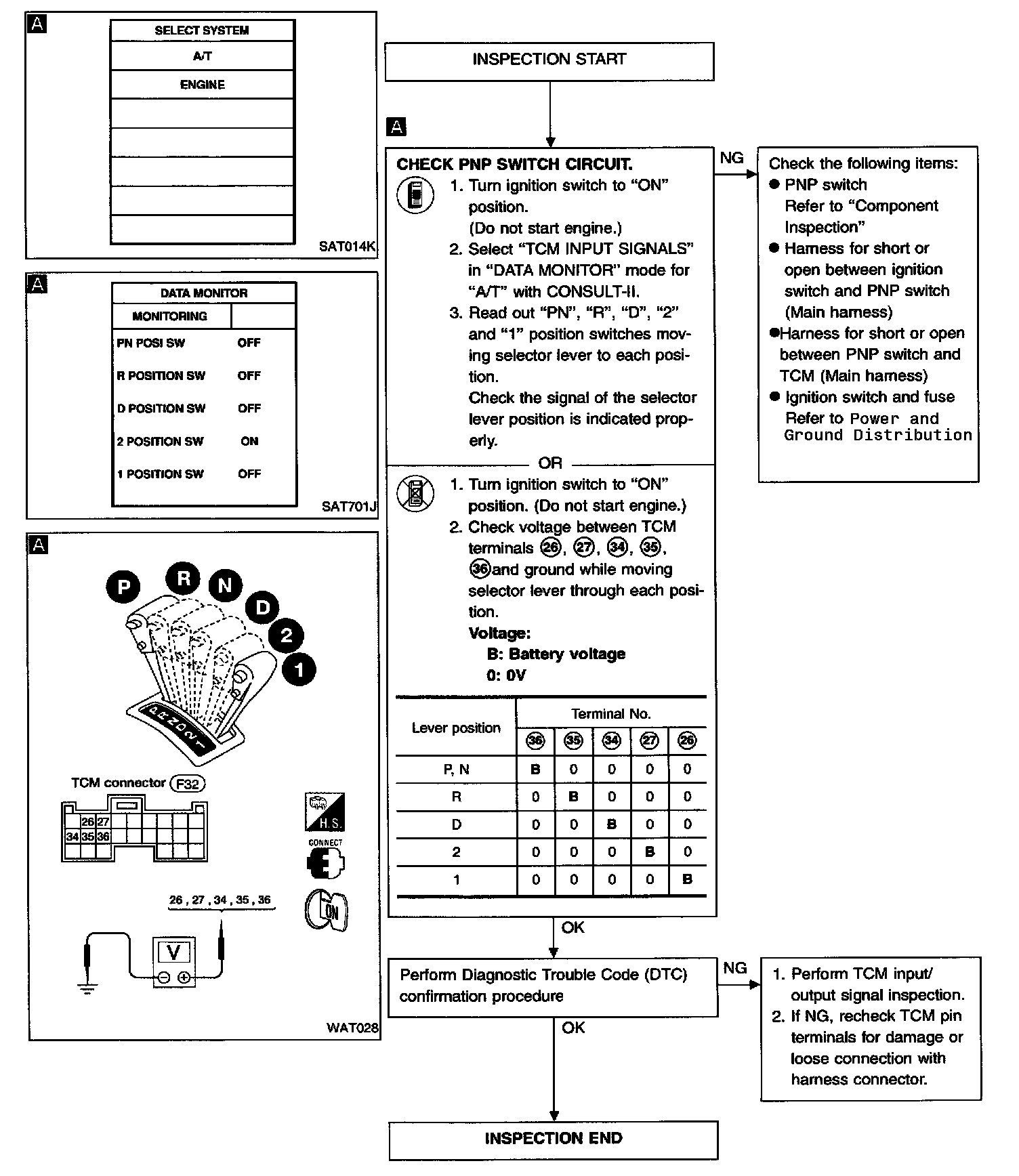

DIAGNOSTIC PROCEDURE

COMPONENT INSPECTION

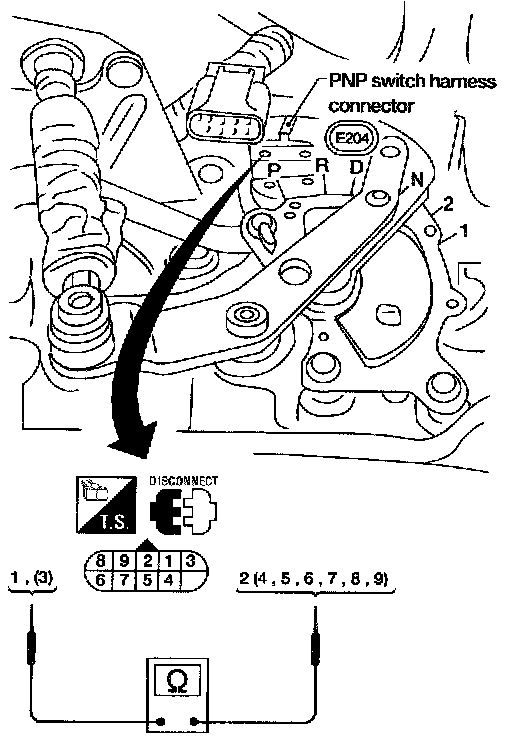

PNP switch





1 of 2





2 of 2

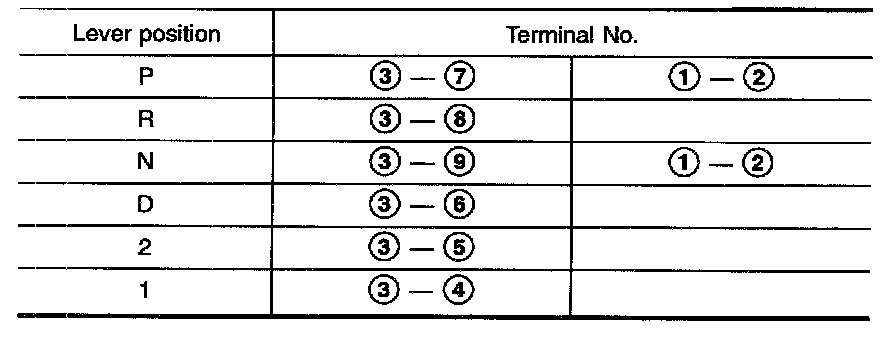

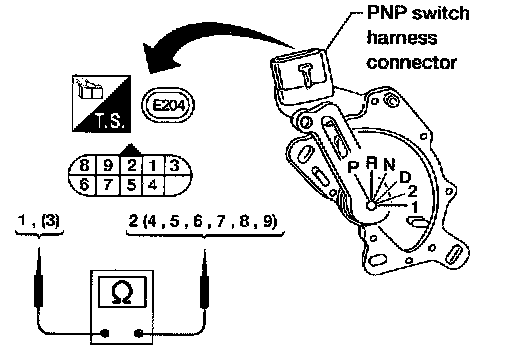

1. Check continuity between terminals 1 and 2 and between terminals 3 and 4, 5, 6, 7, 8, 9 while moving manual shaft through each position.

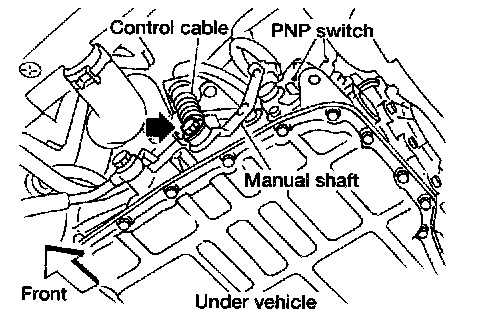

2. If NG, check again with manual control cable disconnected from manual shaft of A/T assembly. Refer to step 1.
3. If OK on step 2, adjust manual control cable.





4. If NG on step 2, remove Park/Neutral Position (PNP) switch from A/T and check continuity of PNP switch terminals. Refer to step 1.
5. If OK on step 4, adjust PNP switch.
6. If NG on step 4, replace PNP switch.
