P0455
ON BOARD DIAGNOSTIC LOGIC

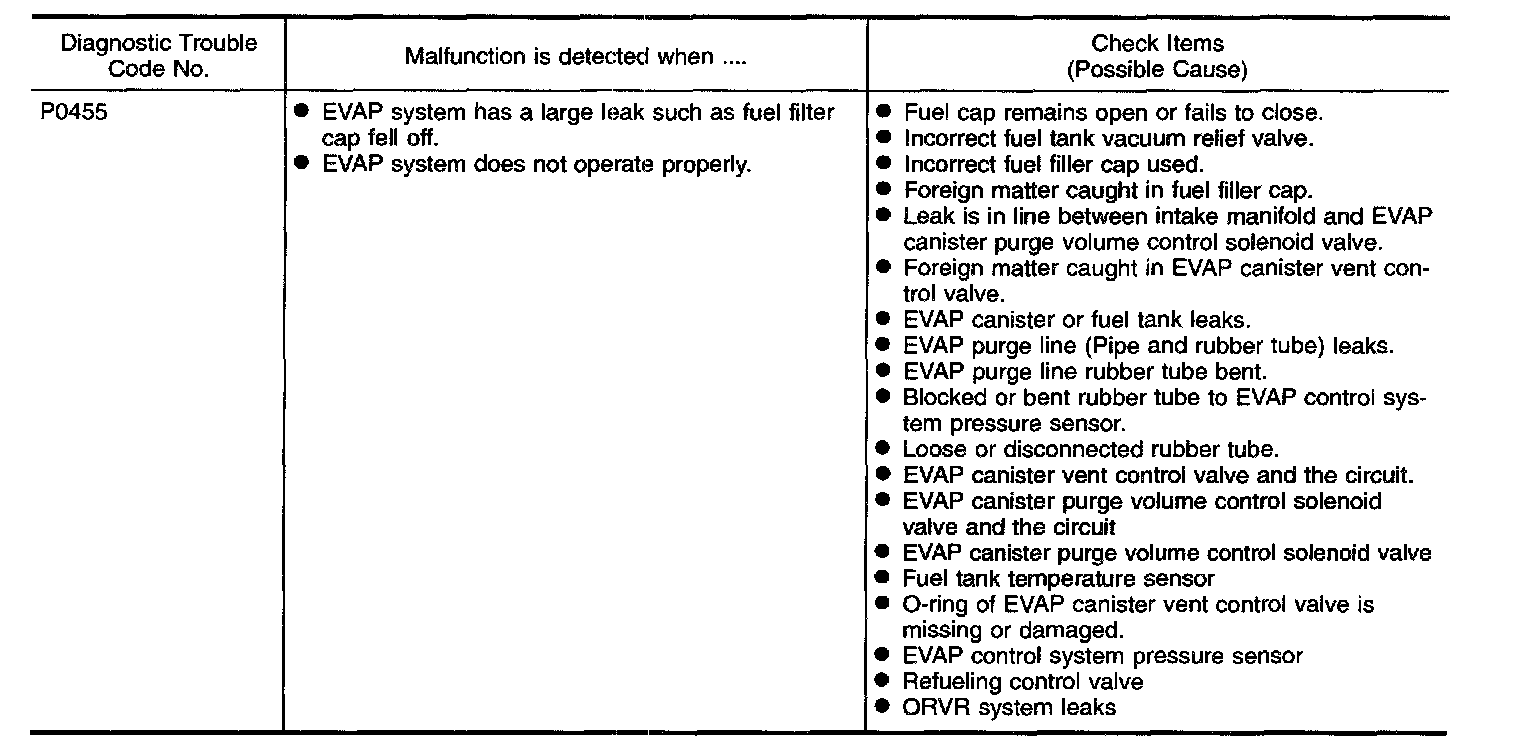

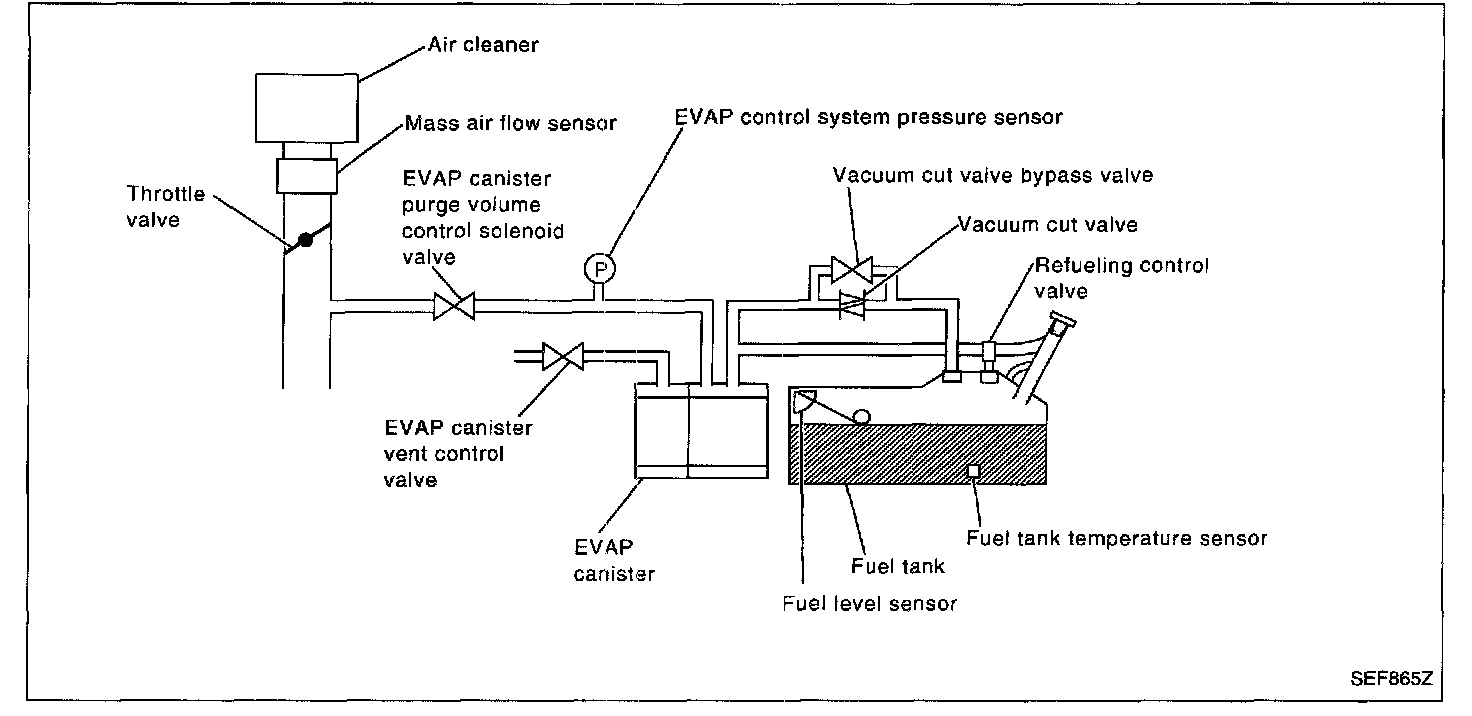

This diagnosis detects a large leak (fuel filler cap fell off) in the EVAP system between the fuel tank and the EVAP canister purge volume control solenoid valve.
CAUTION:
- Use only a genuine NISSAN fuel filler cap as a replacement. If an incorrect fuel filler cap is used, the MIL may come on.
- If the fuel filler cap is not tightened properly the MIL may come on.
- Use only a genuine NISSAN rubber tube as a replacement.
DTC CONFIRMATION PROCEDURE
CAUTION: Never remove fuel filler cap during the DTC confirmation procedure.
NOTE:
- If DTC P1448 is displayed with P0455, perform TROUBLE DIAGNOSIS FOR DTC P1448 first.
- If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.
TESTING CONDITION:
- Perform "DTC WORK SUPPORT" when the fuel level is between 1/4 to 3/4 full and vehicle placed on the flat level surface.
- Open engine hood before conducting following procedure.
With Consult
1. Tighten fuel filler cap securely until ratching sound is heard.
2. Turn ignition switch "ON".
3. Turn ignition switch "OFF" and wait at least 5 seconds.
4. Turn ignition switch "ON" and select "DATA MONITOR" mode with CONSULT-II.
5. Make sure the following conditions are met.
COOLAN TEMP/S: 0 - 70 °C (32 - 158 °F)
INT/A TEMP SE: 0 - 60 °C (32 - 140 °F)

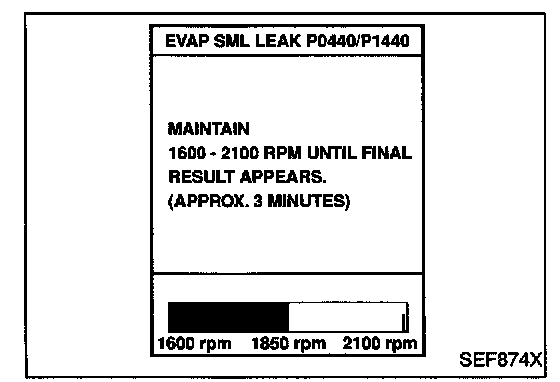

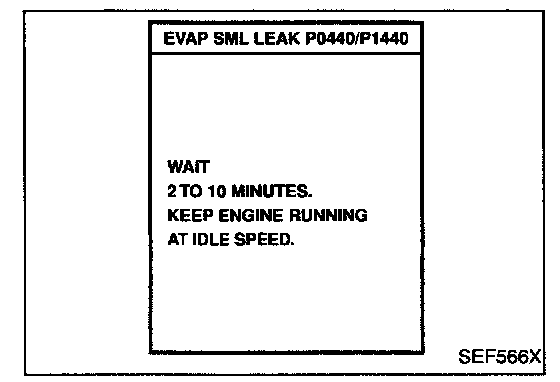

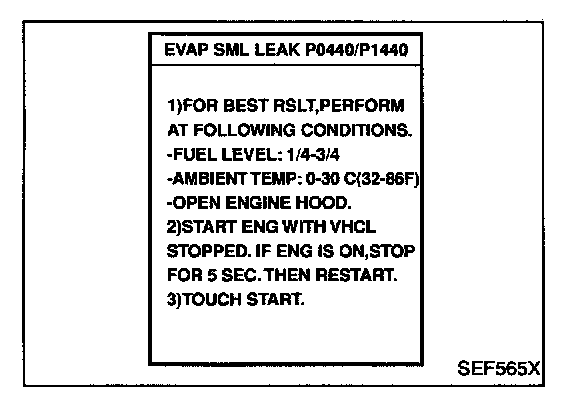

6. Select "EVAP SML LEAK P0440" of "EVAPORATIVE SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT-II.
Follow the instruction displayed.
NOTE:
- If the engine cannot be maintained within the range on CONSULT-II screen, go to "Basic Inspection".
- Make sure that EVAP hoses are connected EVAP canister purge volume control solenoid valve properly.

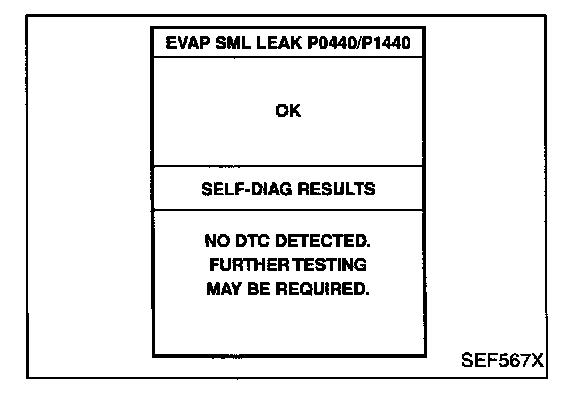

7. Make sure that "OK" is displayed.
If "NG" is displayed, select "SELF-DIAG RESULTS" mode with CONSULT-II and make sure that "EVAP GROSS LEAK [P0445]" is displayed, refer to "Diagnostic Procedure" below.
If P0440 is displayed, perform "DIAGNOSTIC PROCEDURE" for P0440.
OR
NOTE: Be sure to read the explanation of "Driving pattern" before driving vehicle.
With Generic Scan Tools
1. Start engine.
2. Drive vehicle according to "Driving pattern".
3. Stop vehicle.
4. Select "MODE 1" with GST.
- If SRT of EVAP system is not set yet, go to the following step.
- If SRT of EVAP system is set, the result will be OK.
5. Turn ignition switch "OFF" and wait at least 5 seconds.
6. Start engine.
It is not necessary to cool engine down before driving.
7. Drive vehicle again according to the "Driving pattern".
8. Stop vehicle.
9. Select "MODE 3" with GST
- If P1447 is displayed on the screen, go to "TROUBLE DIAGNOSIS FOR DTC P1447".
- If P0440 is displayed on the screen, go to "Diagnostic Procedure" below.
- If P1440 is displayed on the screen, go to "Diagnostic Procedure.
- If P0440, P0455, P1440 and P1447 are not displayed on the screen, go to the following step.
10. Select "MODE 1" with GST
- If SRT of EVAP system is set, the result will be OK.
- If SRT of EVAP system is not set, go to step 5).

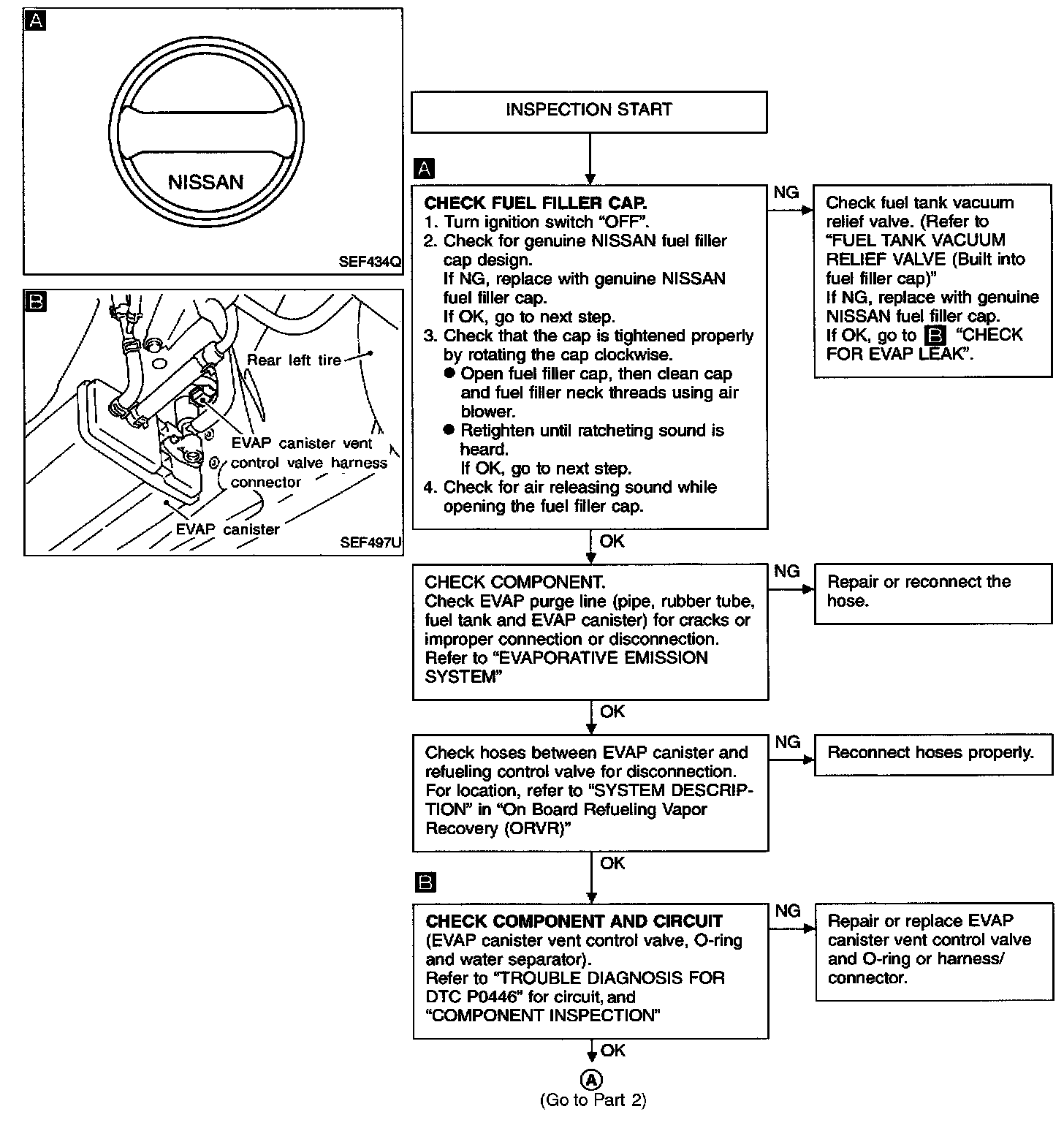

Part 1:

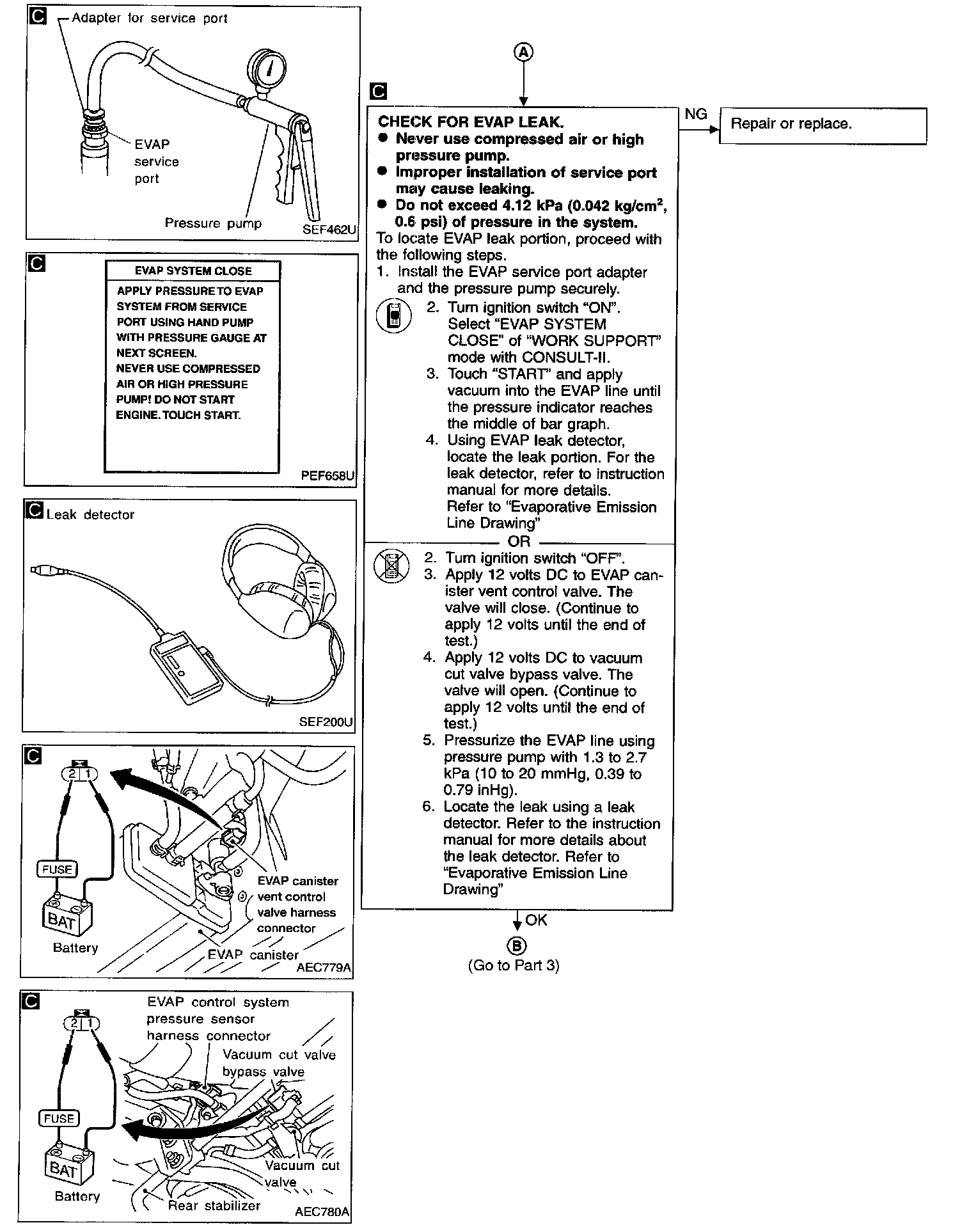

Part 2:
Part 3:

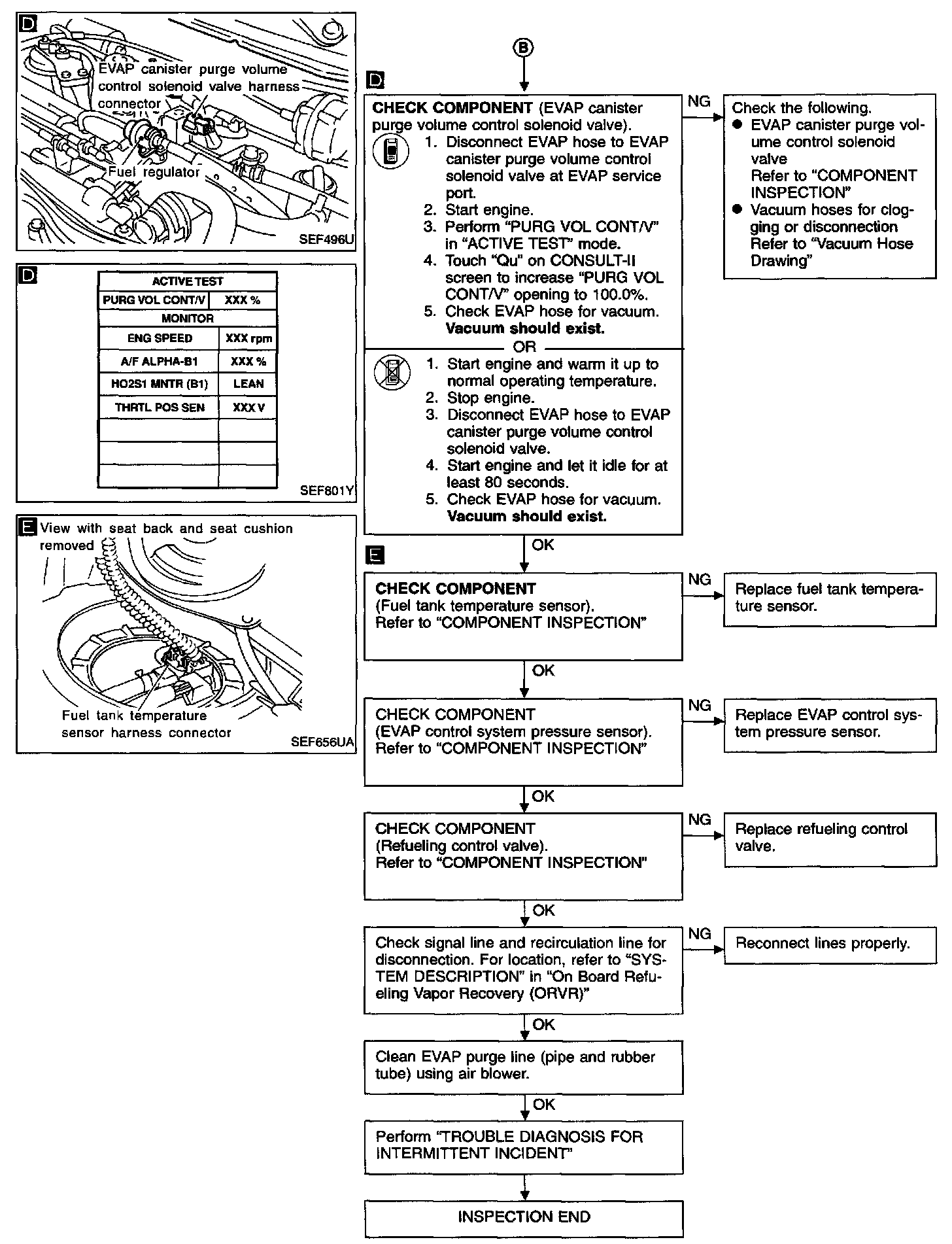

DIAGNOSTIC PROCEDURE
COMPONENT INSPECTION
EVAP canister purge volume control solenoid valve
With Consult
1. Start engine.

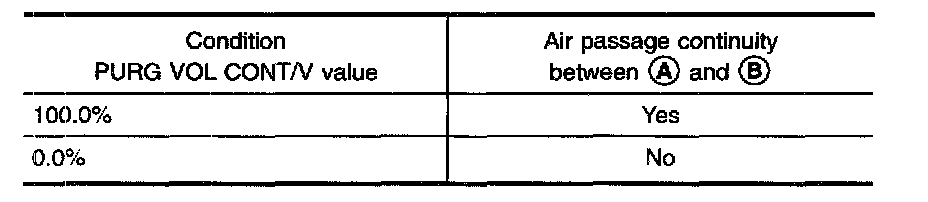

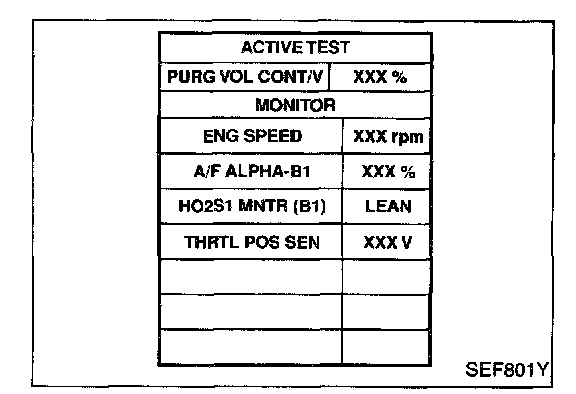

2. Perform "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-II. Check that engine speed varies according to the valve opening.
If OK, inspection end. If NG, go to following step.

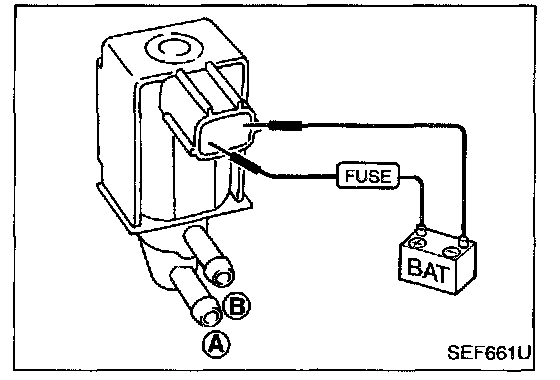

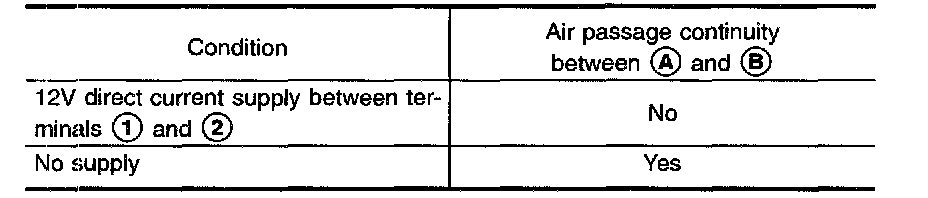

3. Check air passage continuity.
If NG, replace the EVAP canister purge volume control solenoid valve.
OR
Without Consult

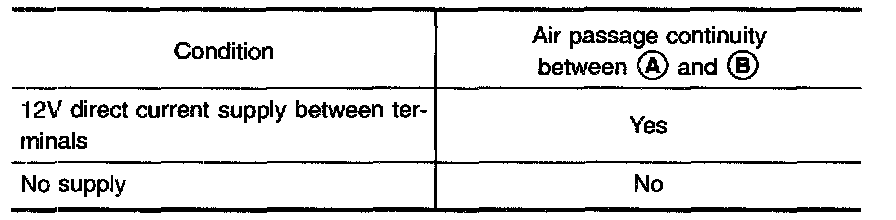

Check air passage continuity.
If NG or operation takes more than 1 second, replace solenoid valve.
EVAP canister vent control valve

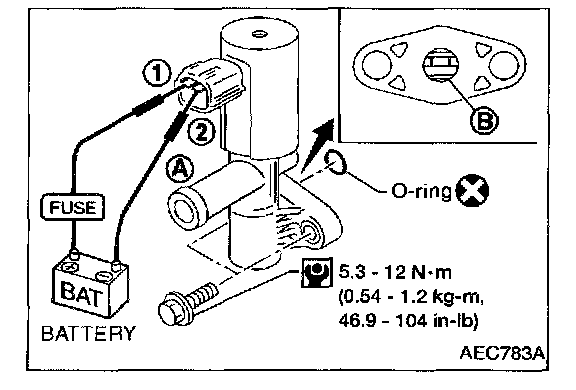

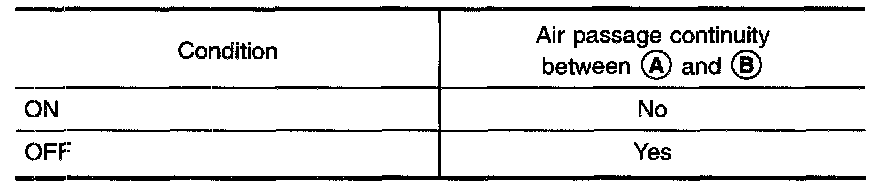

Check air passage continuity.
With Consult

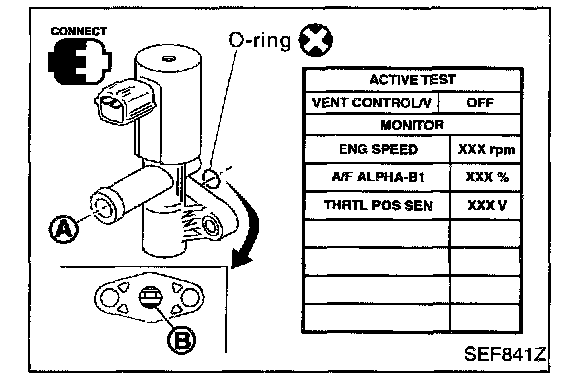

Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.
OR
Without Consult
If NG or operation takes more than 1 second, clean valve using air blower or replace as necessary.

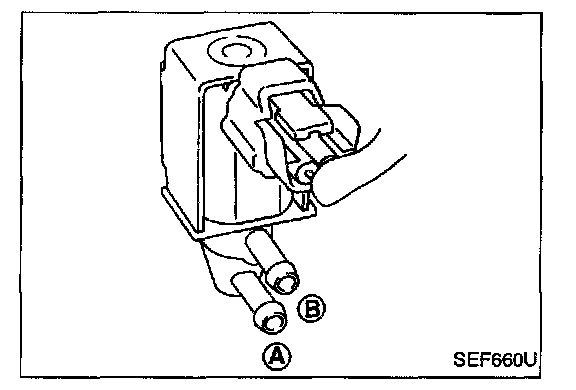

If portion (B) is rusted, replace control valve.
Make sure new O-ring is installed properly.
Fuel tank temperature sensor

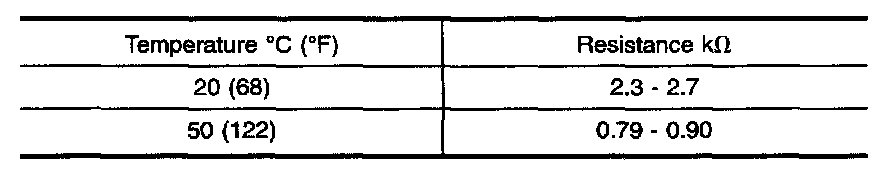

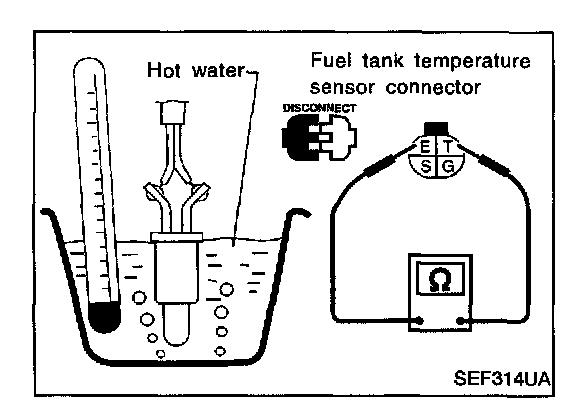

Check resistance by heating with hot water or heat gun as shown in the figure.
If NG, replace fuel tank temperature sensor.
