P0125

Reference Data:

COMPONENT DESCRIPTION
The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

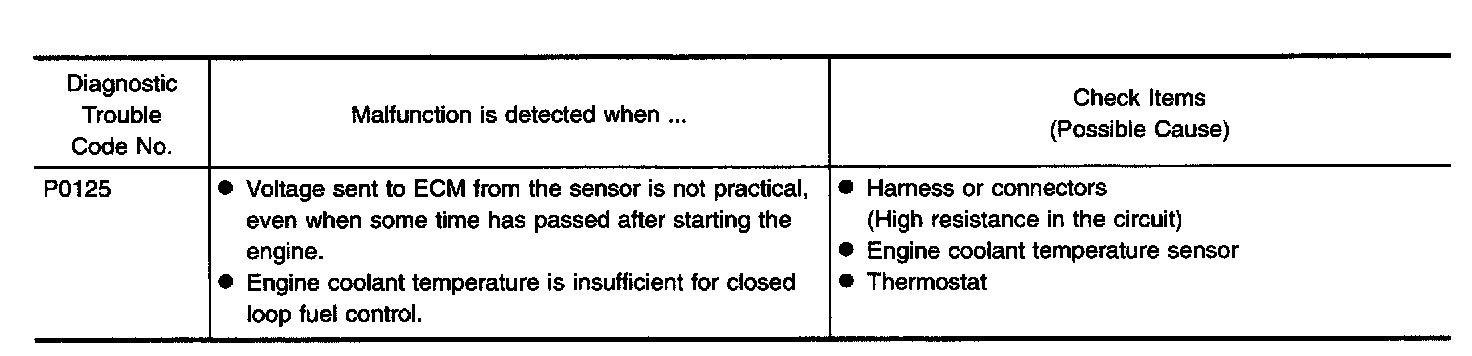

On Board Diagnosis Logic:

DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE
Be careful not to overheat engine.

NOTE:
- If both DTC P0115 (0103) and P0125 (0908) are displayed, first perform "TROUBLE DIAGNOSIS FOR DTC P0115".
- If "DIAGNOSTIC TROUBLE CODE CONFIRMATION PROCEDURE" has been previously conducted, always turn ignition switch "OFF" and wait at least 5 seconds before conducting the next test.

With Consult
1. Turn ignition switch "ON".
2. Select "DATA MONITOR" mode with CONSULT-II.
3. Start engine and run it for 65 minutes at idle speed.
If "COOLAN TEMP/S" increases to more than 10 °C (50 °F) within 65 minutes, stop engine because the test result will be OK.
4. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

OR

With Generic Scan Tool
1. Start engine and run it for 65 minutes at idle speed.
2. Select "MODE 7" with GST
If "COO LAN TEMP/S" increases to more than 10 °C (50 °F) within 65 minutes, stop engine because the test result will be OK.
3. If 1st trip DTC is detected, go to "Diagnostic Procedure" below.

EC-ECTS-01:

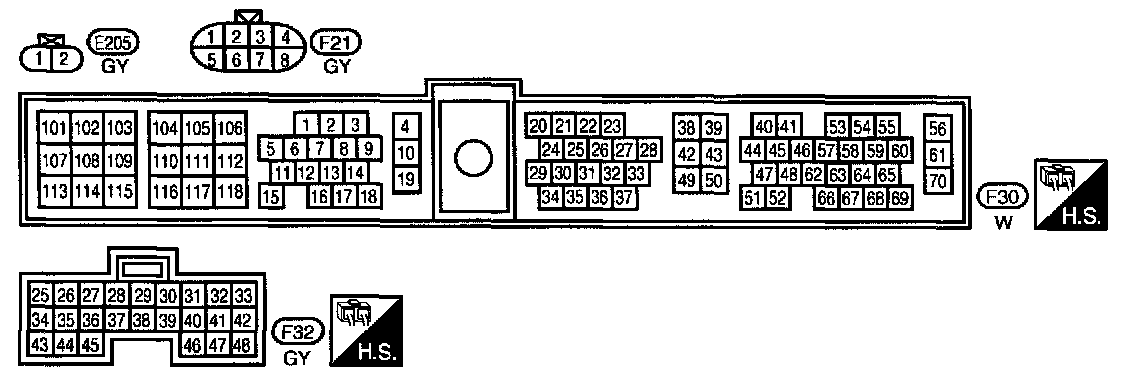

EC-ECTS-01 Connector View:

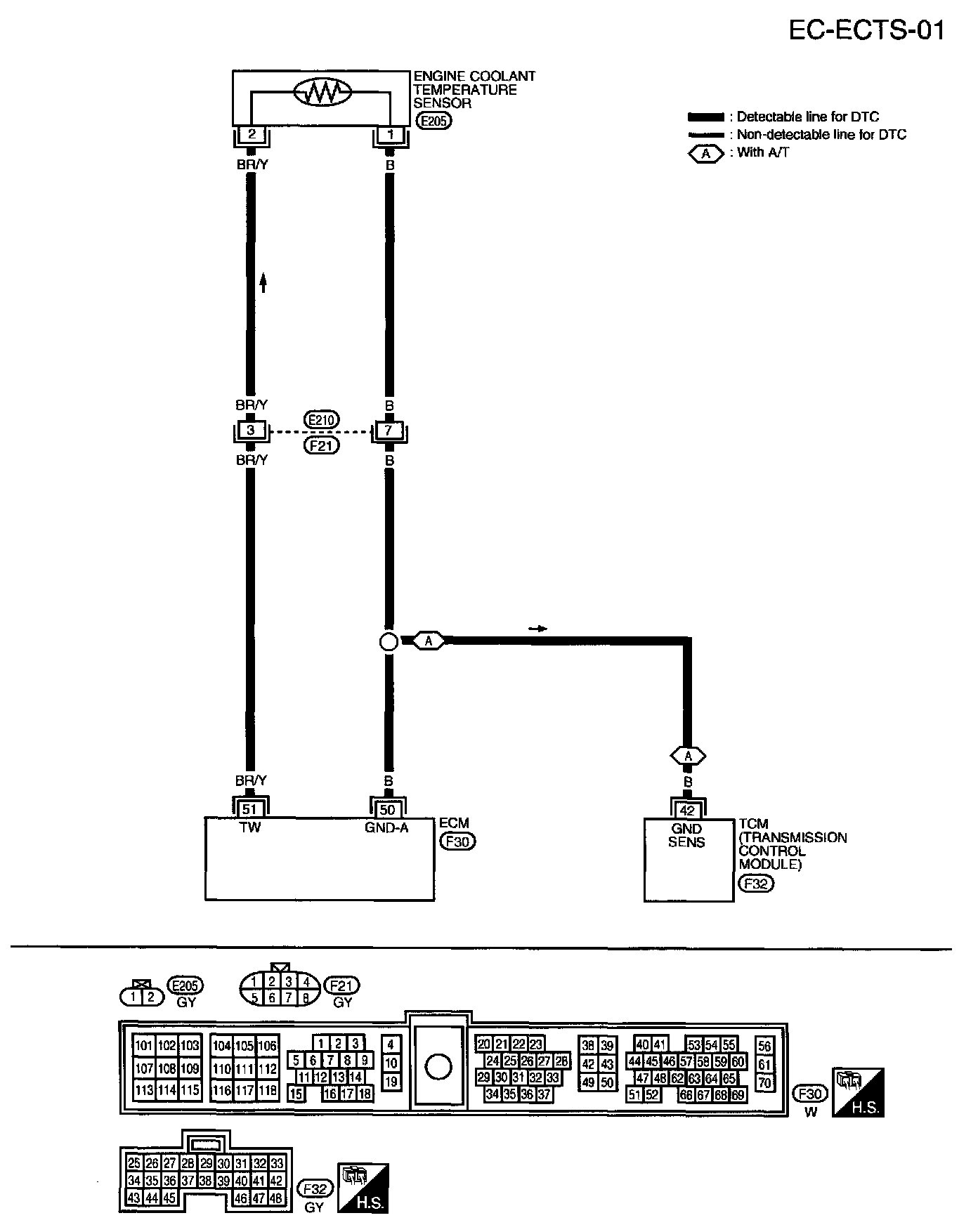

WIRING DIAGRAM

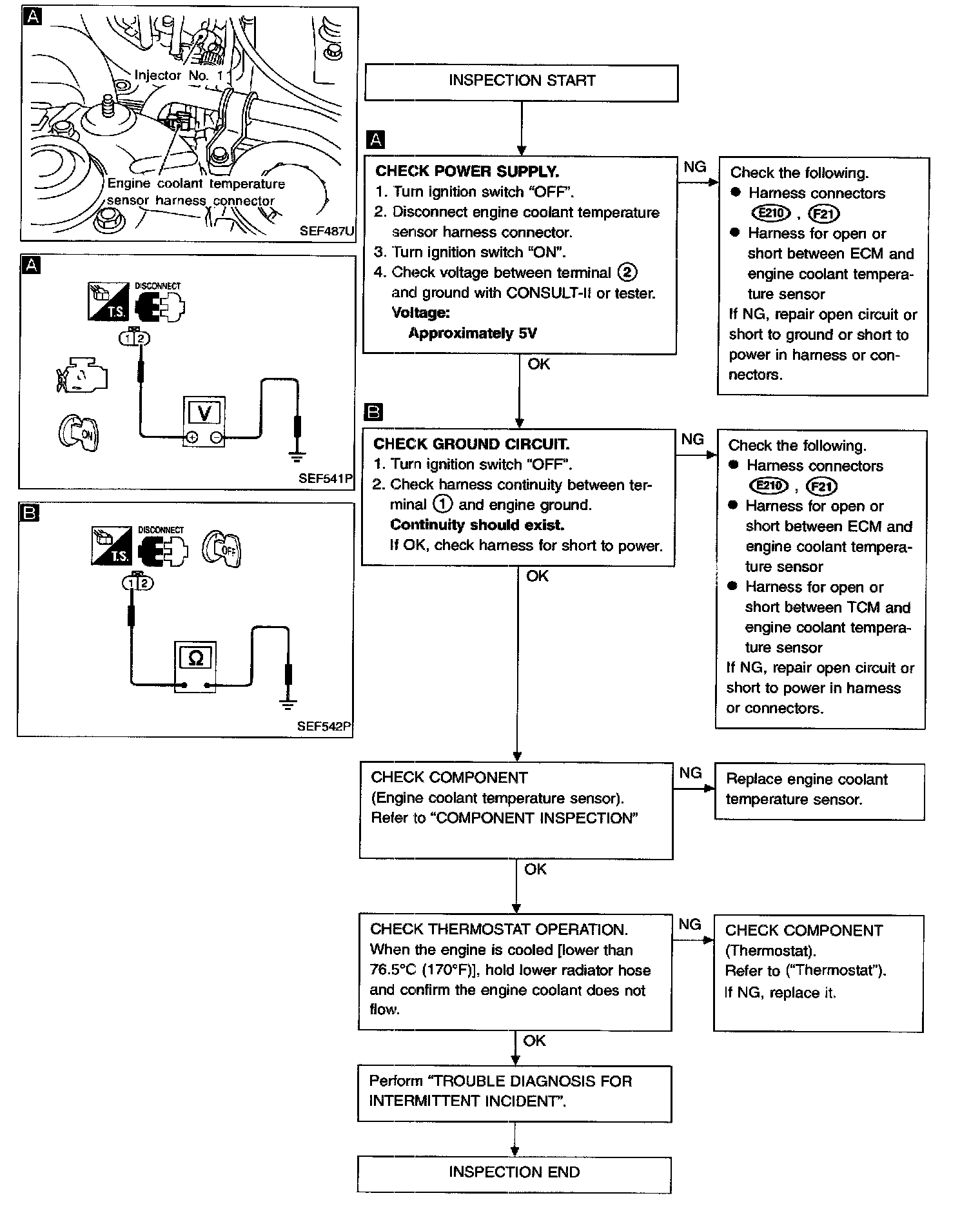

DIAGNOSTIC PROCEDURE







COMPONENT INSPECTION

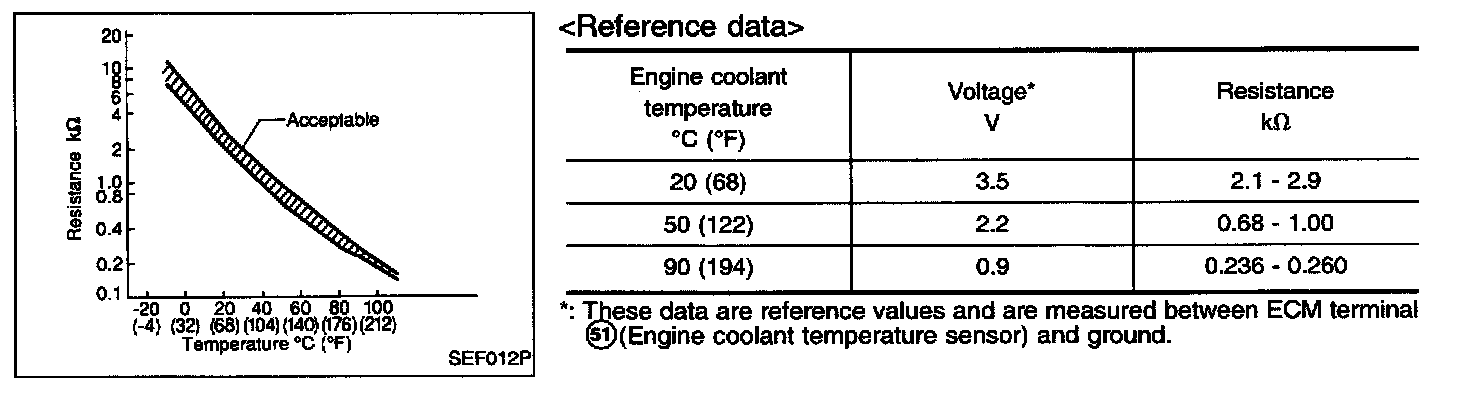

Reference Data:

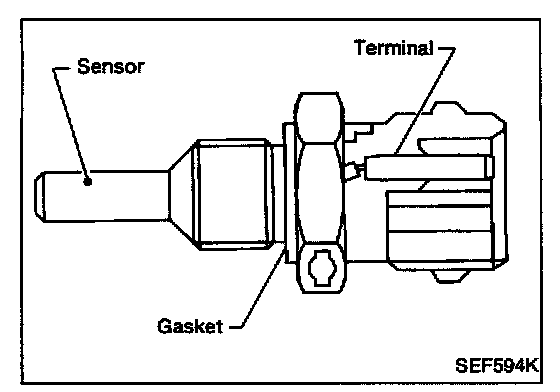

Engine coolant temperature sensor

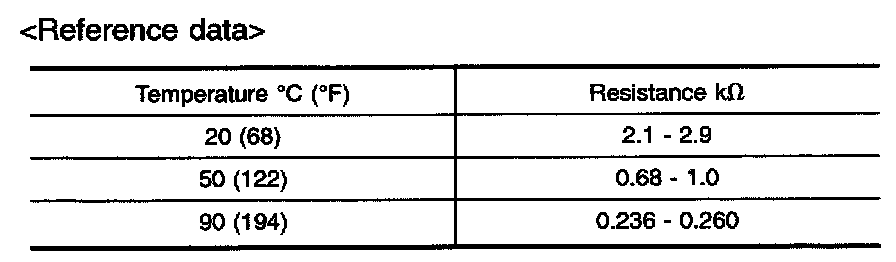

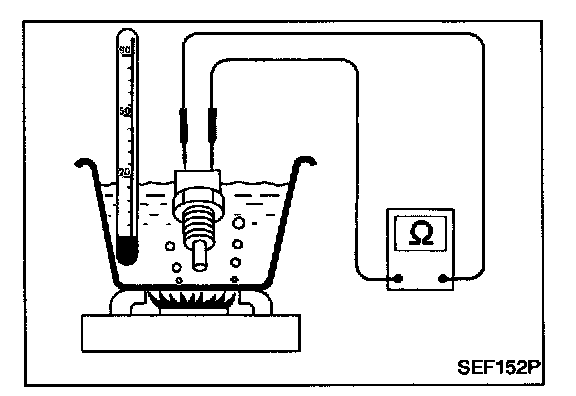

Check resistance as shown in the figure.
If NG, replace engine coolant temperature sensor.
