Home >> Nissan-Datsun >> 2001 >> Altima XE L4-2.4L (KA24DE) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> B, C, P, U Trouble Code Descriptions >> Air Bag System >> CONSULT-II Display Items ("Self-Diag [Current]")

CONSULT-II Display Items ("Self-Diag [Current]")

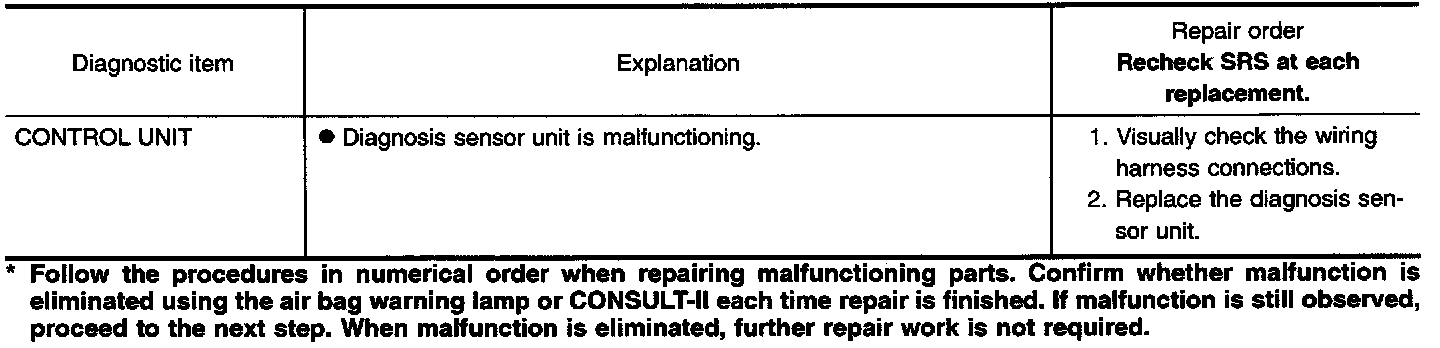

Consult-II Diagnostic Code Chart ("Self-Diag [Current]") Part 1:

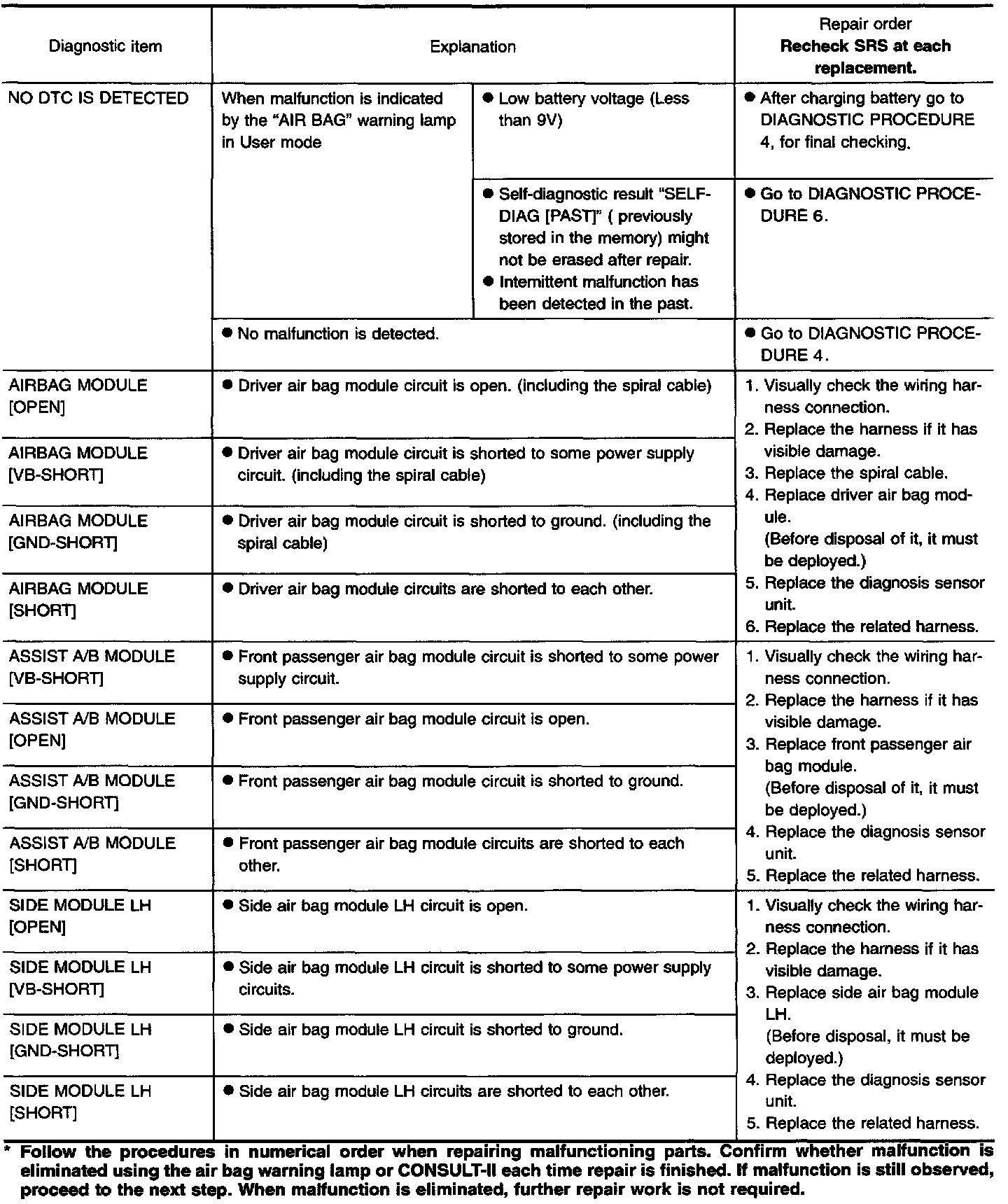

Consult-II Diagnostic Code Chart ("Self-Diag [Current]") Part 2:

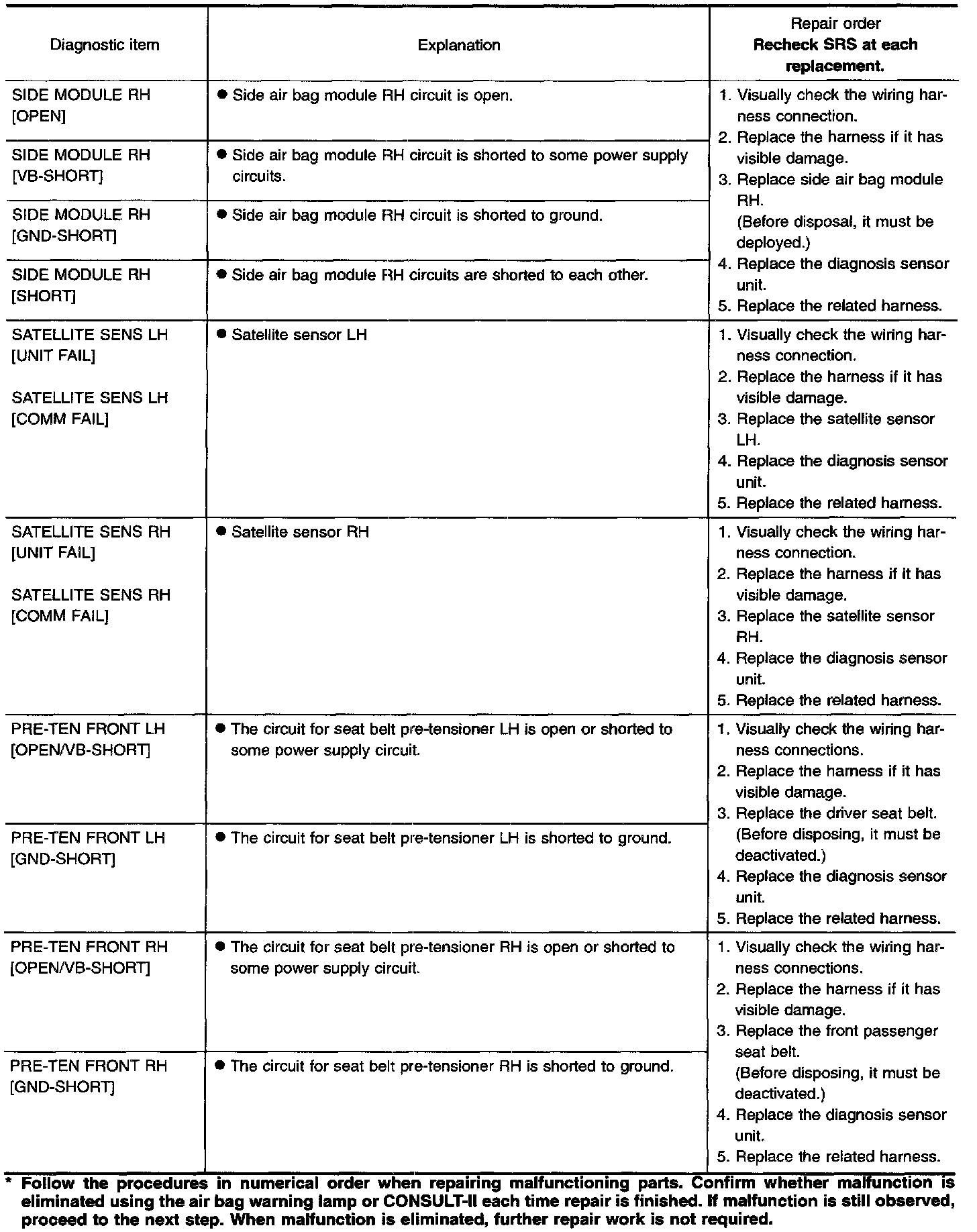

Consult-II Diagnostic Code Chart ("Self-Diag [Current]") Part 3:
