Consult-II Inspection Procedure

1. Turn ignition switch OFF.
2. Insert NATS program card into CONSULT-II.
Program card
NATS

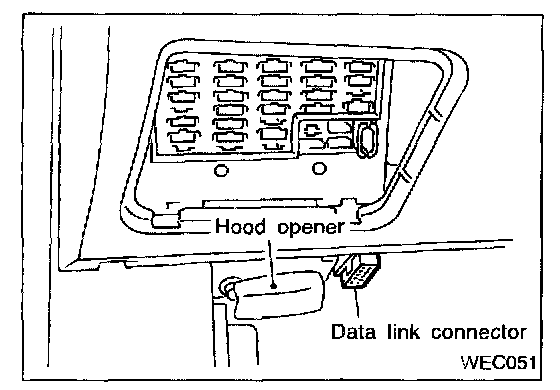

3. Connect "CONSULT-II" to data link connector for CONSULT-II.
4. Turn ignition switch ON.

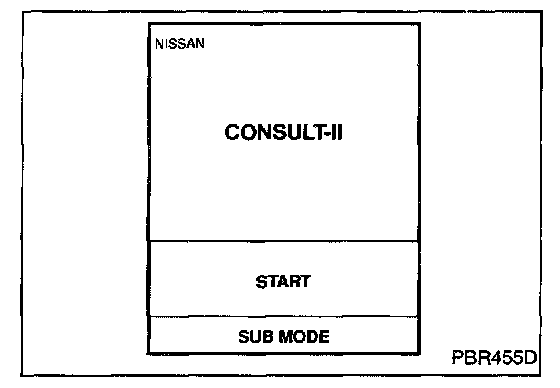

5. Touch "START".

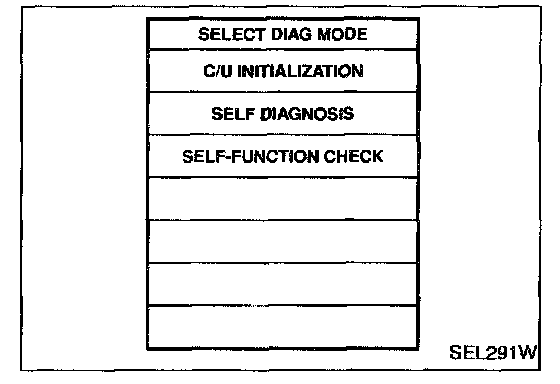

6. Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II, IVIS/NVIS.
