QG18DE (Calif. CA Model) & SR20DE

Trouble Diagnosis For Power Supply

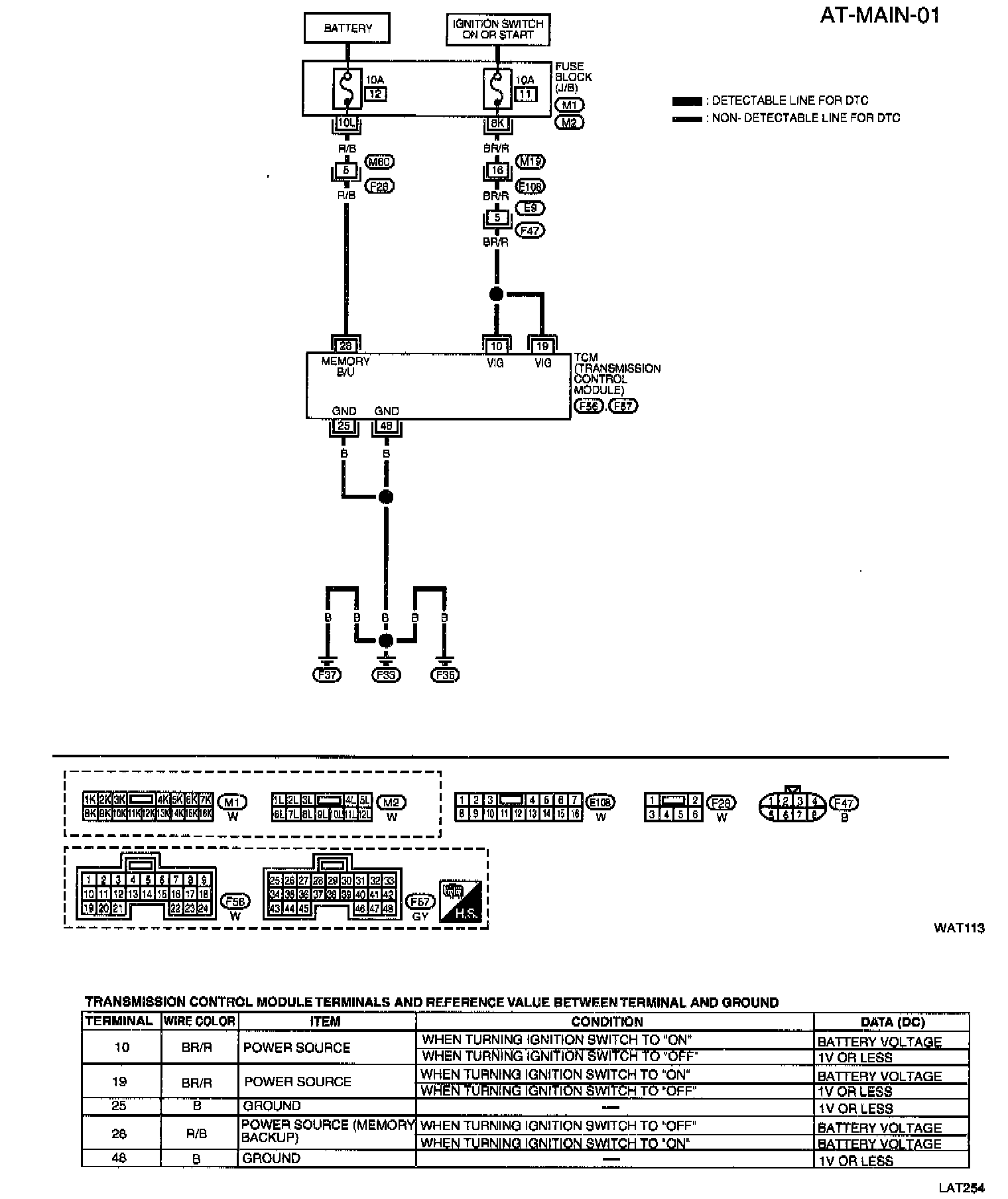

Wiring Diagram

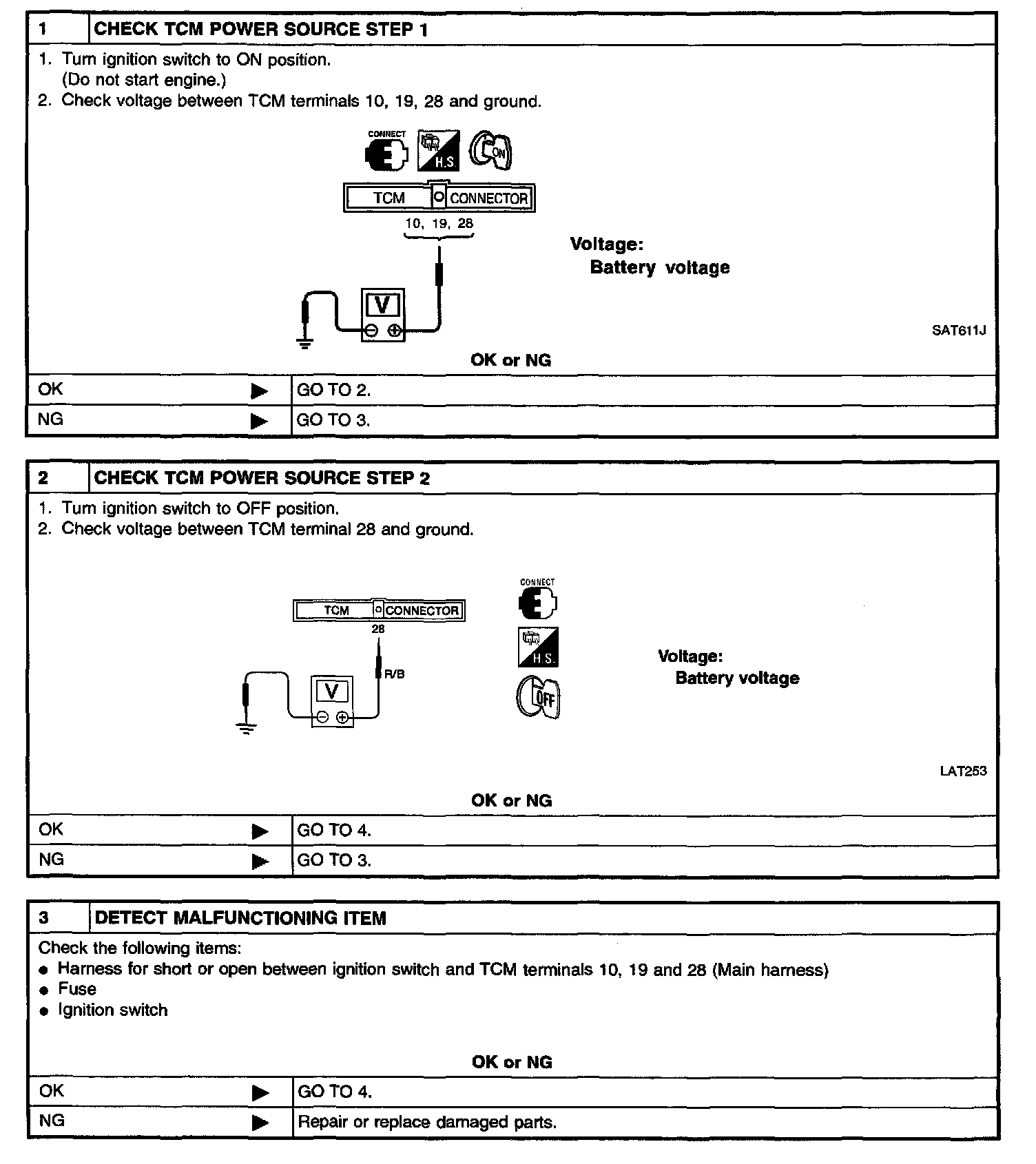

Steps 1 - 3:

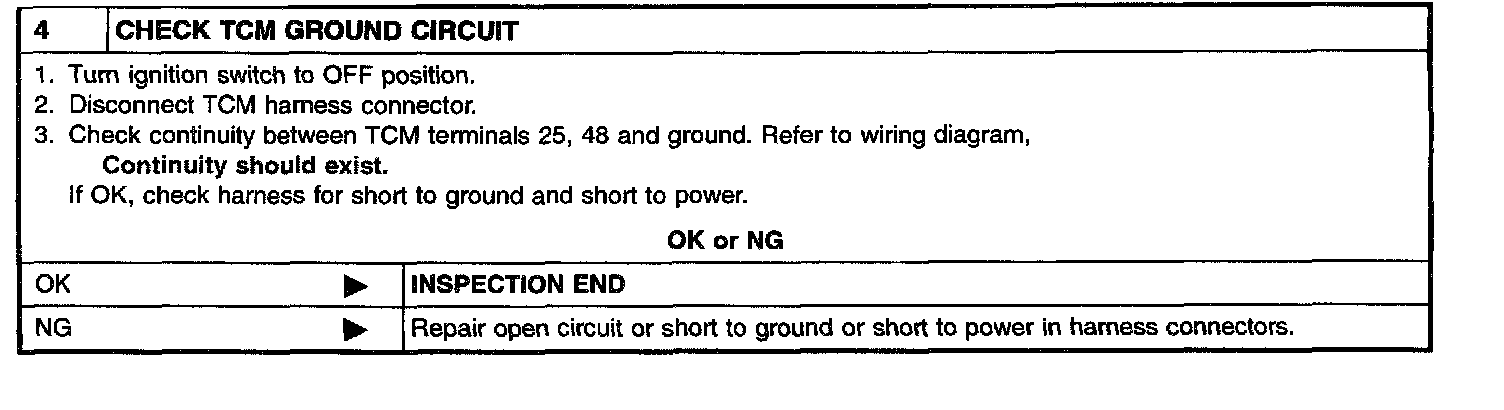

Step 4:




Diagnostic Procedure
