Transaxle Case

Transaxle Case

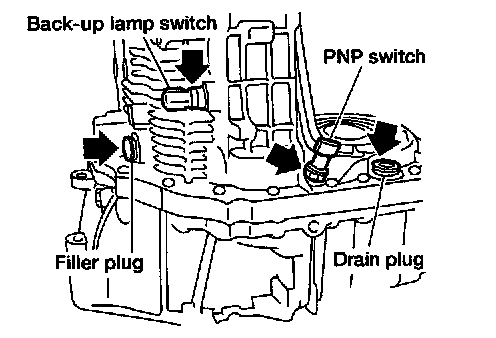

1. Remove back-up lamp switch, PNP switch, drain plug, and filler plug from transaxle case.

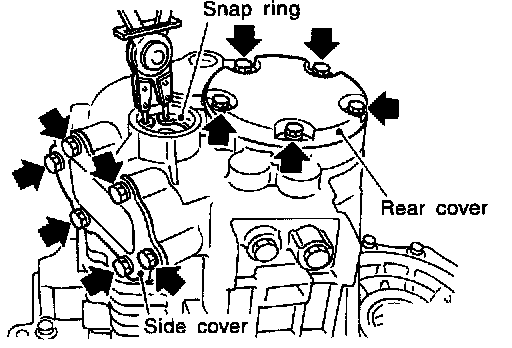

2. Remove snap rings from reverse idler shaft.
3. Remove side cover and rear cover from case.
4. Remove O-ring and mainshaft bearing adjusting shim.





5. Remove reverse idler gear shaft.

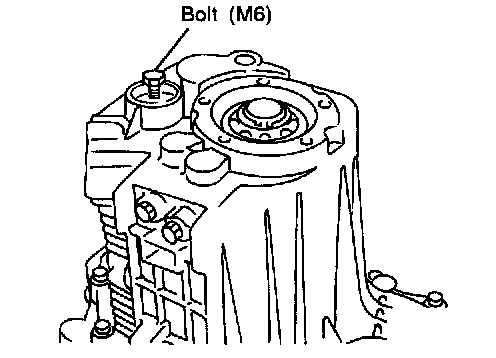

a. Attach bolt (M6) to thread of reverse idler gear shaft end.
b. Pull out the attached bolt, and remove reverse idler gear shaft from case.
6. Remove reverse idler gear, thrust washer (front, rear), and bearing from case.

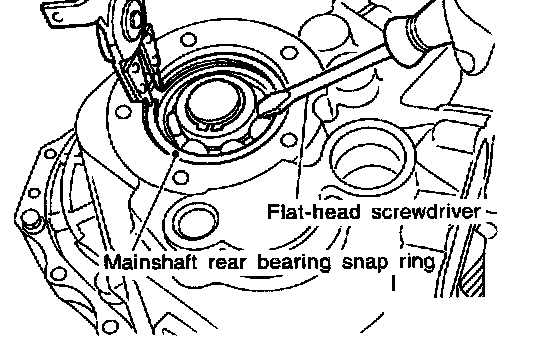

7. Remove snap ring of mainshaft bearing from case.

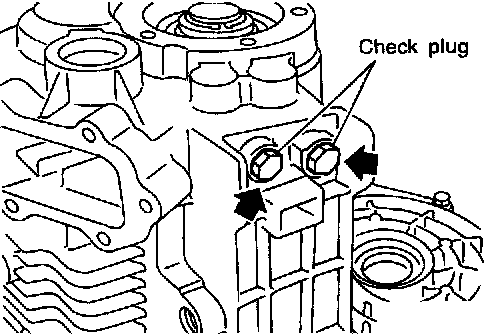

8. Remove check plugs, springs, and check balls from case.

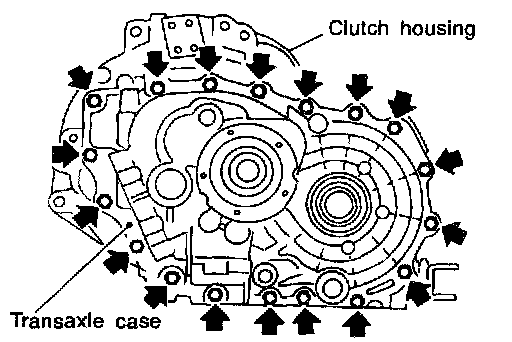

9. Remove mounting bolts.
10. Remove input shaft rear bearing adjusting shim from transaxle case.

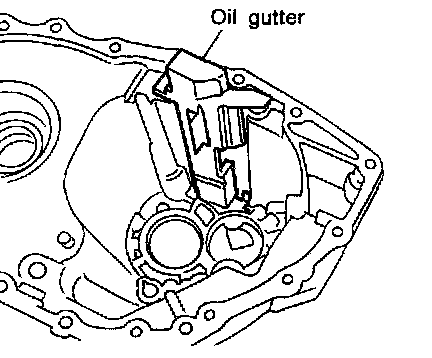

11. Remove oil gutter from case.

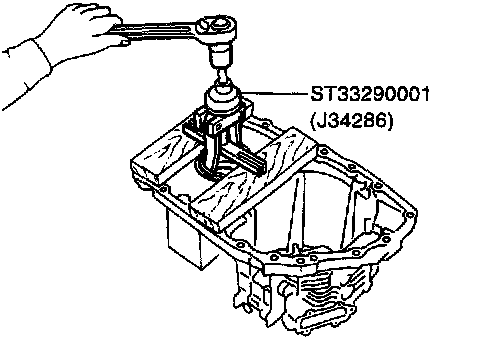

12. Remove differential side bearing outer race and adjusting shim from case using Tool.





13. Remove differential oil seal from case using Tool.

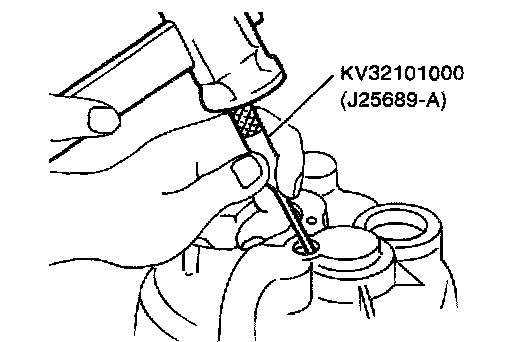

14. Remove welch plugs from case using Tool.
